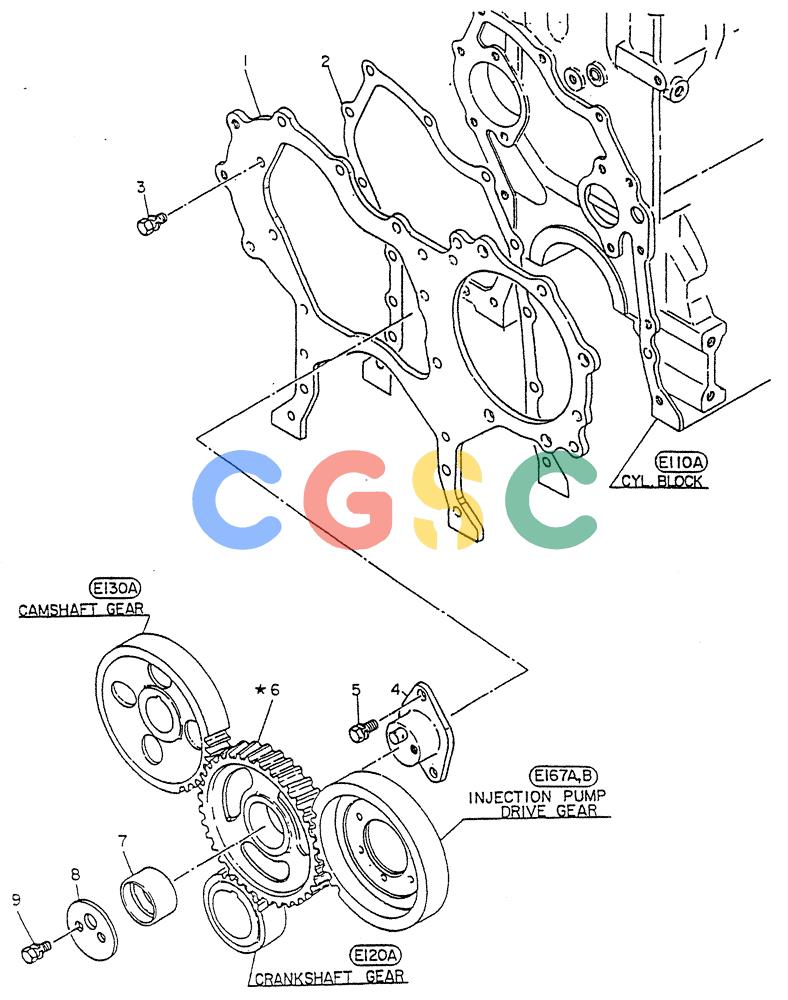

神钢零件查询(FD6(T)14) - NISSAN DIESEL ENGINE ASN 050001 - LK400 & LK500A (1/06-12/06) (01-008) - GEAR TRAIN Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
769 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | VG13032Z5501 | [1] | PLATE-FRONT | |
| 2. | VG13037Z5500 | [1] | GASKET-FR PLATE | |
| 3. | VG0811082062 | [4] | BOLT | KOBBOLT,W/WASHER |
| 4. | VG13016Z5500 | [1] | SHAFT,IDLER SHAFT-IDLER | SHAFT,IDLER SHAFT-IDLER |
| 5. | VG0112500044 | [2] | BOLT-U.B.S., Start Year: 01-OCT-84 | |
| 6. | VG0808081610 | [1] | BOLT-U.B.S | |
| 6-7. | VG13012J2000 | [1] | DRIVEN GEAR | KOBGEAR ASSY-IDLER |
| 7. | VG13015J2000 | [1] | BUSHING | KOBBUSHING-GEAR |
| 8. | VG13011Z5001 | [1] | SIDE PLATE | KOBPLATE-IDLER GEAR |
| 9. | VG0812081628 | [2] | BOLT, W/WASHER, Start Year: 01-OCT-84 | |
| 9. | VG0811081662 | [2] | BOLT BOLT, W/WASHER | BOLT BOLT, W/WASHER |
