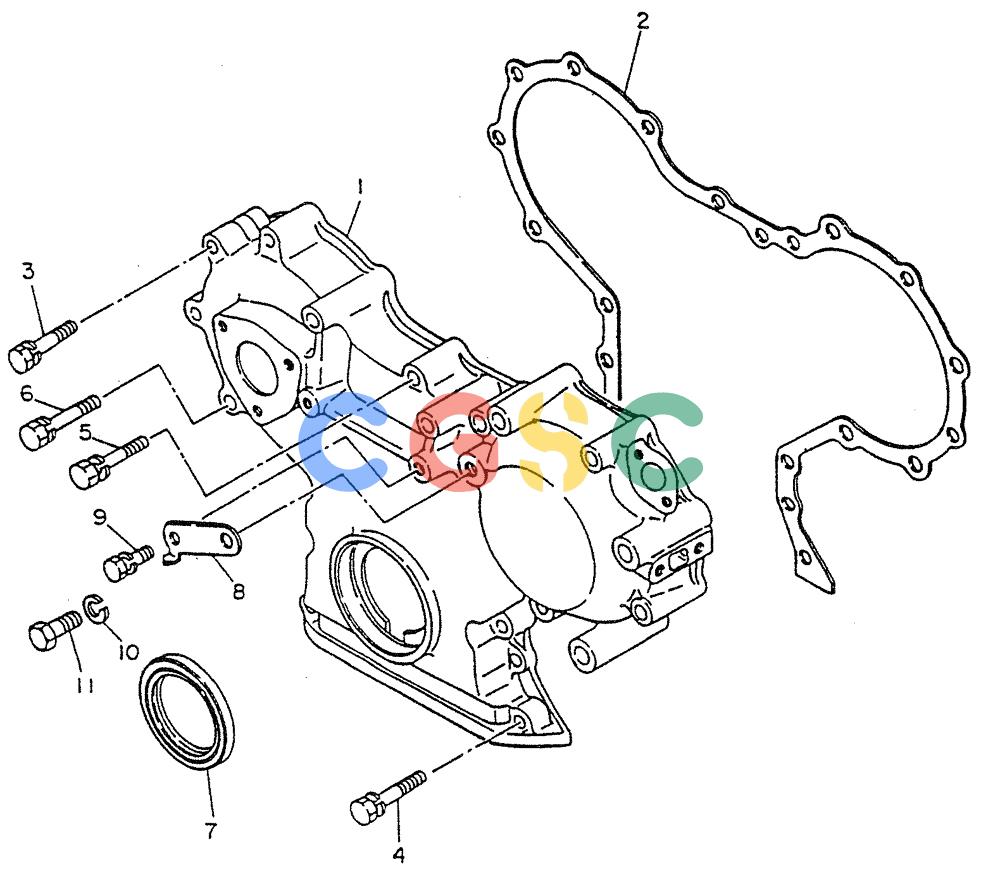

神钢零件查询(FD6(T)14) - NISSAN DIESEL ENGINE ASN 050001 - LK400 & LK500A (1/06-12/06) (01-009) - COVER-FRONT Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
612 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | VG13034Z5504 | [1] | COVER | KOBCASE-TIMING |
| 2. | VG13041Z5501 | [1] | GASKET | KOBGASKET-GEAR CASE |
| 3. | VG08110Z5001 | [5] | BOLT, W/WASHER | |
| 4. | VG0811084562 | [5] | BOLT BOLT, W/WASHER,FOR A2 ONLY | BOLT BOLT, W/WASHER,FOR A2 ONLY |
| 5. | VG0811086062 | [2] | BOLT BOLT, W/WASHER,FOR A2 ONLY | BOLT BOLT, W/WASHER,FOR A2 ONLY |
| 6. | VG0812085528 | [2] | BOLT, W/WASHER,FOR A2 ONLY | |
| 7. | VG12278Z5500 | [1] | SEAL | KOBSEAL-OIL |
| 8. | VG13045L9200 | [1] | POINTER,FOR A2 ONLY | |
| 9. | VG0811081662 | [1] | BOLT BOLT, W/WASHER,FOR A2 ONLY | BOLT BOLT, W/WASHER,FOR A2 ONLY |
| 10. | VG0891514010 | [1] | WASHER WASHER-SPRING,FOR A2 ONLY | WASHER WASHER-SPRING,FOR A2 ONLY |
| 11. | VG0811101610 | [1] | BOLT,FOR A2 ONLY | |
