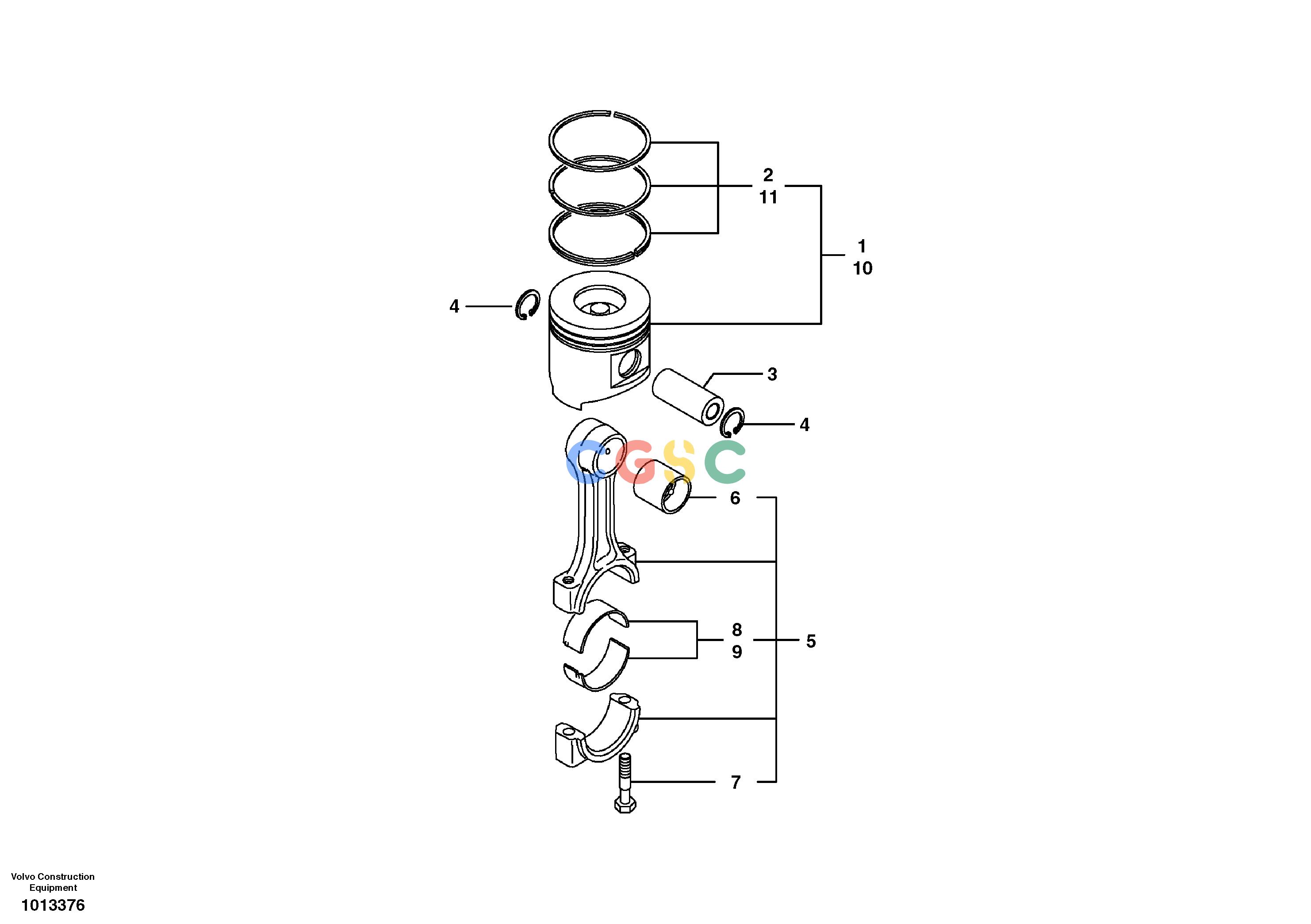

沃尔沃零件查询ECR88 Connecting rod and pistonS/N 10001-140108279041-8279042NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
947 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE14528162
|
[1] |
Piston
|
|
| 2. |
VOE17218531
|
[4] |
Piston Ring Kit
|
|
| 3. |
VOE11714797
|
[4] |
Gudgeon pin
|
|
| 4. |
VOE11714798
|
[8] |
Lock ring
|
|
| 5. |
VOE11714799
|
[4] |
Connecting rod
|
|
| 6. |
VOE11714800
|
[1] |
Bushing
|
|
| 7. |
VOE11714801
|
[2] |
Screw
|
|
| 8. |
VOE15057777
|
[1] |
Big-end bearing kit
|
|
| 9. |
VOE11714803
|
[4] |
Piston Bearing
|
0.25 U SZ
|
| 10. |
VOE14528163
|
[4] |
Piston
|
0.25 O SZ
|
| 11. |
VOE11714804
|
[4] |
Piston
|
0.25 O SZ
|
