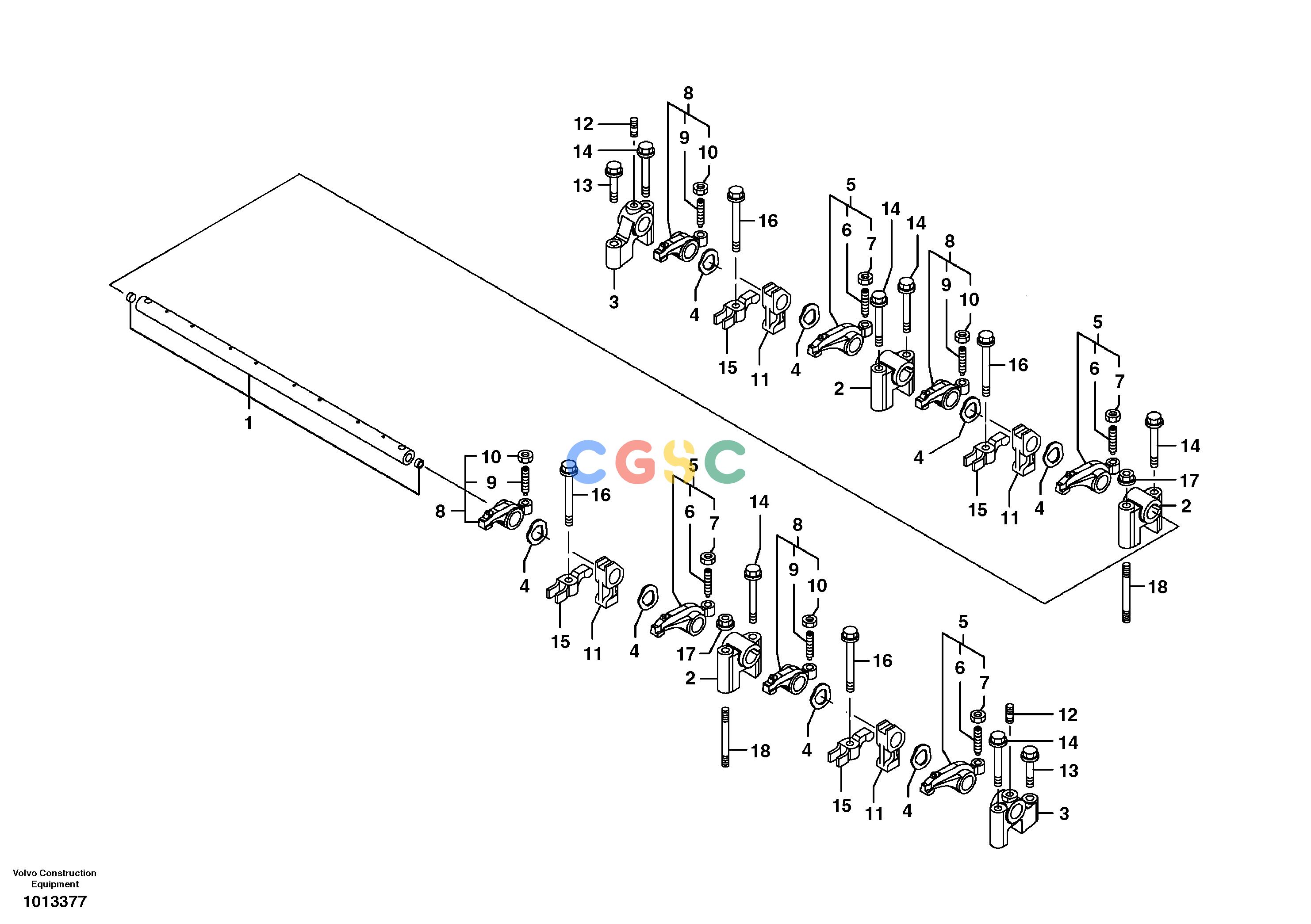

沃尔沃零件查询ECR88 Rocker armS/N 10001-140108279041-8279042NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
185 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
VOE14525390
|
[1] |
Valve
|
|
| 1. |
VOE14521535
|
[1] |
Rocker arm
|
|
| 2. |
VOE14521536
|
[3] |
Support
|
|
| 3. |
VOE14521537
|
[2] |
Support
|
|
| 4. |
VOE14521538
|
[8] |
Spring washer
|
|
| 5. |
VOE14521539
|
[4] |
Rocker arm
|
|
| 6. |
SA8210-03660
|
[1] |
Screw
|
|
| 7. |
VOE11714380
|
[1] |
Nut
|
|
| 8. |
VOE14521540
|
[4] |
Rocker arm
|
|
| 9. |
SA8210-03660
|
[1] |
Screw
|
|
| 10. |
VOE11714380
|
[1] |
Nut
|
|
| 11. |
VOE14525391
|
[4] |
Retainer
|
|
| 12. |
VOE14521542
|
[2] |
Bolt
|
|
| 13. |
VOE11714487
|
[2] |
Bolt
|
|
| 14. |
VOE11714494
|
[6] |
Bolt
|
|
| 15. |
VOE14525392
|
[4] |
Retainer
|
|
| 16. |
VOE14525393
|
[4] |
Flange screw
|
|
| 17. |
VOE14521543
|
[2] |
Nut
|
|
| 18. |
VOE14525389
|
[2] |
Bolt
|
|
