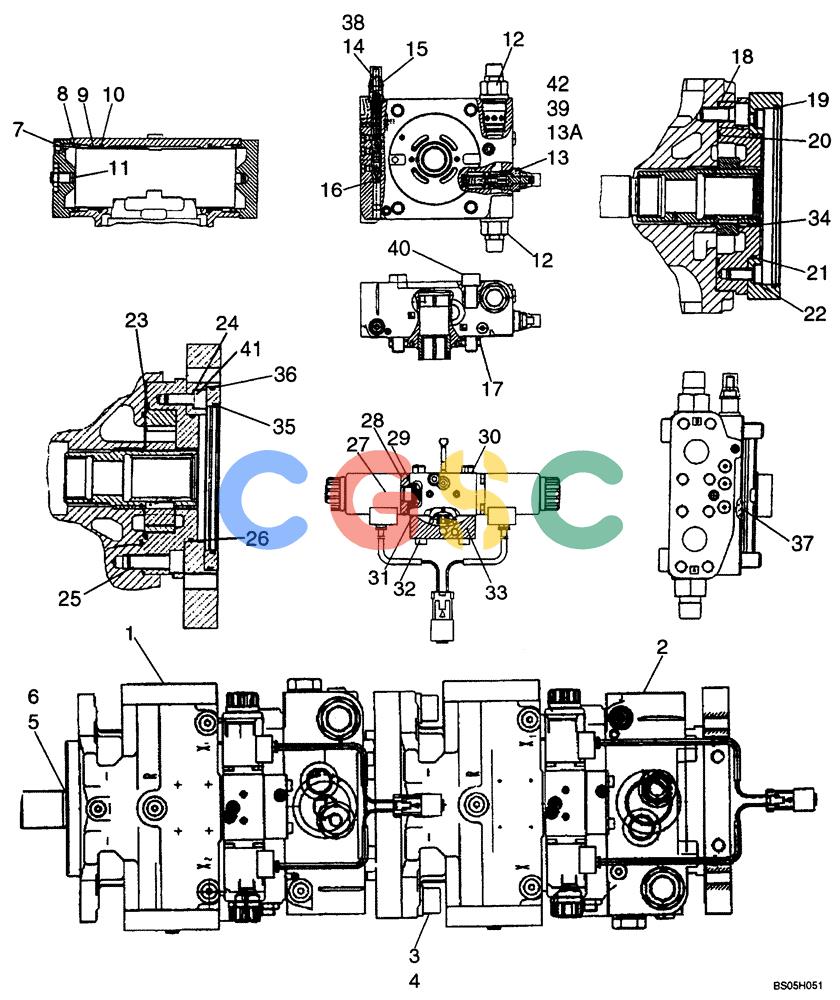

| . . | 87331813 | [1] | PUMP | BURPump, Tandem, Combination, Incl. 1 - 41; Models With PTO |
| . . | 87331813R | [1] | REMAN-HYDROSTATIC PUMP | BURReman Pump, Hydrostatic For Models With PTO |
| . . | 87331813C | [1] | CORE-HYDROSTATIC PUMP | BURReturn Number |
| 1. | NSS | [1] | NOT SERVICED SEPARATELY | CONPump, Shaft End |
| 3. | 864-16035 | [2] | HEX SOC SCREW,M16 x 35mm, Cl 8.8 | CASSocket Head |
| 4. | 87441429 | [2] | WASHER | BUR |
| 5. | 87441419 | [2] | SEAL | CASShaft, Front and Rear Pumps |
| 6. | 87441406 | [4] | RING | BURFront and Rear Pumps |
| 7. | 863-6020 | [16] | HEX SOC SCREW,M6 x 20mm, Cl 12.9 | CASFront and Rear Pumps Superseded by part number: 86512135 |
| 8. | 238-5148 | [4] | O-RING,0.103" Thk x 2.737" ID, -148, Cl 5, 75 Duro | CAS Superseded by part number: 14460680 |
| 9. | 87441417 | [4] | RING | BURGuide; Front and Rear Pumps |
| 10. | 87441416 | [4] | RING | BURSpecial; Front and Rear Pumps |
| 11. | 238-6012 | [2] | O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro | CASPositioning Piston Rod; Front and Rear Pumps Superseded by part number: 9993141 |
| 12. | 87441421 | [4] | VALVE, PRESSURE RELI | BUREF Relief; To Service External Seals, Order 87441415 Seal Kit; Front and Rear Pumps |
| . . | 87441415 | [1] | SEAL KIT | BURSeal Kit, Charge Relief Seal, Not Illustrated |
| 13. | 87441430 | [1] | PRESSURE RELIEF VALVE | BURPressure Relief; Component Parts Not Serviced Separately; Includes (1) 87441428 Seal Lock Nut; Front Shaft End Pump |
| 13A. | 87441405 | [1] | PRESSURE RELIEF VALVE | BURPressure Relief; Component Parts Not Serviced Separately; Includes (1) 87441404 Locking Screw; Rear Pump |
| 14. | 87441431 | [1] | PRESSURE RELIEF VALVE | BURPressure Overide; Incl. Ref 15, 16; Front and Rear Pumps |
| 15. | 87441427 | [1] | LOCK NUT | BURSeal Lock Nut |
| 16. | 238-6010 | [1] | O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro | CAS Superseded by part number: 86512844 |
| 17. | 238-5157 | [1] | O-RING,0.103" Thk x 4.487" ID, -157, Cl 5, 75 Duro | CASFront and Rear Pumps Superseded by part number: 86977780 |
| 18. | 864-10025 | [4] | HEX SOC SCREW,M10 x 25mm, Cl 8.8 | CASFront Pump Support Plate Superseded by part number: 120052 |
| 19. | 238-5159 | [1] | O-RING,0.103" Thk x 4.987" ID, -159, Cl 5, 75 Duro | CASFront Pump Support Plate Superseded by part number: 175156 |
| 20. | 238-5153 | [1] | O-RING,0.103" Thk x 3.487" ID, -153, Cl 5, 75 Duro | IHCharge Pump Wear Plate Superseded by part number: 72186260, 259930 |
| 21. | 238-5152 | [1] | O-RING,0.103" Thk x 3.237" ID, -152, Cl 5, 75 Duro | IH Superseded by part number: 14461080 |
| 22. | 87441426 | [8] | RING | BURSeal; Front Pump Support Plate |
| 25. | 864-10030 | [8] | HEX SOC SCREW,M10 x 30mm, Cl 8.8 | IHRear Pump Support Plate Superseded by part number: 47109263, 14420221 |
| . . | 87316133 | [2] | MODULE | BURControl; Tandem Pump; Incl. 28 - 33 |
| 27. | 87441418 | [2] | SOLENOID VALVE | BURProportional Solenoid, Control Module; Front and Rear Pumps |
| 28. | 87441402 | [2] | BASE | BURSolenoid Mounting; Front and Rear Pumps |
| 29. | 238-6121 | [2] | O-RING,0.103" Thk x 1.049" ID, -121, Cl 6, 90 Duro | CAS Superseded by part number: 511524 |
| 30. | 87444198 | [1] | GASKET | BURSolenoid Base; Front and Rear Pumps |
| 31. | 87441403 | [1] | GASKET | BURCover; Front and Rear Pumps |
| 32. | 87441423 | [4] | BOLT,Skt Hd, M6 x 65mm, Gr 8.8 | BURSocket Head; Front and Rear Pumps |
| 33. | 87441401 | [1] | VALVE COVER | BURSolenoid Control Module; Front and Rear Pumps |
| 34. | 238-5031 | [2] | O-RING,0.07" Thk x 1.739" ID, -31, Cl 5, 75 Duro | CAS Superseded by part number: 70923933 |
| 35. | 238-5155 | [1] | O-RING,0.103" Thk x 3.987" ID, -155, Cl 5, 75 Duro | CAS Superseded by part number: 9828498 |
| 36. | 238-5158 | [1] | O-RING,0.103" Thk x 4.737" ID, -158, Cl 5, 75 Duro | CAS Superseded by part number: 274336 |
| 37. | 238-6014 | [2] | O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro | CAS Superseded by part number: 9992298 |
| 38. | 238-6112 | [1] | O-RING,0.103" Thk x 0.487" ID, -112, Cl 6, 90 Duro | CAS Superseded by part number: 272344 |
| 39. | 238-6119 | [1] | O-RING,0.103" Thk x 0.924" ID, -119, Cl 6, 90 Duro | CAS Superseded by part number: 271913 |
| 40. | 863-16090 | [4] | HEX SOC SCREW,M16 x 90mm, Cl 12.9 | SUM Superseded by part number: 2465671 |
| 41. | 864-8016 | [8] | HEX SOC SCREW,M8 x 16mm, Cl 8.8 | CAS Superseded by part number: 14306221 |
| . . | 238-6123 | [1] | O-RING,0.103" Thk x 1.174" ID, -123, Cl 6, 90 Duro | CAS Superseded by part number: 218774 |
| . . | 414180A1 | [1] | HYD PUMP REPAIR KIT | BURIncl. 42 - 46; Not Illustrated |
| 45. | 87452073 | [1] | | |
| 46. | 87452750 | [8] | BOLT,M8 x 16mm, Gr 8.8 | CAS |
