纽荷兰零件查询(D95B) - CRAWLER DOZER TIER 3 (3/08-) (04-01) - STARTER New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
504 次

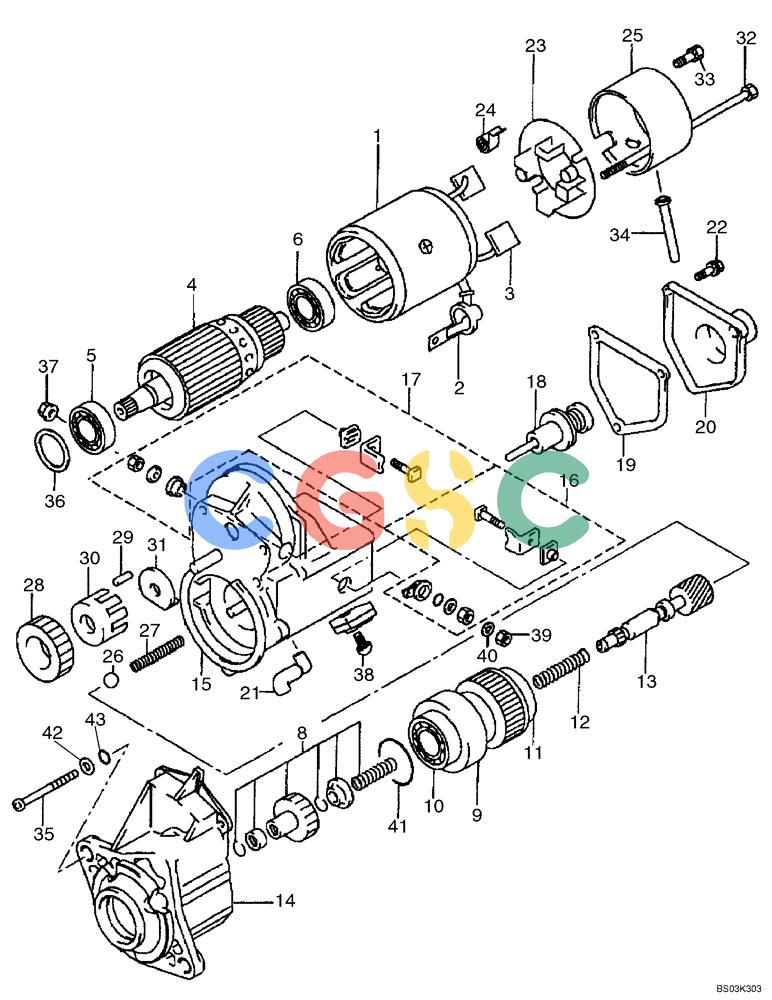

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 86992395 | [1] | STARTER MOTOR,12V, 2.7kW | TOR12 V, 2.7 kw; Incl. Ref 1 - 43 |
| . . | 86992395R | [1] | REMAN-STARTER,12V, 2.7kW | TORReman for New PN 86992395 |
| . . | 86992395C | [1] | CORE-STARTER,12V, 2.7kW | TORReturn Number |
| 1. | 87438992 | [1] | STATOR | BURHousing, Yoke; Incl. Ref 2, 3 |
| 2. | 87438993 | [1] | COVER | BURRing |
| 3. | 87438925 | [2] | COMMUTATOR BRUSH | BURKit |
| 4. | 87438926 | [1] | ARMATURE | BURIncl. Ref 5, 6 |
| 5. | 87438927 | [1] | BALL BEARING | BUR35 mm OD |
| 6. | 87438928 | [1] | BALL BEARING | BUR30 mm OD |
| . . | 87438994 | [1] | CLUTCH ASSEMBLY | BURIncl. Ref 8 - 13 |
| 8. | 87438929 | [1] | STARTER MTR REPAIR KIT | BURClutch Pinion Kit |
| 9. | 87438930 | [1] | STARTER MTR REPAIR KIT | BURClutch Assembly; Incl. Ref 10, 11 |
| 10. | 87438931 | [1] | BALL BEARING | BUR47 mm OD |
| 11. | 87438932 | [1] | BALL BEARING | BUR47 mm OD |
| 12. | 87438933 | [1] | COMPRESSION SPRING | BUR |
| 13. | 87438935 | [1] | SHAFT | BURClutch |
| 14. | 87438937 | [1] | HOUSING | BUR |
| 15. | 87438940 | [1] | SOLENOID | BURMagnetic Switch Assembly; Incl. Ref 16 - 22 |
| 16. | 87438941 | [1] | STARTER MTR REPAIR KIT | BURTerminal M |
| 17. | 87438942 | [1] | STARTER MTR REPAIR KIT | BURTerminal C |
| 18. | 87438944 | [1] | PLUNGER ASSY. | BUR |
| 19. | 87438946 | [1] | GASKET | BURSolenoid Switch |
| 20. | 87438948 | [1] | COVER | BURSolenoid |
| 21. | 87438995 | [1] | BUSHING | BURDrain |
| 22. | 87438950 | [3] | BOLT | BURBolt With Washer; M5 x 14 |
| 23. | 87438996 | [1] | HOLDER | BURBrush; Incl. Ref 24 |
| 24. | 87438997 | [4] | SPRING | BURBrush Tension |
| 25. | 87438999 | [1] | FRAME | BURHousing |
| 26. | 87439000 | [1] | BALL | BUR |
| 27. | 87439001 | [1] | COMPRESSION SPRING | BUR |
| 28. | 87439002 | [1] | GEAR | BUR |
| 29. | 87439003 | [5] | ROLLER | BURClutch |
| 30. | 87439004 | [1] | RETAINER | BUR |
| 31. | 87439005 | [1] | RETAINER | BURSnap |
| 32. | 87438951 | [2] | BOLT | BURM6 x 182 |
| 33. | 87439006 | [2] | CAPTIVE WASHER SCREW,Phil Pan Hd, M5 x 9.40mm | BURBolt With Washer; M5 x 9.4 |
| 34. | 87439007 | [1] | BUSHING | BURDrain |
| 35. | 87439008 | [3] | SCREW,Sl Pan Hd, M6 x 70mm | BURAdapter Screw, M6 x 70 |
| 36. | 87438954 | [1] | WASHER | BURFelt |
| 37. | 87439009 | [1] | NUT | BURM10 |
| 38. | 87438956 | [1] | BOLT | BURM5 x 10 |
| 39. | 100016 | [1] | NUT,M10 x 1.5, Cl 8 | NH |
| 40. | 140028 | [1] | WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk | NH |
| 41. | 87439010 | [1] | SEAL,2.4mm Thk x 47.2mm ID | BUR |
| 42. | 87439061 | [3] | WASHER | BUR9/32 x 1/2 x 3/64 |
| 43. | 87439011 | [3] | O-RING | BUR4.8 ID |
| . . | 87475864 | [1] | MOTOR, STARTER INSTALL HEAVY DUTY, OPTIONAL; Not Serviced Order Components; Not Illustrated See Figure 04-23 | |
| . . | 87577368 | [1] | STARTER MOTOR,3 hole | BELHEAVY, 12V 4.2 kw OPTIONAL |
| . . | R54620 | [3] | BOLT | CAS |
| . . | 82012426 | [1] | KIT | IMOSolenoid Assy. |
