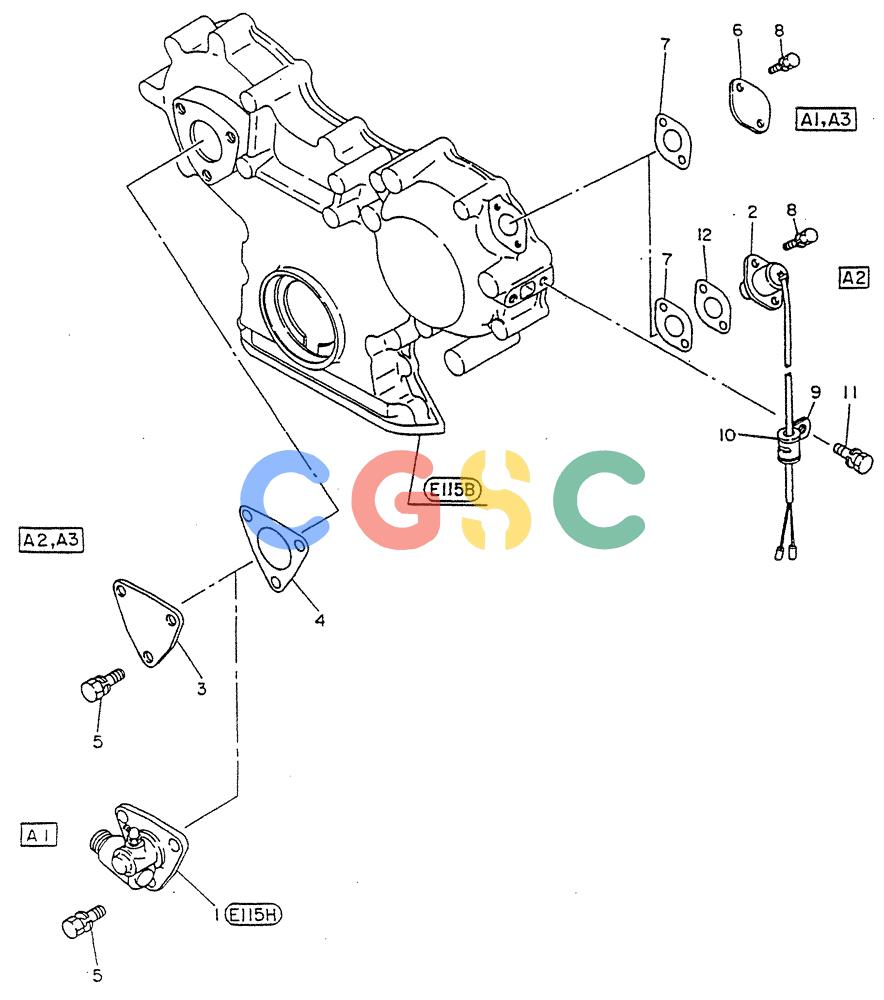

神钢零件查询(FD6(T)14) - NISSAN DIESEL ENGINE ASN 050001 - LK400 & LK500A (1/06-12/06) (01-010) - DRIVER-TACHOMETER (FITTING PARTS) Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
407 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | VG25175Z5506 | [1] | DRIVE TACHOMETER METER ASSY-DRIVER (INNER PARTS E115H),FOR A1 ONLY | DRIVE TACHOMETER METER ASSY-DRIVER (INNER PARTS E115H),FOR A1 ONLY |
| 2. | VG25066Z5500 | [1] | SENSOR-UNIT,FOR A2 ONLY, Start Year: 01-SEP-83 | |
| 2. | VG25068Y7500 | [1] | SENSOR UNIT,FOR A2 ONLY | |
| 3. | VG13069Z5501 | [1] | COVER,FOR A2,A3 ONLY | |
| 4. | VG13068Z5500 | [1] | GASKET | KOBGASKET,FOR A1,A3 ONLY |
| 5. | VG0811082062 | [3] | BOLT | KOBBOLT, W/WASHER,FOR A1 ONLY, Start Year: 01-AUG-84 |
| 5. | VG0811082502 | [3] | BOLT,W/WASHER,FOR A1 ONLY | |
| 6. | VG13036J2001 | [1] | COVER COVER-FLANGE,FOR A1,A3 ONLY | COVER COVER-FLANGE,FOR A1,A3 ONLY |
| 7. | VG2107309901 | [1] | GASKET-FLANGE, Start Year: 01-OCT-84 | |
| 7. | VG13044J2001 | [1] | GASKET GASKET-FLANGE | GASKET GASKET-FLANGE |
| 8. | VG0811061262 | [2] | SCREW | KOBBOLT,W/WASHER |
| 9. | VG0155110084 | [1] | CLIP,FOR A2 ONLY, Start Year: 01-SEP-83 | |
| 9. | VG0155110144 | [1] | CLIP,FOR A2 ONLY | |
| 10. | VG0156100044 | [1] | INSERT-RUBBER FOR CABLE,FOR A2 ONLY, Start Year: 01-SEP-83 | |
| 10. | VG0156100104 | [1] | INSERT-RUBBER FOR CABLE,FOR A2 ONLY | |
| 11. | VG0811081662 | [1] | BOLT BOLT, W/WASHER,FOR A2 ONLY | BOLT BOLT, W/WASHER,FOR A2 ONLY |
| 12. | VG25069Z5000 | [1] | SHIM, T=0.2,FOR A2 ONLY, Start Year: 01-SEP-83 | |
| 12. | VG25069Z5001 | [1] | SHIM, T=0.5,FOR A2 ONLY, Start Year: 01-SEP-83 | |
