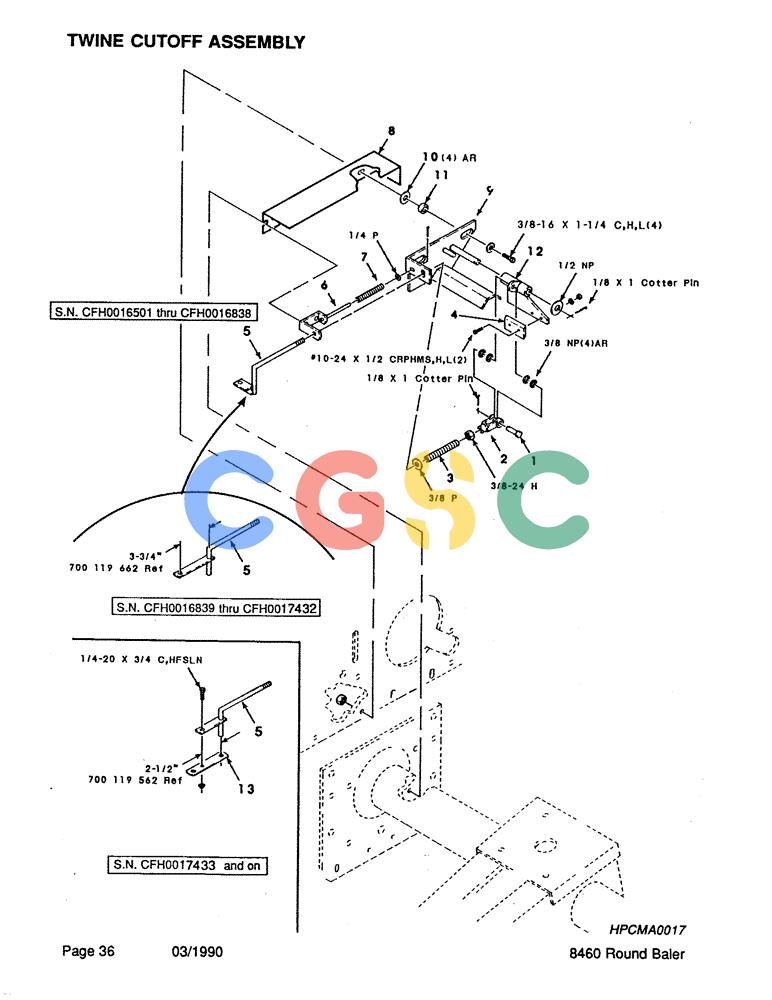

凯斯零件查询(8460) - CASE IH ROUND BALER (BEFORE S/N CFH0057418) (1/88-12/93) (036) - TWINE CUTOFF ASSEMBLY Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
354 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
063586
|
[1] |
CLEVIS PIN
|
IH
3/8 x 1-1/8 CLEVIS PIN Superseded by part number: 9838826
|
| 2. |
213-126
|
[1] |
ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"
|
CAS
CLEVIS - 3/8-24 thread Superseded by part number: 86625043, 231-126
|
| 3. |
700707199
|
[1] |
SPRING
|
IH
- compression
|
| 4. |
700106962
|
[1] |
KNIFE
|
L
- twine
|
| 5. |
700107998
|
[1] |
ROD
|
CAS
- handle (S.N. CFH0016501 thru CFH0016838)
|
| . . |
700119662
|
[2] |
ROD
|
CAS
- handle (S.N. CFH0016839 and on) sub. 700122562 rod, 700122554 mounting and 1/4-20 x 3/4 C, HFSLN Superseded by part number: 9707580, 700122562, 523282, 700122554
|
| . . |
700122562
|
[1] |
ROD
|
CAS
-handle (S.N. CFH0046839 thru CFH0017432)
|
| 6. |
700107970
|
[1] |
SUPPORT
|
CAS
- rod
|
| 7. |
700707200
|
[1] |
COMPRESSION SPRING
|
L
SPRING - compression
|
| 8. |
700107972
|
[1] |
SHIELD
|
HFI
- cutoff, twine
|
| 9. |
700119127
|
[1] |
SUPPORT
|
HFI
- cutoff
|
| 10. |
7705734
|
[4] |
WASHER
|
CAS
- fender Superseded by part number: 700710049
|
| 11. |
6212740
|
[2] |
SPACER
|
CAS
|
| 12. |
700119129
|
[1] |
MOUNTING PARTS
|
HFI
MOUNTING - knife
|
| 13. |
700122554
|
[1] |
MOUNTING PARTS
|
CAS
STRAP (S.N. CFH0017433 and on) mating part for the 700122562 rod
|
| . . |
7703457
|
[1] |
HYD CONNECTOR,Hex, 1/4" - 20 x 3/4", Gr 5
|
NNA
1/4-20 x 3/4 C Superseded by part number: 413-412, 413-412, 86516954
|
| . . |
702035
|
[4] |
BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5, Full Thd
|
CAS
3/8-16 x 1-1/4 C
|
| . . |
700700628
|
[2] |
SCREW,Cross Pan Hd, #10-24 x 1/2"
|
CAS
NO. 10-24 x 1/2 CRPHMS Superseded by part number: 340-1108
|
| . . |
495-11041
|
[4] |
WASHER,0.406" ID x 0.812" OD x 0.065" W
|
CAS
3/8 NP Superseded by part number: 87016
|
| . . |
495-11053
|
[1] |
WASHER,1/2", SAE
|
CAS
1/2 NP Superseded by part number: 87364, 72187259
|
