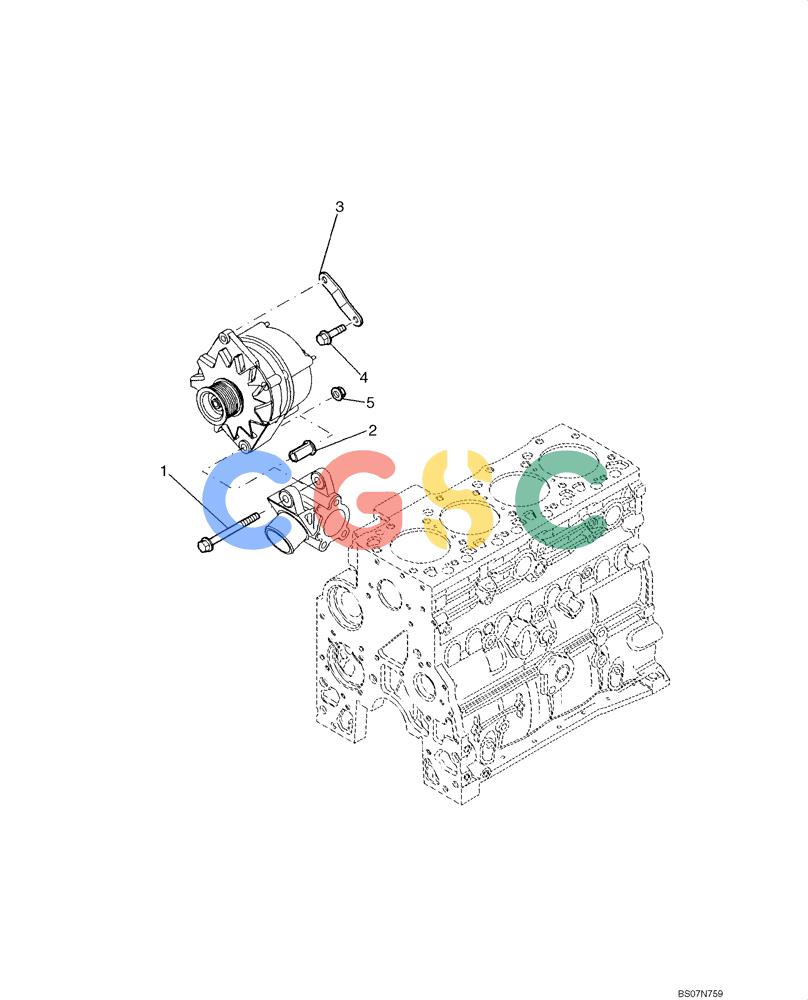

纽荷兰零件查询(D95B) - CRAWLER DOZER TIER 3 (3/08-) (04-02A) - ALTERNATOR - MOUNTING New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
810 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 4895538 | [1] | FLANGE BOLT,Hex, M10 x 1.5 x 120mm | TOR Superseded by part number: 16599025 |
| 2. | 2852181 | [1] | SPACER,10.4mm ID x 22mm OD x 35mm L | TOR Superseded by part number: 504060839 |
| 3. | 2853215 | [1] | BRACKET | TOR Superseded by part number: 504076666 |
| 4. | 4899020 | [1] | FLANGE BOLT,Hex, M8 x 1.25 x 20mm | TORM8 x 1.5, Cl 10 Superseded by part number: 16673635 |
| 5. | 4895166 | [1] | FLANGE NUT,M10, 1.50mm Pitch, Cl 10 | BASM10X1,5 |
