纽荷兰零件查询(D95B) - CRAWLER DOZER TIER 3 (3/08-) (04-02) - ALTERNATOR ASSY New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
170 次

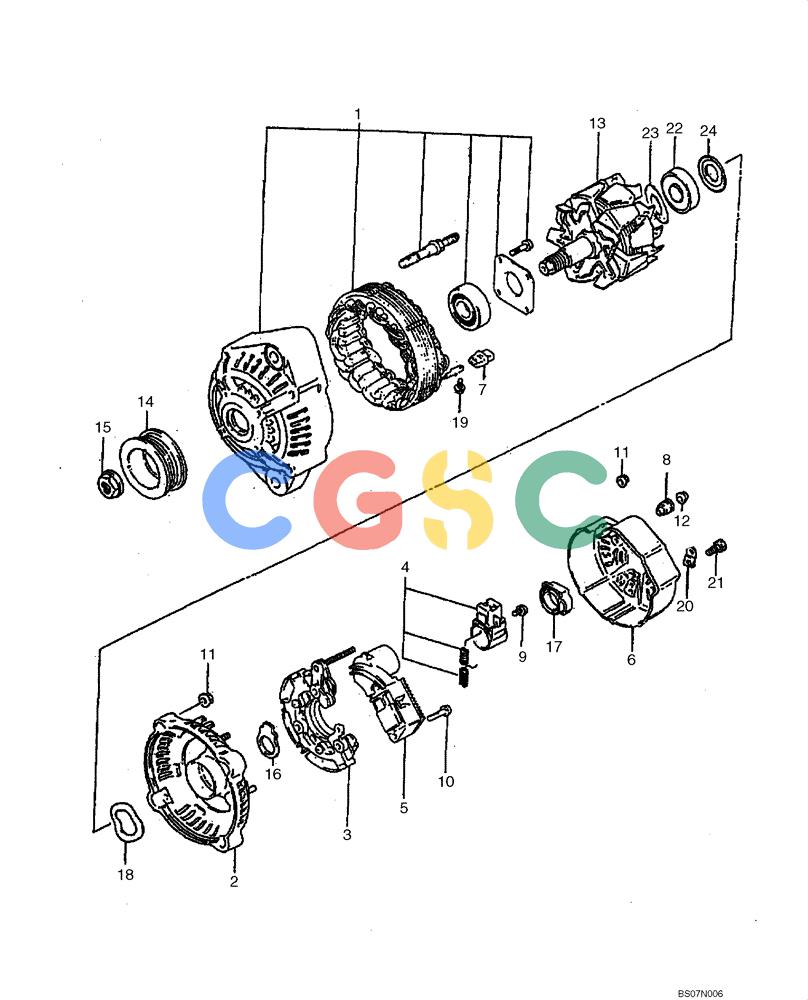

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 87422777 | [1] | ALTERNATOR,12V, 90A, W/ Pulley | IMO12V, 90 amp; Incl. Ref 1 - 24; Connector on 87433543 Engine Harness Attaching to Alternator is (1) 382203A1 3-Pin Plug Connector, (3) 382204A1 Terminal, (3) 382207A1 Seal |
| 1. | 87438960 | [1] | ALTERNATOR,12V, 90A, W/ Pulley | BURFrame Assy, Drive End, Includes Stator |
| 2. | 87438963 | [1] | HOUSING | BUR |
| 3. | 87438965 | [1] | HOLDER | BURRectifier |
| 4. | 87438967 | [1] | HOLDER | BURBrush and Holder |
| 5. | 87438969 | [1] | VOLTAGE REGULATOR | BURRegulator |
| 6. | 87438970 | [1] | REAR COVER | BURCover, Rear |
| 7. | 87438971 | [4] | BUSHING | BURInsulation Bushing |
| 8. | 87438972 | [1] | BUSHING | BURInsulation Bushing |
| 9. | 87438973 | [3] | SCREW | BURScrew |
| 10. | 87438974 | [2] | CAPTIVE WASHER SCREW | BURBolt With Washer |
| 11. | 87438975 | [7] | NUT | BURNut |
| 12. | 87438976 | [1] | NUT | BURNut |
| 13. | 87438977 | [1] | ARMATURE | BURRotor Assy Superseded by part number: 87422777R |
| 14. | 87438978 | [1] | PULLEY,60mm OD | BURPulley |
| 15. | 87438979 | [1] | NUT | BURNut |
| 16. | 87438980 | [1] | SEALING RING | BURSEALRING Seal |
| 17. | 87438981 | [1] | SEALING RING | BURSEALRING Seal |
| 18. | 87438982 | [1] | WASHER | BURWave Washer |
| 19. | 87438983 | [4] | CAPTIVE WASHER SCREW | BURBolt With Washer |
| 20. | 87438984 | [1] | PLATE | BURTerminal Plate |
| 21. | 87438985 | [1] | SCREW | BURScrew |
| 22. | 87438986 | [1] | BALL BEARING | BURBall Bearing |
| 23. | 87438987 | [1] | BEARING COVER | BURCover, Bearing |
| 24. | 87438989 | [1] | BEARING COVER | BURCover, Bearing |
