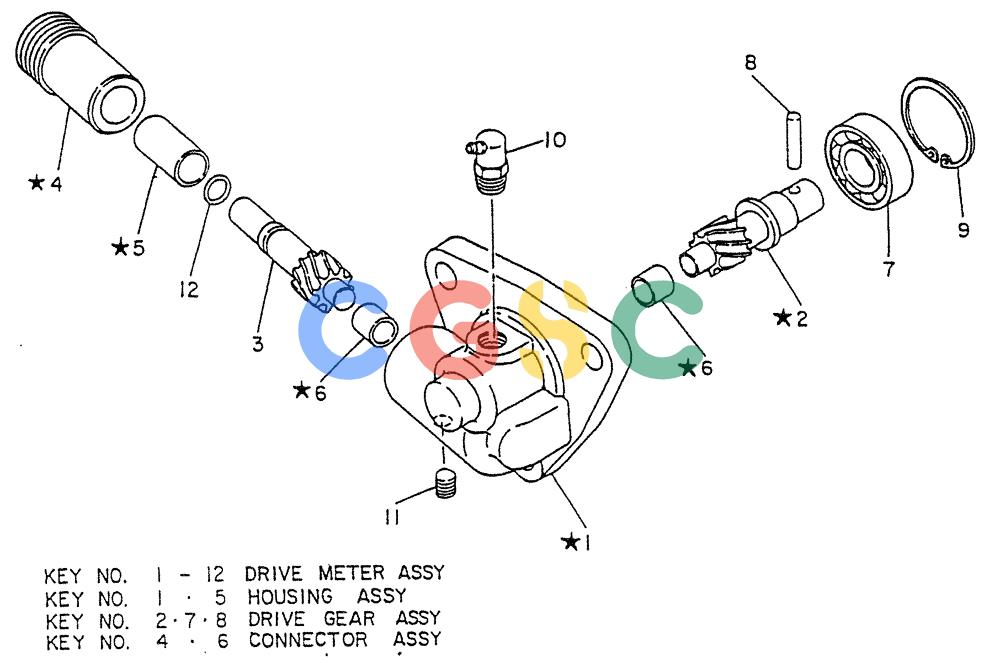

神钢零件查询(FD6(T)14) - NISSAN DIESEL ENGINE ASN 050001 - LK400 & LK500A (1/06-12/06) (01-013) - METER-DRIVE (INNER PARTS) Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
649 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-12. | VG25175Z5506 | [1] | DRIVE TACHOMETER METER-DRIVER | DRIVE TACHOMETER METER-DRIVER |
| 1-5. | VG25186Z9003 | [1] | HOUSING ASSY | |
| 2-7-8. | VG25187Z9005 | [1] | GEAR ASSY-DRIVE | |
| 3. | VG25188Z9003 | [1] | GEAR-DRIVEN | |
| 4-6. | VG25191Z9000 | [1] | CONNECT0R ASSY | |
| 7. | VG0101100254 | [1] | BEARING-BALL | |
| 8. | VG2522190000 | [1] | PIN-DRIVE | |
| 9. | VG0092222800 | [1] | RING-SNAP | |
| 10. | VG0093220100 | [1] | FITTING | KOBGREASE NIPPLE |
| 11. | VG2518499000 | [1] | SET SCREW | |
| 12. | VG2519499001 | [1] | O-RING | |
