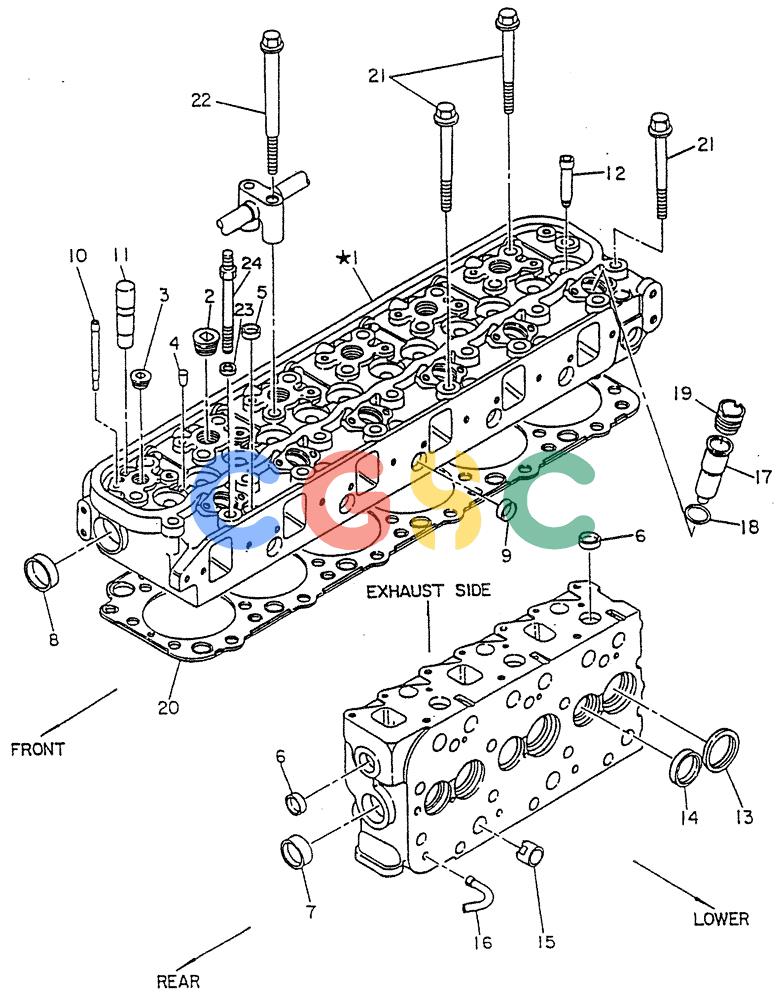

神钢零件查询(FD6(T)14) - NISSAN DIESEL ENGINE ASN 050001 - LK400 & LK500A (1/06-12/06) (01-014) - CYLINDER HEAD Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
492 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-19. | VG11040Z5510 | [1] | HEAD ASSY. CYL. HEAD ASSY-CYLINDER,FOR A2 ONLY | HEAD ASSY. CYL. HEAD ASSY-CYLINDER,FOR A2 ONLY |
| 1-19. | VG11040Z5511 | [1] | CYLINDER HEAD | KOBHEAD ASSY-CYLINDER,FOR A1,A3 ONLY |
| 2. | VG0164800034 | [5] | PLUG | KOBPLUG - WELCH,D=30 UPPER Superseded by part number: 76579817 |
| 3. | VG0164800024 | [1] | PLUG | KOBPLUG - WELCH, D=25 UPPER |
| 4. | VG0093320850 | [6] | DOWEL | KOBPLUG-TAPER,D=8 UPPER |
| 5. | VG0093312200 | [6] | PLUG | KOBPLUG-CUP, D=22 UPPER |
| 6. | VG1101976200 | [7] | PLUG | KOBPLUG REAR & R.H. |
| 7. | VG0164800124 | [1] | PLUG | KOBPLUG - WELCH,D=40 REAR |
| 6. | VG0164800084 | [1] | PLUG | KOBPLUG - WELCH,D=35 FRONT |
| 9. | VG0164800024 | [6] | PLUG | KOBPLUG - WELCH,D = 25 L.H. |
| 10. | VG11051Z5501 | [1] | PIPE PIPE-OIL | PIPE PIPE-OIL |
| 11. | VG11052Z5501 | [6] | PIPE-PUSH | |
| 12. | VG13211Z5501 | [12] | VALVE | KOBGUIDE-VALVE, Start Year: 01-JAN-85 |
| 12. | VG13211J6500 | [12] | VALVE GUIDE | KOBGUIDE-VALVE |
| 13. | VG13214Z5000 | [6] | SEAT VALVE SEAT-INLET VALVE | SEAT VALVE SEAT-INLET VALVE |
| 14. | VG13215Z5000 | [6] | VALVE SEAT | KOBSEAT-EXHAUST VALVE |
| 15. | VG11085J2000 | [6] | JET JET-WATER,D=20 | JET JET-WATER,D=20 |
| 16. | VG11085Z5501 | [6] | JET JET-WATER,D=10 | JET JET-WATER,D=10 |
| 17. | VG11070Z5502 | [6] | TUBE,NOZZLE TUBE-NOZZLE | TUBE,NOZZLE TUBE-NOZZLE |
| 18. | VG11072Z5500 | [6] | O-RING O- RING | O-RING O- RING |
| 19. | VG11071Z5502 | [6] | SLEEVE CYLINDER | KOBSLEEVE -- N OZZLE |
| 20. | VG11044Z5507 | [1] | GASKET | KOBGASKET-CYL. HEAD, Start Year: 01-DEC-83 |
| 20. | VG11044Z5505 | [1] | GASKET-CYL. HEAD | |
| 21. | VG11056Z5502 | [19] | BOLT | KOBBOLT-CYL. HEAD,FOR A1,A2 ONLY, Start Year: 01-AUG-84 Superseded by part number: VG11056Z5506 |
| 21. | VG11056Z5500 | [19] | BOLT | KOBBOLT-CYL. HEAD |
| 22. | VG11056Z5501 | [7] | BOLT | KOBBOLT-CYL. HEAD |
| 23. | VG11058J5500 | [1] | WASHER-PLAIN,FOR A3 ONLY | |
| 24. | VG11056J5500 | [1] | BOLT-CYL. HEAD,FOR A3 ONLY | |
