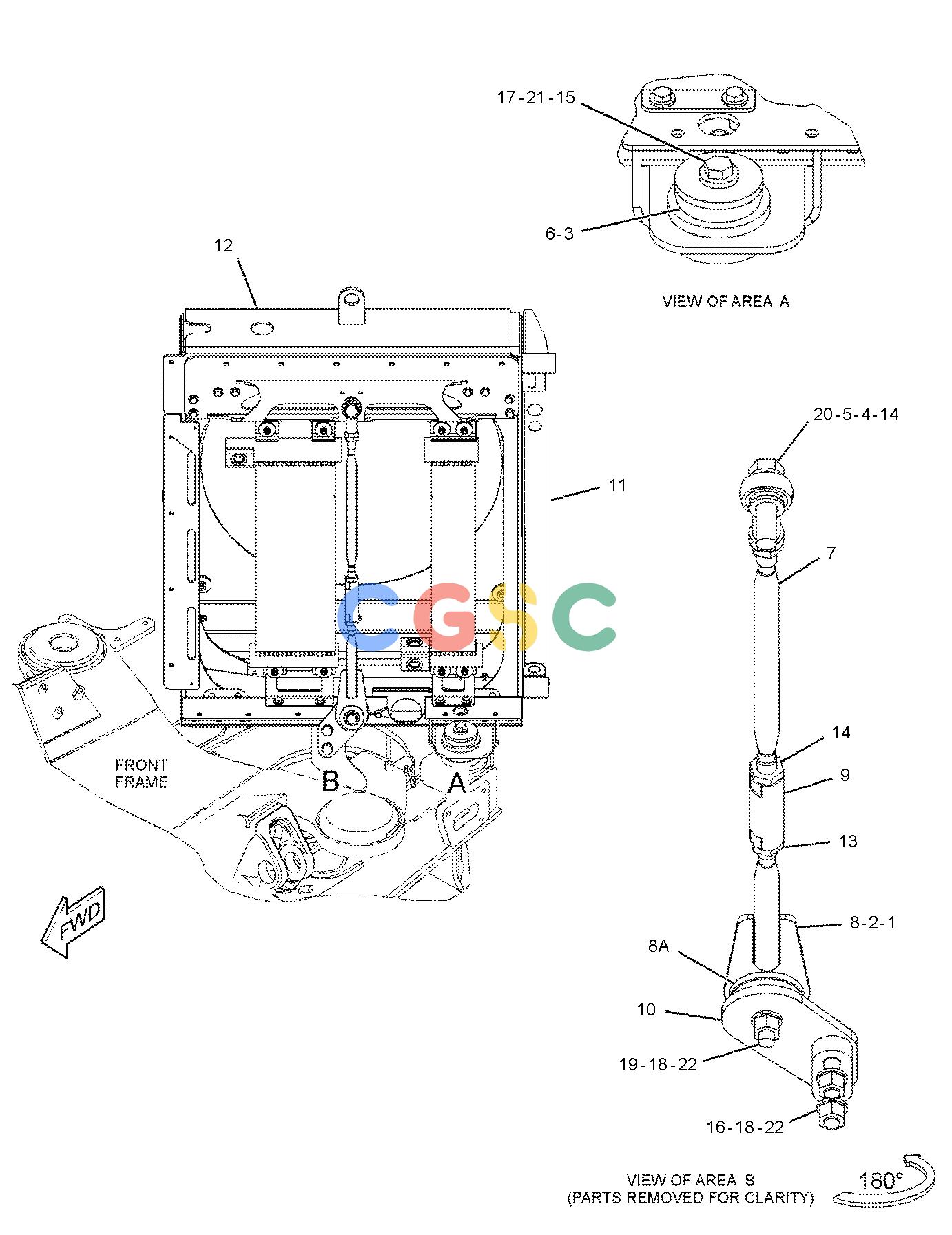

卡特零件查询（725C） 367-3632: RADIATOR GP
广数供应链运营团队, 14 02月, 2025，浏览：
187 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 7U-8704 | [1] | WASHER(17X65X5-MM THK) | |
| 2. | 8G-0841 | [1] | MOUNT AS | |
| 3. | 9W-9953 | [2] | SLEEVE | |
| 4. | 254-3355 | [1] | ROD END | |
| 5. | 273-2476 | [2] | SPACER(20.1X35X6-MM THK) | |
| 6. | 335-2474 | [2] | MOUNT AS | |
| 7. | 340-3208 | [1] | BAR-TIE | |
| 8. | 340-3209 | [1] | BAR AS | |
| 8A. | 6U-2097 | [1] | BUSHING | |
| 9. | 340-3210M | [1] | BOSS(M20X1.5X110-MM) | |
| 10. | 341-8593 | [1] | ADAPTER AS | |
| 11. | 369-3214 | [1] | SHROUD GP-RADIATOR | |
| | 5P-4116 | [10] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| | 8T-4908M | [10] | BOLT(M8X1.25X25-MM) | |
| | 382-7483 | [1] | SHROUD AS-FAN | |
| | 4H-1849 | [4] | COLLAR | |
| | 7T-1099 | [1] | LINK | |
| | 8T-3597M | [4] | NUT-WELD(M12X1.75-THD) | |
| | 8T-3612M | [11] | NUT-WELD(M8X1.25-THD) | |
| 12. | 381-6519Y | [1] | RADIATOR GP | |
| 13. | 241-8120M | [1] | NUT(M20X1.5-THD, LH) | |
| 14. | 251-9567M | [2] | NUT(M20X1.5-THD) | |
| 15. | 3E-9411 | [2] | WASHER-HARD(17.5X38X6-MM THK) | |
| 16. | 7X-2554M | [2] | BOLT(M16X2X70-MM) | |
| 17. | 7X-2556M | [2] | BOLT(M16X2X100-MM) | |
| 18. | 8T-4132M | [3] | NUT(M16X2-THD) | |
| 19. | 8T-4175M | [1] | BOLT(M16X2X90-MM) | |
| 20. | 8T-4187M | [1] | BOLT(M20X2.5X80-MM) | |
| 21. | 9W-9952 | [2] | WASHER(16.75X86X8-MM THK) | |
| 22. | 9X-8257 | [6] | WASHER(17.5X30X3.5-MM THK) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
