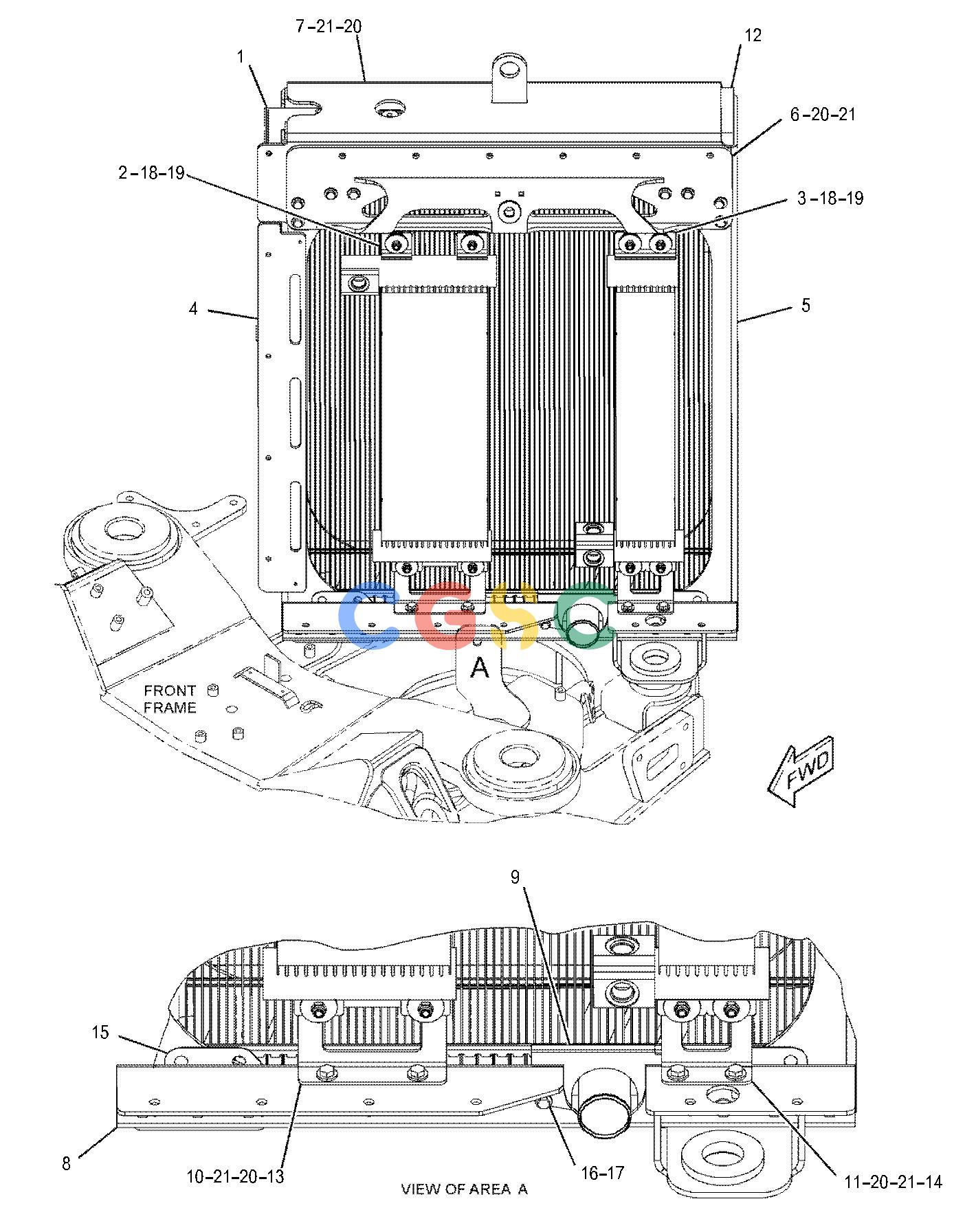

卡特零件查询（725C） 381-6519: RADIATOR GP
广数供应链运营团队, 14 02月, 2025，浏览：
589 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 247-3907 | [1] | CORE AS-RADIATOR | |
| 2. | 366-8881 | [1] | CORE AS-OIL COOLER | |
| 3. | 366-8889 | [1] | CORE AS-OIL COOLER | |
| | | | (EACH CORE AS INCLUDES) |
| | 361-4742 | [4] | ISOLATOR | |
| 4. | 368-2796 | [1] | FRAME AS(RH) | |
| 5. | 368-2797 | [1] | FRAME AS(LH) | |
| 6. | 366-8880 | [1] | BRACKET AS | |
| 7. | 368-2798 | [1] | FRAME AS-TOP | |
| 8. | 368-2799 | [1] | FRAME AS | |
| 9. | 371-8644 | [1] | PLATE AS | |
| 10. | 382-0596 | [1] | BRACKET | |
| 11. | 382-0597 | [1] | BRACKET | |
| 12. | 383-4704 | [1] | KIT-SEAL | |
| | 238-1111 | [4] | MOUNT-ISOLATION | |
| | | [2] | SEAL-FOAM |
| | | [2] | SEAL-AIR |
| 13. | 392-0730 | [1] | PLATE AS | |
| 14. | 392-0731 | [1] | PLATE AS | |
| 15. | 270-5131 | [2] | SHIM(1-MM THK) | |
| 16. | 3E-4352 | [2] | WASHER-HARD(8.8X20.5X2.5-MM THK) | |
| 17. | 6V-5217M | [2] | BOLT(M8X1.25X20-MM) | |
| 18. | 8T-4226 | [8] | WASHER-PLATED(10.5X45X3-MM THK) | |
| 19. | 8T-0389M | [8] | LOCKNUT(M10X1.5-THD) | |
| 20. | 7X-7729 | [32] | WASHER(11X25X3-MM THK) | |
| 21. | 8T-4196M | [32] | BOLT(M10X1.5X35-MM) | |
| | M | | METRIC PART |
