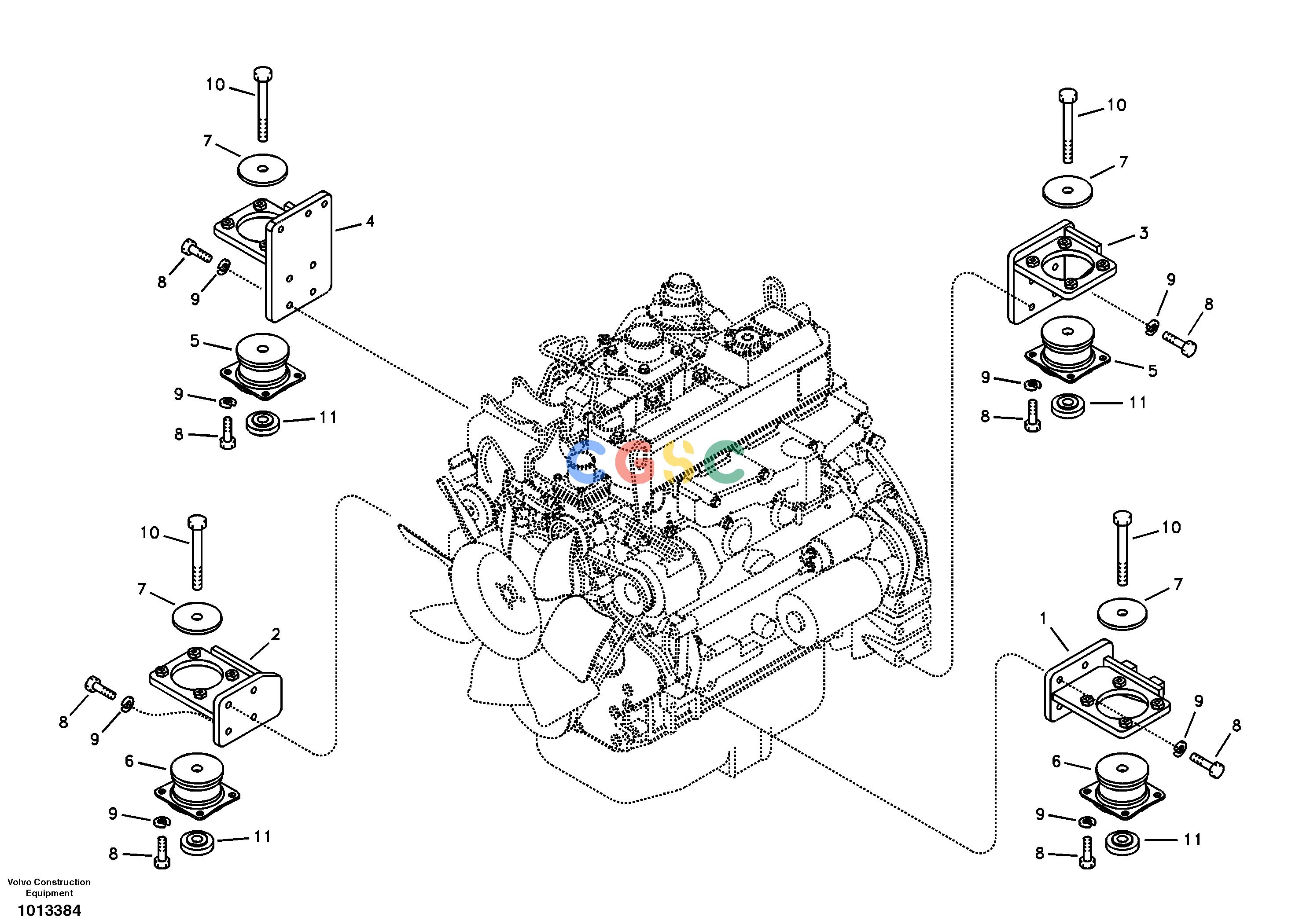

沃尔沃零件查询ECR88 Engine mountS/N 10001-140108278985-NoneNoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
761 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE14526768
|
[1] |
Bracket
|
Front LH
|
| 2. |
VOE14528909
|
[1] |
Bracket
|
Front RH
SER NO 10001-10749
|
| |
VOE14526767
|
[1] |
Bracket
|
Front RH
SER NO 10750-
|
| 3. |
VOE14519051
|
[1] |
Bracket
|
Rear LH
|
| 4. |
VOE14526105
|
[1] |
Bracket
|
Rear RH
|
| 5. |
VOE14661332
|
[2] |
Cushion
|
|
| 6. |
VOE14661331
|
[2] |
Cushion
|
|
| 7. |
SA1112-00830
|
[4] |
Plate
|
|
| 8. |
VOE983252
|
[32] |
Hexagon screw
|
|
| 9. |
VOE955922
|
[32] |
Spring washer
|
|
| 10. |
VOE978941
|
[4] |
Hexagon screw
|
|
| 11. |
VOE14528514
|
[4] |
Spacer
|
|
