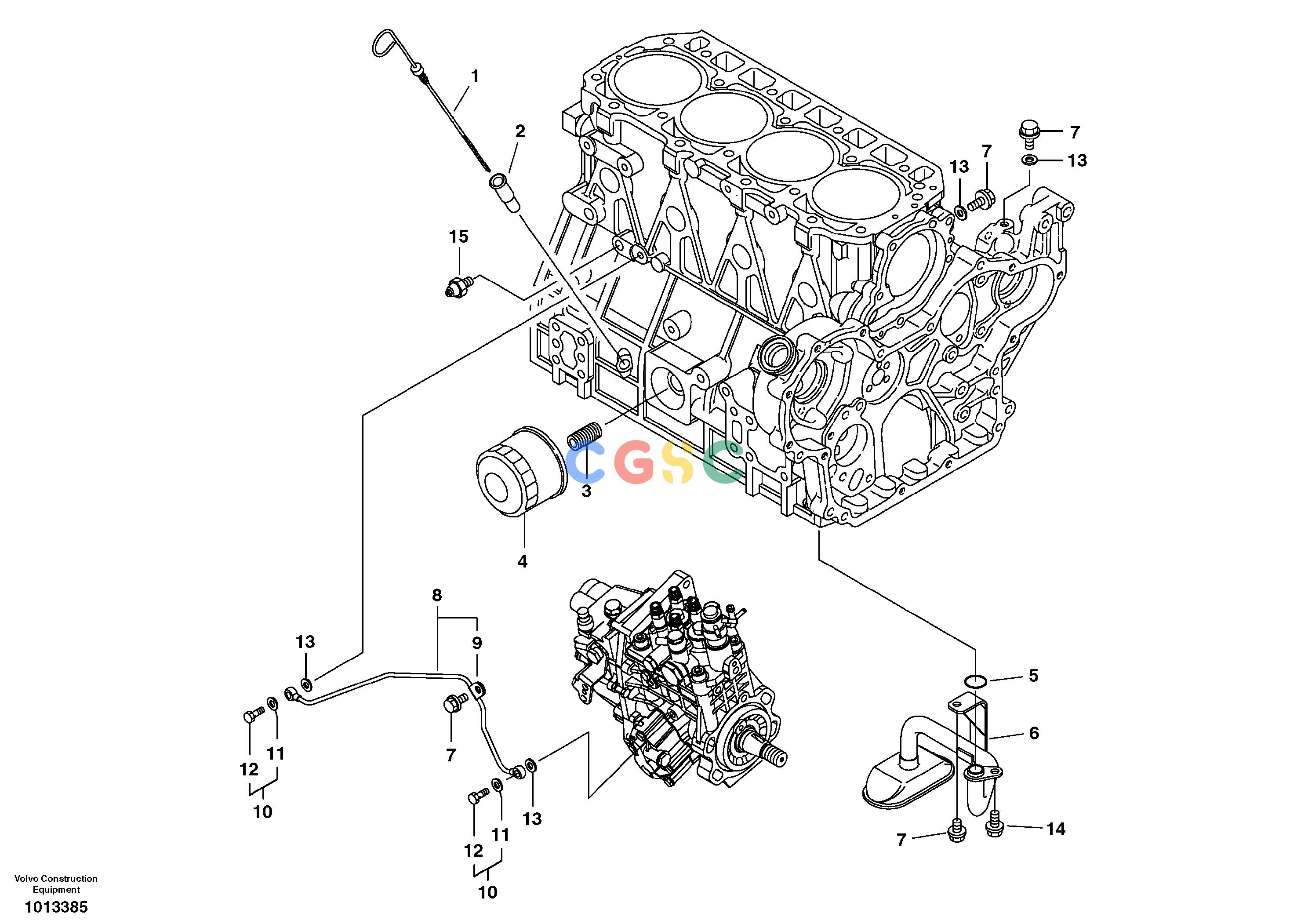

沃尔沃零件查询ECR88 Lubricating oil systemS/N 10001-140108279041-8279042NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
489 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE14543858
|
[1] |
Dipstick
|
|
| 2. |
VOE11715318
|
[1] |
Dipstick tube
|
|
| 3. |
VOE11714907
|
[1] |
Fitting
|
|
| 4. |
VOE14525396
|
[1] |
Filter
|
|
| 5. |
VOE11714738
|
[1] |
O-ring
|
|
| 6. |
VOE14525397
|
[1] |
Oil pipe
|
|
| 7. |
VOE11714490
|
[4] |
Bolt
|
|
| 8. |
VOE14528165
|
[1] |
Pipe
|
|
| 9. |
VOE14528166
|
[1] |
Support
|
|
| 10. |
VOE14521571
|
[2] |
Bolt
|
|
| 11. |
VOE11714476
|
[1] |
Sealing washer
|
|
| 12. |
SA8210-05600
|
[1] |
Bolt
|
|
| 13. |
VOE11714476
|
[4] |
Sealing washer
|
|
| 14. |
VOE11714372
|
[1] |
Bolt
|
|
| 15. |
VOE14520582
|
[1] |
Switch
|
|
