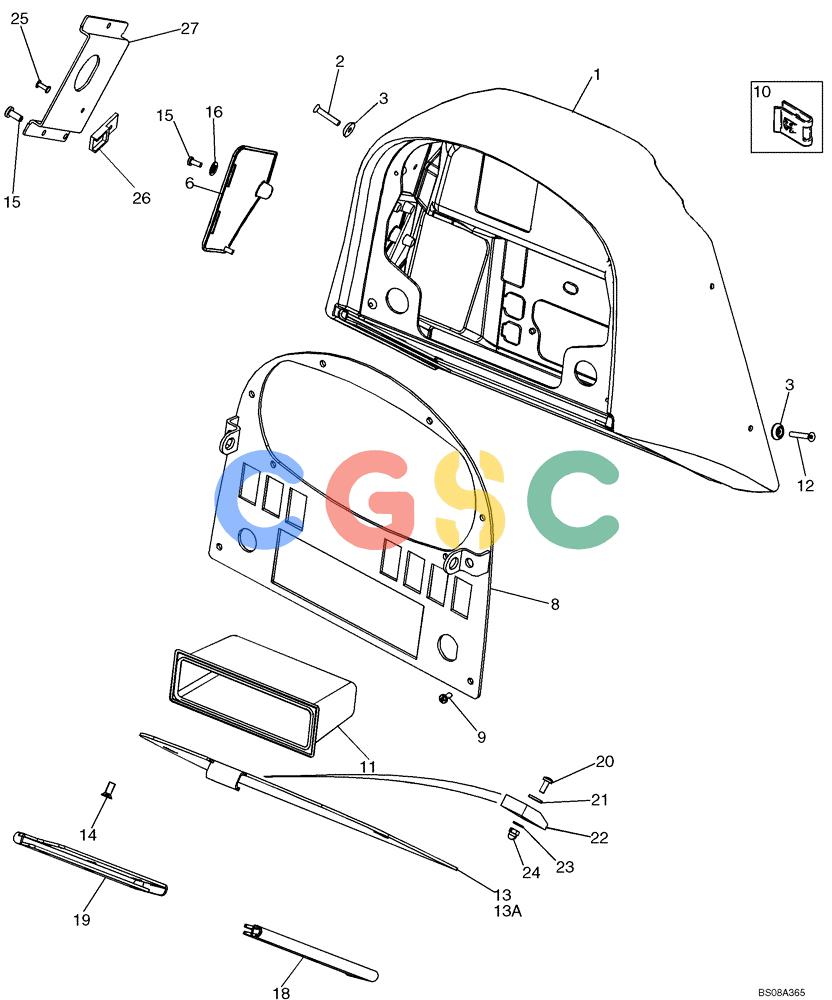

纽荷兰零件查询(D95B) - CRAWLER DOZER TIER 3 (3/08-) (04-17) - CONSOLE, FRONT - CANOPY, ROPS New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
564 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 87577762 | [1] | CONSOLE | BURFront Console , NH Canopy, ROPS |
| 2. | 543-713 | [5] | SCREW,Phil Flat Hd, M6 x 35, 4.8 | CAS |
| 3. | 79076208 | [8] | WASHER | LECNylon |
| 6. | 87434936 | [1] | PROTECTIVE COVER | BUROuter; Fuse Access |
| 7. | 86989588 | [1] | PLATE | BURHarness Bulkhead Plate |
| 9. | 540-712 | [4] | SCREW,Cross Pan Hd, M5 x 12 | CAS |
| 10. | 76047274 | [4] | NUT,M6 x 1 | LEC |
| 11. | 4417913 | [1] | CONTAINER | BURStorage Container |
| 12. | 87341593 | [4] | SCREW,Oval Hd, Csk, M6 x 20mm, Cl 4.8 | BUR |
| 13. | 87423753 | [1] | DOOR | BURLockup |
| 13A. | 87426769 | [2] | BUSHING | BURLockup Door |
| 14. | 843-1512 | [6] | SCREW,Flat , M5 x 12mm, Cl 4.8 | CAS Superseded by part number: 412188 |
| 16. | 87428441 | [1] | RETAINER | BUR |
| 18. | 87423749 | [1] | GUIDE | BURGuide Rail; Right Hand; Use 345-199 Adhesive Thread Loctite 243 |
| 19. | 87423748 | [1] | GUIDE | BURGuide Rail; Left Hand; Use 345-199 Adhesive Thread Locktite 243 |
| 20. | 840-1410 | [1] | SCREW,Pan, M4 x 10mm, Cl 4.8 | CAS Superseded by part number: 86585706 |
| 21. | 895-11006 | [1] | WASHER,M6 x 12mm OD x 1.6mm | CAS Superseded by part number: 86588450 |
| 22. | 87423750 | [1] | BUMPER | BURRubber |
| 23. | 895-11004 | [1] | WASHER,M4 | CAS Superseded by part number: 89824840 |
| 24. | 87423751 | [1] | CROWN NUT | BURM4 |
| 25. | 86837478 | [4] | RIVET,Pop, 1/8" x .650" | RAC |
| 26. | 381420A1 | [1] | TOOL | CASAttachment Clip Superseded by part number: 87716495 |
