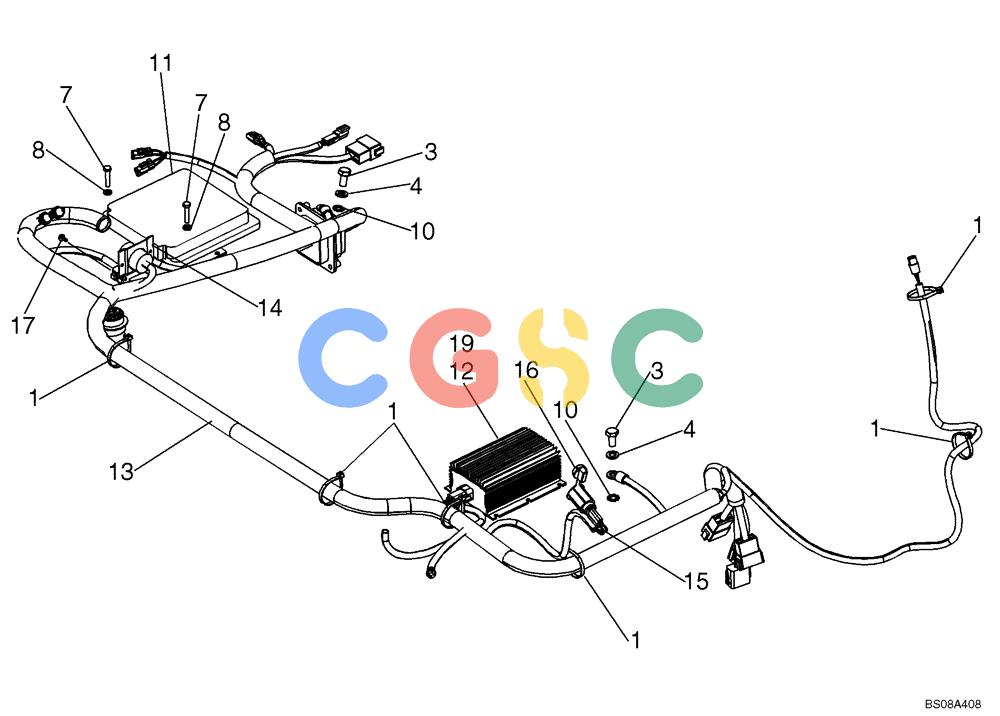

纽荷兰零件查询(D95B) - CRAWLER DOZER TIER 3 (3/08-) (04-15) - HARNESS, CAB/ CANOPY ROPS - HARNESS, MICROCONTROLLER New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
540 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | L11541 | [6] | CABLE TIE,203.2mm L, Nylon | CAS Superseded by part number: 87000312 |
| 3. | 43138 | [2] | BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8 | NH |
| 4. | 140028 | [2] | WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk | NH |
| 7. | 86508617 | [2] | BOLT,Hex, M6 x 1 x 30mm, Cl 10.9 | BRR |
| 8. | 86588450 | [2] | WASHER,6.6mm ID x 12mm OD x 1.6mm Thk | ZED |
| 10. | 86632602 | [2] | LOCK WASHER,Ext Tooth, M10 | FAR |
| 11. | 87313557 | [1] | CONTROL UNIT | BURMicro Controller RC6-9 |
| . . | 87313557R | [1] | REMAN-ELECTRONIC CONTROL UNIT | BURD95B - TIER 3 (3/08-) |
| . . | 87313557C | [1] | CORE-ELECTRONIC CONTROL UNIT | BURReturn Number |
| 12. | 87318825 | [1] | CONVERTER,24V To 12V | BUR Superseded by part number: 47409027 |
| 13. | 87370147 | [1] | WIRE HARNESS | BURMicro Controller; Cab |
| 13A. | 87639278 | [1] | WIRE HARNESS | BURHARNESS, WIRE; Micro Controller; Canopy, Not Illustrated |
| 14. | 87550990 | [1] | BRACKET | BURConnector Holdown |
| 15. | 283779A1 | [1] | POWER SOCKET | CAS30 Amp |
| 16. | 283781A1 | [1] | CAP | CASPower Plug |
| 17. | 329032A1 | [4] | SELF-TAP SCREW,Hex WAHR HD TPG #10 x 0.375 END TT | CASNo. 10 x 3/8 |
| 19. | 345-127 | [1] | TAPE, Double Sided | |
