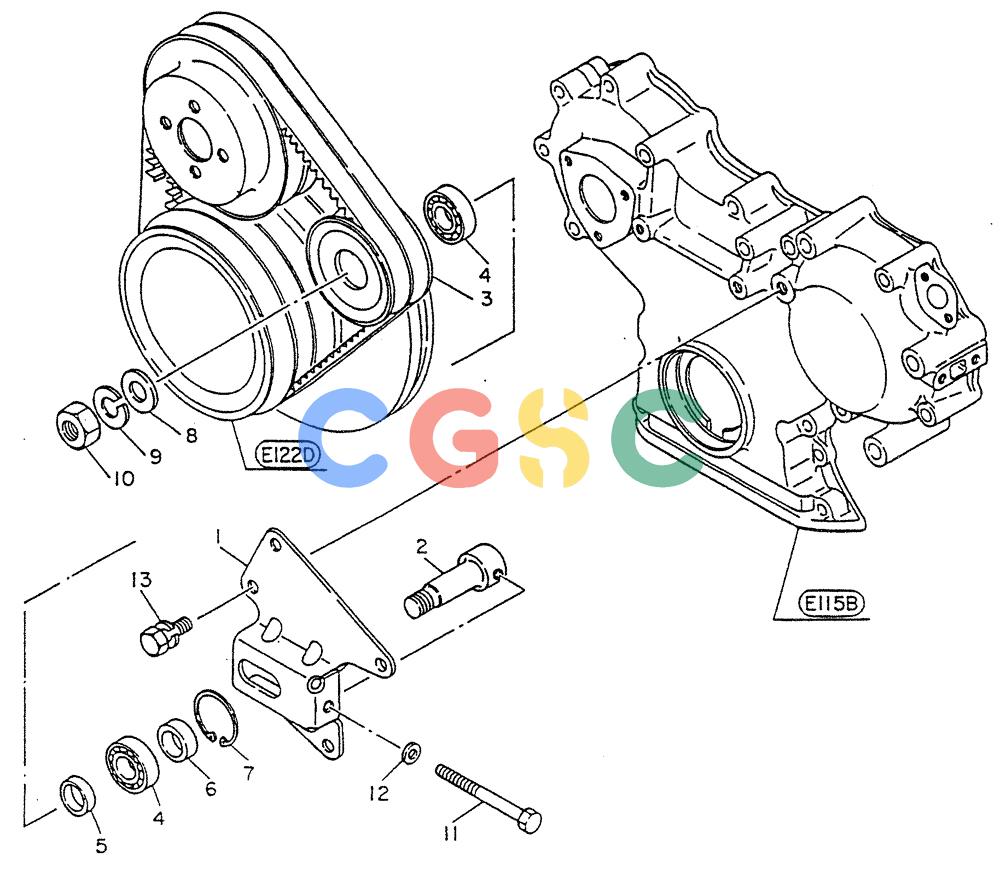

神钢零件查询(FD6(T)14) - NISSAN DIESEL ENGINE ASN 050001 - LK400 & LK500A (1/06-12/06) (06-011) - FAN "TENSION PULLEY" Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
884 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-12. | VG21100Z5508 | [1] | PULLEY | KOBPULLEY ASSY-IDLER, Start Year: 01-JAN-86 |
| 1-12. | VG21100Z5505 | [1] | PULLEY ASSY PULLEY ASSY-IDLER | PULLEY ASSY PULLEY ASSY-IDLER |
| 1. | VG21166Z5504 | [1] | U-BRACKET | KOBBRACKET |
| 2. | VG21123Z5503 | [1] | SHAFT | KOBSHAFT-IDLER, Start Year: 01-JAN-86 |
| 2. | VG21123Z5502 | [1] | SHAFT | KOBSHAFT-IDLER Superseded by part number: VG21123Z5503 |
| 3. | VG21136Z5501 | [1] | PULLEY | KOBPULLEY |
| 4. | VG21103Z5501 | [2] | BALL BEARING | KOBBEARlNG-BALL |
| 5. | VG21036Z5502 | [1] | SPACER | KOBSPACER-BEARING, Start Year: 01-JAN-86 |
| 5. | VG21036Z5501 | [1] | SPACER | KOBSPACER-BEARING Superseded by part number: VG21036Z5502 |
| 6. | VG21104Z5501 | [1] | COLLAR CLAMP | KOBCOLLER |
| 7. | VG0092224200 | [1] | SNAP RING | KOBRING-SNAP |
| 8. | VG4407590003 | [1] | WASHER WASHER | WASHER WASHER |
| 9. | VG0891514010 | [1] | WASHER WASHER-SPRING | WASHER WASHER-SPRING |
| 10. | VG0891134610 | [1] | NUT NUT | NUT NUT |
| 11. | VG0111116134 | [1] | SCREW | KOBBOLT-ADJUST |
| 12. | VG0891543810 | [1] | WASHER WASHEK-PLAIN | WASHER WASHEK-PLAIN |
| 13. | VG0812102028 | [1] | BOLT BOLT,W/WASHER | BOLT BOLT,W/WASHER |
