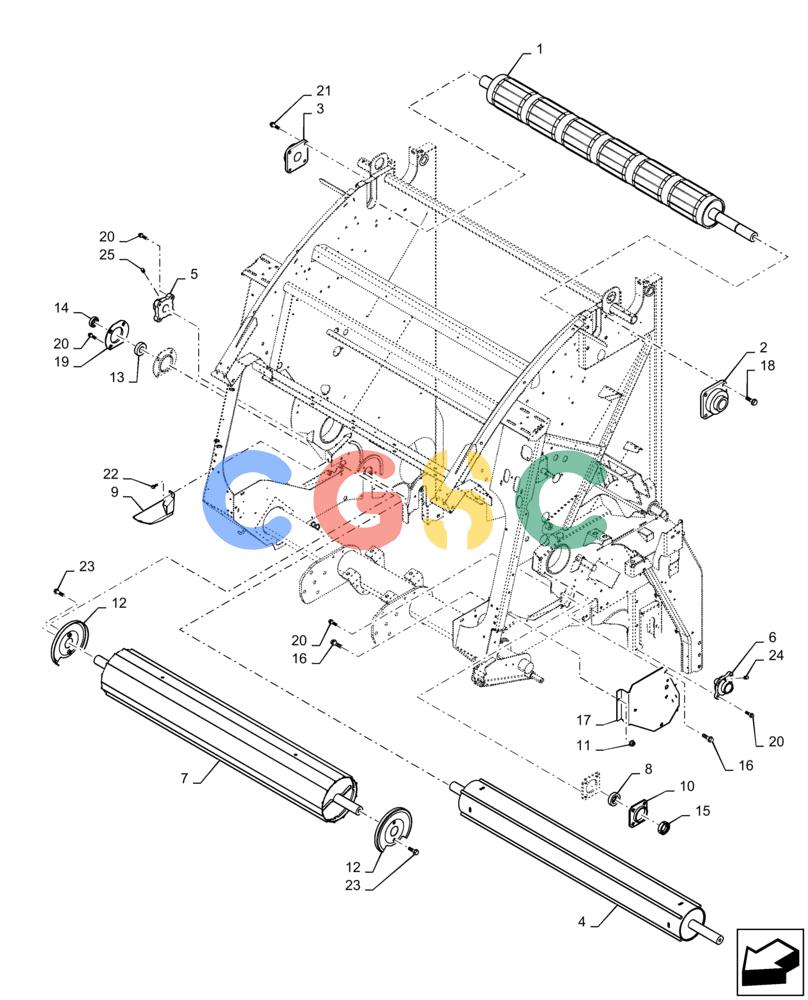

| 1. |
84544474
|
[1] |
ROLL
|
NH
Drive
|
| 2. |
86590752
|
[1] |
BEARING ASSY
|
NH
M50 Bore Superseded by part number: 87660333
|
| 3. |
87660332
|
[1] |
BEARING ASSY,45mm ID
|
NH
M45 Bore Superseded by part number: 86609558
|
| 4. |
84514692
|
[1] |
ROLL
|
NH
Floor
|
| 5. |
86590753
|
[1] |
BEARING ASSY
|
NH
M44 Bore, Torrington GVFD 40mm-A4433
|
| 6. |
86610638
|
[1] |
BEARING ASSY,45mm ID
|
NH
M45 Bore, Torrington GVFD 45mm-A4433
|
| 7. |
84405072
|
[1] |
ROLL
|
NH
Fixed
|
| 8. |
133941
|
[1] |
BALL BEARING,44.45mm ID x 84.99mm OD x 22mm W
|
NH
Superseded by part number: 84330073
|
| 9. |
47582850
|
[1] |
SHIELD
|
PLO
Filler
|
| 10. |
86979948
|
[1] |
FLANGE
|
PA
M85 Sperical
|
| 11. |
9804278
|
[1] |
FLANGE NUT,M10 x 1.5, Cl 8
|
NH
|
| 12. |
47536123
|
[2] |
SHIELD
|
PLO
|
| 13. |
52443
|
[1] |
BALL BEARING,38.1mm ID x 79.99mm OD x 22mm W
|
NH
Superseded by part number: 664073R92
|
| 14. |
52444
|
[1] |
COLLAR,38.2mm ID x 60.33mm OD x 18.3mm Thk
|
NH
M38 Superseded by part number: 47577185
|
| 15. |
45631
|
[1] |
COLLAR
|
NH
M44.5 Superseded by part number: 47577169
|
| 16. |
9804261
|
[1] |
BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd
|
NH
|
| 17. |
47536132
|
[1] |
PLATE
|
PLO
LH
|
| 18. |
9804272
|
[1] |
BOLT,Hex, M16 x 50mm, Cl 8.8, Full Thd
|
NH
|
| 19. |
86548973
|
[4] |
FLANGE
|
NH
M80 Sperical Superseded by part number: 86620027
|
| 20. |
9670066
|
[2] |
FLANGE BOLT,Hex, M12 x 30mm, Cl 8.8
|
NH
|
| 21. |
9804268
|
[16] |
BOLT,Hex, M12 x 40mm, Cl 8.8, Full Thd
|
NH
|
| 22. |
9671714
|
[4] |
FLANGE BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8
|
NH
|
| 23. |
86531147
|
[4] |
BOLT,Hex, M10 x 16mm, Cl 8.8, Full Thd
|
NH
|
| 24. |
80721
|
[4] |
LUBE NIPPLE,1/4"-28 x 45 Degree
|
GI
|
| 25. |
80714
|
[2] |
LUBE NIPPLE,1/4"-28 NPT x .54" lg
|
PA
Superseded by part number: 87414
|
