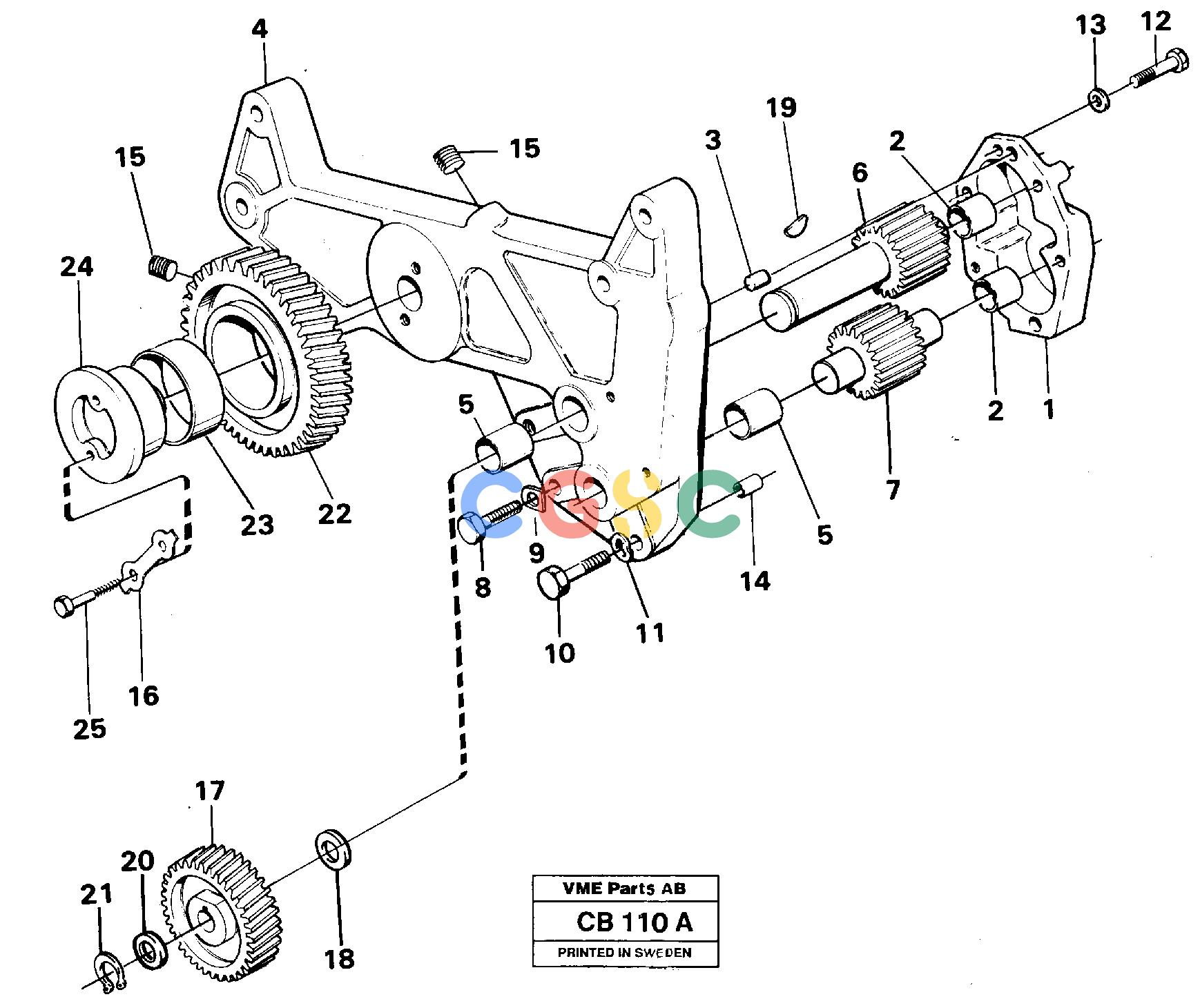

沃尔沃零件查询EL70 VOLVO BM Oil pumpVOLVO BM EL70 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
166 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
VOE11030050
|
[1] |
Oil pump
|
|
| 1. |
VOE4804196
|
[1] |
Oil pump housing
|
|
| 2. |
VOE470234
|
[2] |
Bushing
|
|
| 3. |
VOE918145
|
[1] |
Pin
|
|
| 4. |
VOE787598
|
[1] |
Bracket
|
|
| 5. |
VOE470234
|
[2] |
Bushing
|
|
| 6. |
VOE4804198
|
[1] |
Axle shaft
|
|
| 7. |
VOE11030049
|
[1] |
Gear
|
|
| 8. |
VOE955514
|
[1] |
Hexagon screw
|
|
| 9. |
VOE921206
|
[1] |
Lock washer
|
|
| 10. |
VOE955515
|
[1] |
Hexagon screw
|
|
| 11. |
VOE13941906
|
[1] |
Washer
|
|
| 12. |
VOE955516
|
[4] |
Hexagon screw
|
|
| 13. |
VOE13941906
|
[4] |
Washer
|
|
| 14. |
VOE787235
|
[1] |
Spring pin
|
|
| 15. |
VOE191142
|
[2] |
Plug
|
|
| 16. |
VOE7015024
|
[1] |
Lock washer
|
|
| 17. |
VOE4804202
|
[1] |
Drive Gear
|
|
| 18. |
VOE424133
|
[1] |
Thrust washer
|
|
| 19. |
VOE910115
|
[1] |
Woodruff key
|
|
| 20. |
VOE926147
|
[1] |
Support washer
|
|
| 21. |
VOE914450
|
[1] |
Snap ring
|
|
| 22. |
VOE787297
|
[1] |
Idler gear
|
|
| 23. |
VOE785775
|
[1] |
Bushing
|
|
| 24. |
VOE785519
|
[1] |
Pivot pin
|
|
| 25. |
VOE940161
|
[2] |
Hexagon screw
|
|
