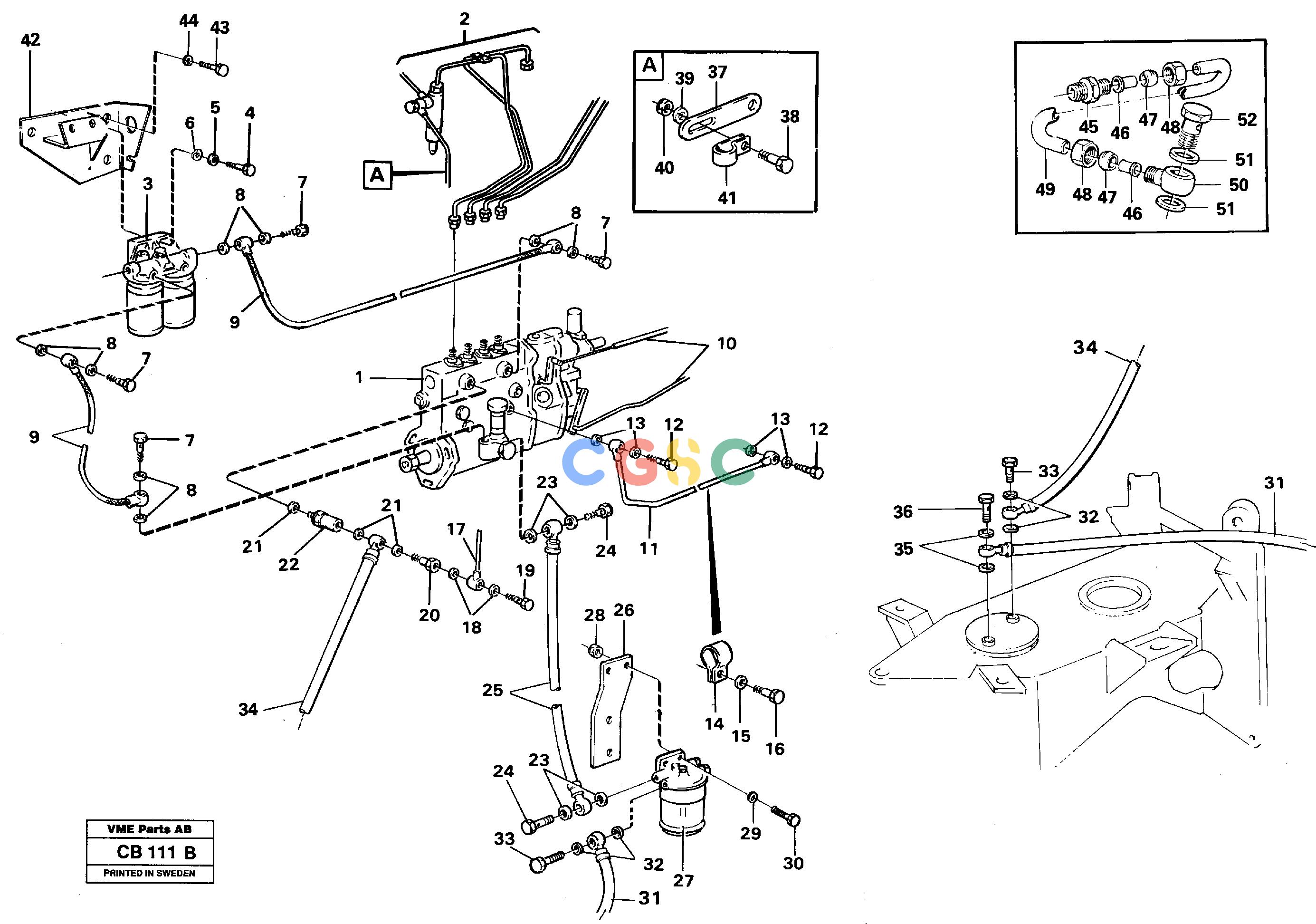

沃尔沃零件查询EL70 VOLVO BM Fuel systemVOLVO BM EL70 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
119 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
[1] |
Fuel pump
|
|
| 2. |
|
|
Pipe, injector
|
|
| 3. |
|
|
Fuel filter
|
|
| 4. |
VOE940142
|
[2] |
Hexagon screw
|
|
| 5. |
VOE13955894
|
[2] |
Washer
|
|
| 6. |
VOE13941907
|
[2] |
Washer
|
|
| 7. |
VOE60113509
|
[4] |
Hollow screw
|
|
| 8. |
VOE13947621
|
[8] |
Plane gasket
|
|
| 9. |
VOE11030044
|
[2] |
Fuel hose
|
|
| 10. |
|
|
Control
|
|
| 11. |
VOE4804757
|
[1] |
Oil pipe
|
|
| 12. |
VOE7048634
|
[2] |
Hollow screw
|
|
| 13. |
VOE13947281
|
[4] |
Gasket
|
|
| 14. |
VOE940374
|
[1] |
Clamp
|
|
| 15. |
VOE955893
|
[1] |
Plain washer
|
|
| 16. |
VOE955511
|
[1] |
Hexagon screw
|
|
| 17. |
VOE4804603
|
[1] |
Fuel pipe
|
|
| 18. |
VOE947620
|
[2] |
Gasket
|
|
| 19. |
VOE7074033
|
[1] |
Hollow screw
|
|
| 20. |
VOE7016496
|
[1] |
Hollow screw
|
|
| 21. |
VOE13947621
|
[3] |
Plane gasket
|
|
| 22. |
VOE479775
|
[1] |
Overflow valve
|
|
| 23. |
VOE13947621
|
[4] |
Plane gasket
|
|
| 24. |
VOE60113509
|
[2] |
Hollow screw
|
|
| 25. |
VOE4804349
|
[1] |
Fuel hose
|
|
| 26. |
VOE4953420
|
[1] |
Anchorage
|
|
| 27. |
VOE4880463
|
[1] |
Water separator
|
|
| 28. |
VOE946036
|
[3] |
Lock nut
|
|
| 29. |
VOE13955894
|
[4] |
Washer
|
|
| 30. |
VOE940142
|
[2] |
Hexagon screw
|
|
| 31. |
VOE4804811
|
[1] |
Fuel hose
|
|
| 32. |
VOE13947621
|
[4] |
Plane gasket
|
|
| 33. |
VOE60113509
|
[2] |
Hollow screw
|
|
| 34. |
VOE4771392
|
[1] |
Fuel hose
|
|
| 35. |
VOE13947621
|
[2] |
Plane gasket
|
|
| 36. |
VOE7016496
|
[1] |
Hollow screw
|
|
| 37. |
VOE943955
|
[1] |
Bracket
|
|
| 38. |
VOE956094
|
[1] |
Cross recessed screw
|
|
| 39. |
VOE955893
|
[1] |
Plain washer
|
|
| 40. |
VOE13955781
|
[1] |
Nut
|
|
| 41. |
VOE7121563
|
[1] |
Clamp
|
|
| 42. |
VOE4804874
|
[1] |
Bracket
|
|
| 43. |
VOE13955547
|
[3] |
Screw
|
|
| 44. |
VOE13941909
|
[2] |
Washer
|
|
| 45. |
VOE13954378
|
[1] |
Nipple
|
|
| 46. |
VOE944717
|
[2] |
Sleeve
|
|
| 47. |
VOE954364
|
[2] |
Ferrule
|
|
| 48. |
VOE954356
|
[2] |
Fitting nut
|
|
| 49. |
VOE13945460
|
[REQ] |
Plastic pipe
|
|
| 50. |
VOE13945417
|
[1] |
Banjo nipple
|
|
| 51. |
VOE13947282
|
[2] |
Gasket
|
|
| 52. |
VOE968178
|
[1] |
Hollow screw
|
|
