凯斯零件查询(RB565) - CASE IH ROUND BALER (3/14-12/15) (62.140.AQ[02]) - VAR - 726813 - BALE TENSION TAKE UP ARM AND TWO SPRINGS, DUAL HYD. CYLINDERS, MANUAL CONTROL, YFN188618 AND PRIOR Case Agriculture_凯斯Case_工程机械

凯斯零件查询(RB565) - CASE IH ROUND BALER (3/14-12/15) (62.140.AQ[02]) - VAR - 726813 - BALE TENSION TAKE UP ARM AND TWO SPRINGS, DUAL HYD. CYLINDERS, MANUAL CONTROL, YFN188618 AND PRIOR Case Agriculture

广数供应链运营团队, 14 02月, 2025，浏览： 615 次

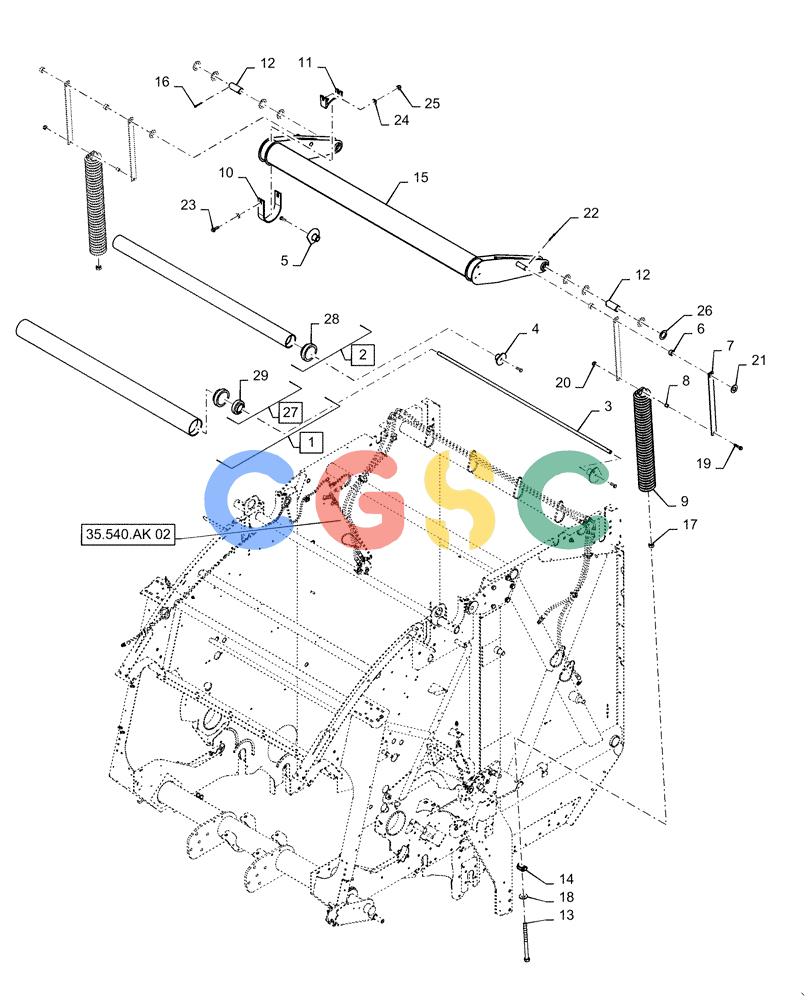

Pos.	Part No	Qty	Parts name	Comments
1.	84601409	[1]	ROLL	NH Front, Incl 27
2.	9842174	[1]	ROLLER	NH Rear, Incl 28 Superseded by part number: 84600584
3.	9608250	[1]	SHAFT	NH
4.	86516321	[2]	SUPPORT	NH Superseded by part number: 87654791
5.	86516322	[2]	SUPPORT	NH Superseded by part number: 87654792
6.	32406	[4]	SPACER,25.9mm ID x 31.5mm OD x 16.8mm L	NH M31.5 x 25.9 ID
7.	86517077	[4]	CONNECTING LINK	PA Superseded by part number: 86637229
8.	768624	[2]	SPACER	PA M15.8 OD x 10.5 ID Superseded by part number: 86636659
9.	87654704	[2]	SPRING	PLO
10.	9617265	[2]	BAND	NH
11.	9617266	[2]	BEARING CAP,145.6 mm OD	PA Superseded by part number: 86636552
12.	86515940	[2]	PIN,38.1mm OD x 91.5mm L	PA M38.1 OD x 91.5 Long Superseded by part number: 86637228
13.	633038	[2]	THREADED ROD,3/4" - 10 x 11-1/2" L	NH 3/4"-10 x 11-1/2" Long
14.	625098	[2]	PIVOT	NH
15.	47404491	[1]	ARM	NH Takeup
16.	87400	[4]	COTTER PIN,3/16" x 2"	WIN
17.	280954	[2]	NUT,3/4"-10, G5	NH
18.	86511191	[2]	WASHER,0.81" ID x 2" OD x 0.15" Thk	NH
19.	9804264	[2]	FLANGE BOLT,M10 x 50mm, 26mm Thd, Cl 8.8	NH Superseded by part number: 16587625
20.	100037	[2]	LOCK NUT,M10 x 1.5, Cl 8	NH
21.	87367	[2]	WASHER,1.06" ID x 2" OD x 0.13" Thk	PA
22.	87399	[2]	COTTER PIN,1/2 x 3 Bolt	GI
23.	9804268	[4]	BOLT,Hex, M12 x 40mm, Cl 8.8, Full Thd	NH
24.	87364	[4]	WASHER,0.53" ID x 1.06" OD x 0.1" Thk	NH
25.	100038	[4]	NUT,M12 x 1.75, Cl 8	NH
26.	28581	[8]	WASHER,38.9mm ID x 60.3mm OD x 3.5mm Thk	NH M60.3 OD x 38.9 ID Superseded by part number: 86611730
27.	47504953	[2]	BEARING HOUSING,73mm ID x 106.1mm OD x 30mm Thk	NH Incl 29
28.	9845576	[2]	BALL BEARING,38.1mm ID x 80mm OD x 22mm W	NH Superseded by part number: 84330072
29.	84259867	[2]	BALL BEARING,38.1mm ID x 80mm OD x 22mm W	PLO M38.1 Bore x 80 OD
