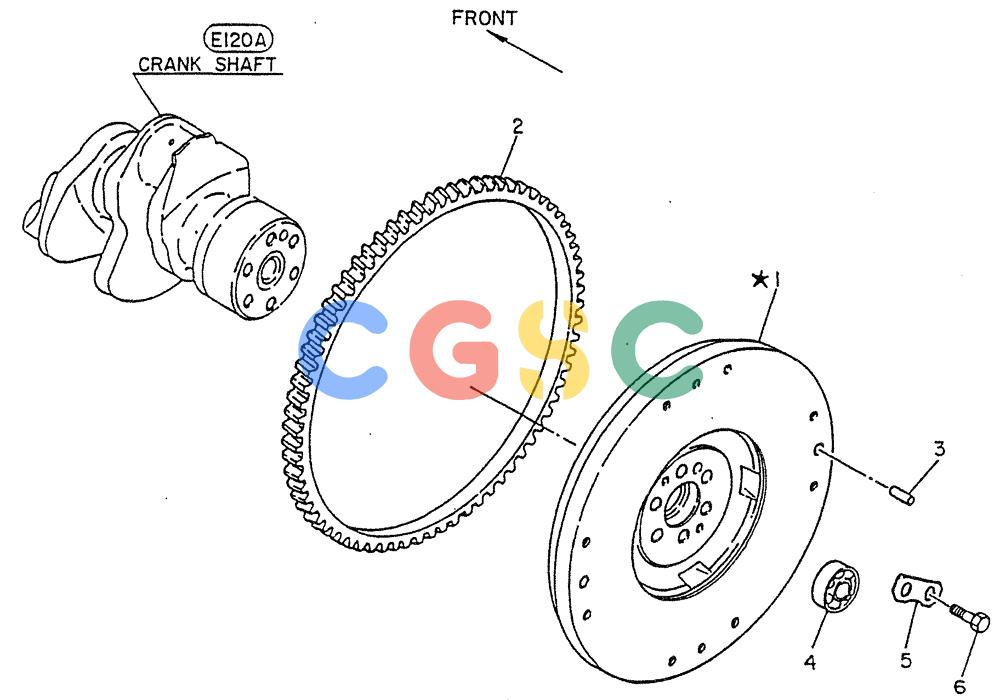

神钢零件查询(FD6(T)14) - NISSAN DIESEL ENGINE ASN 050001 - LK400 & LK500A (1/06-12/06) (02-003[03]) - FLYWHEEL Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
948 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-2. | VG12310Z5566 | [1] | ENGINE FLYWHEEL | KOBFLYWHEEL ASSY,FOR A1-A4 ONLY |
| 1-2. | VG12310Z5571 | [1] | FLYWHEEL ASSY,FOR A5 ONLY | |
| 1-2. | VG12310Z5572 | [1] | FLYWHEEL ASSY,FOR B6 ONLY | |
| 1-2. | VG12310Z5573 | [1] | FLYWHEEL ASSY,FOR B7,B8 ONLY | |
| 1-2. | VG12310L9200 | [1] | FLYWHEEL ASSY,FOR C9 ONLY | |
| 2. | VG12312Z5500 | [1] | RING GEAR | KOBGEAR-RING |
| 3. | VG0152210224 | [2] | PIN PIN-STRAIGHT,FOR A1-A4 ONLY | PIN PIN-STRAIGHT,FOR A1-A4 ONLY |
| 3. | VG0152200124 | [2] | PIN-STRAIGHT,FOR A5 ONLY | |
| 3. | VG0152210204 | [2] | PIN-STRAIGHT,FOR C9 ONLY | |
| 4. | VG21023Z5000 | [1] | BEARING - BALL,FOR A2,A4,A5,B8 ONLY | |
| 4. | VG32202L6000 | [1] | BEARING - BALL,FOR C9 ONLY | |
| 5. | VG12314Z5000 | [3] | LOCK WASHER | KOBWASHER-LOCK FOR A1-A5,B6,B7,B8 ONLY |
| 5. | VG12314L9200 | [3] | WASHER-LOCK,FOR C9 ONLY | |
| 6. | VG0813443510 | [6] | BOLT BOLT,FOR A1,A2,C9 ONLY | BOLT BOLT,FOR A1,A2,C9 ONLY |
| 6. | VG0813444510 | [6] | BOLT BOLT,FOR A5,B6,B7,B8 ONLY | BOLT BOLT,FOR A5,B6,B7,B8 ONLY |
| 6. | VG0813448510 | [6] | BOLT,FOR A3,A4 ONLY | |
