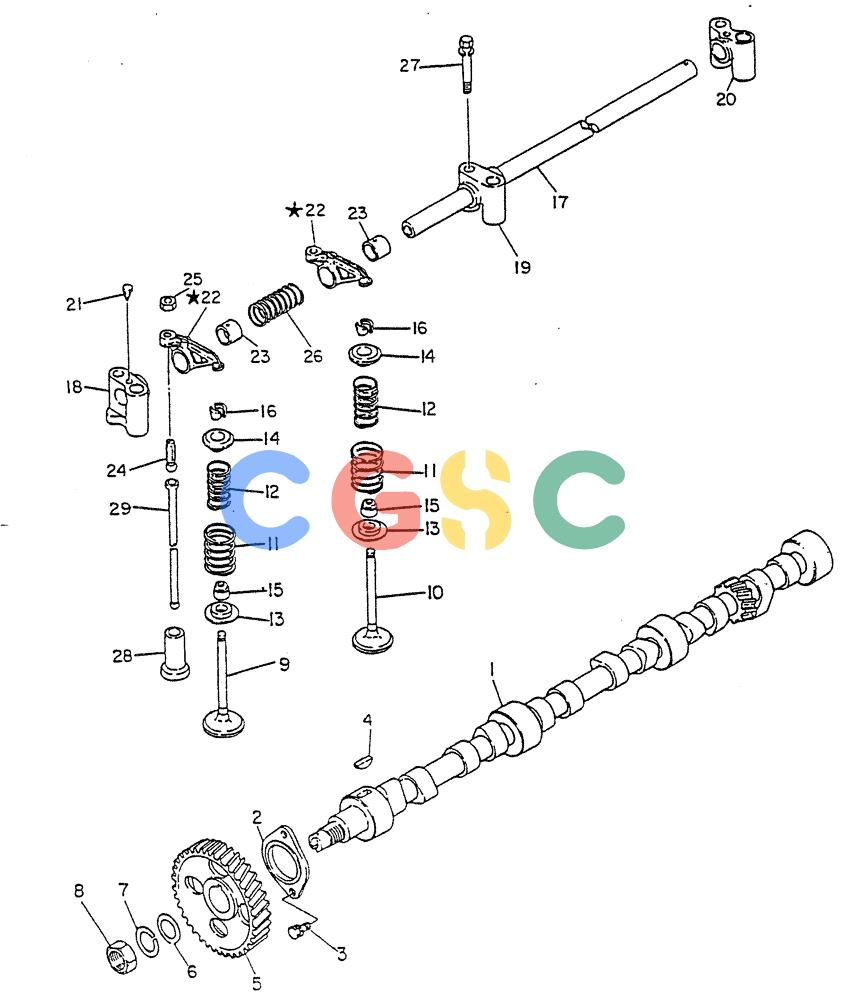

神钢零件查询(FD6(T)14) - NISSAN DIESEL ENGINE ASN 050001 - LK400 & LK500A (1/06-12/06) (02-004) - VALVE MECHANISM Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
444 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | VG13001Z5518 | [1] | CAMSHAFT CAMSHAFT,FOR A1 ONLY, Start Year: 01-SEP-84 | CAMSHAFT CAMSHAFT,FOR A1 ONLY, Start Year: 01-SEP-84 |
| 1. | VG13001Z5508 | [1] | CAMSHAFT,FOR A1 ONLY | |
| 1. | VG13001Z5517 | [1] | CAMSHAFT CAMSHAFT,FOR A2 ONLY, Start Year: 01-SEP-84 | CAMSHAFT CAMSHAFT,FOR A2 ONLY, Start Year: 01-SEP-84 |
| 1. | VG13001Z5507 | [1] | CAMSHAFT,FOR A2 ONLY | |
| 2. | VG13010Z5500 | [1] | PLATE | KOBPLATE-LOCATING |
| 3. | VG0811081662 | [2] | BOLT BOLT,W/WASHER | BOLT BOLT,W/WASHER |
| 4. | VG0092662500 | [1] | KEY | KOBKEY-WDF |
| 5. | VG13024J2000 | [1] | DRIVEN GEAR | KOBGEAR-CAMSHFT |
| 6. | VG0891545410 | [1] | LOCK WASHER | KOBWASHER-PLAIN |
| 7. | VG0891515410 | [1] | WASHER WASHER-SPRING | WASHER WASHER-SPRING |
| 8. | VG9111190014 | [1] | NUT NUT-HEX | NUT NUT-HEX |
| 9. | VG13201Z5000 | [6] | STD INLET VALVE | KOBSTD ENGINE INLET VALVE VALVE-INLET |
| 10. | VG13202T9000 | [6] | VALVE | KOBVALVE-EXHAUST |
| 11. | VG13203Z5501 | [12] | SPRING | KOBSPRING-VALVE, OUTER |
| 12. | VG13204Z5501 | [12] | VALVE SPRING | KOBSPRING-VALVE, INNER |
| 13. | VG13206J2001 | [12] | VALVE SEAT | KOBSEAT-SPRING |
| 14. | VG1320925500 | [12] | SEAT-SPRING | |
| 15. | VG13207Z5501 | [12] | VALVE SEAT | KOBSEAL-VALVE, STEM, Start Year: 01-OCT-84 |
| 15. | VG13207Z5001 | [12] | SEAL | KOBSEAL-VALVE, STEM |
| 16. | VG13208J2001 | [24] | COLLAR CLAMP | KOBCOLLAR-SPLIT |
| 17. | VG13252Z5000 | [1] | SHAFT | KOBSHAFT ASSY-ROCKER |
| 18. | VG13221Z5500 | [1] | BRACKET BRACKET-FRONT ROCKER | BRACKET BRACKET-FRONT ROCKER |
| 19. | VG13222J2000 | [5] | U-BRACKET | KOBBRACKET-ROCKER |
| 20. | VG13223J2001 | [1] | U-BRACKET | KOBBRACKET-REAR ROCKER |
| 21. | VG1904796000 | [2] | BOLT BOLT-STOPPER | BOLT BOLT-STOPPER |
| 22-23. | VG13257Z5000 | [12] | ROCKER ARM | KOBROCKER ASSY-VALVE |
| 23. | VG13260Z5000 | [12] | BUSHING | KOBBUSHING |
| 24. | VG13287J6500 | [12] | SCREW | KOBSCREW-ADJUSTING |
| 25. | VG1328896000 | [12] | NUT | KOBNUT |
| 26. | VG13256J2000 | [6] | SPRING | KOBSPRING-INSIDE |
| 27. | VG0112100054 | [7] | BOLT BOLT,W/WASHER | BOLT BOLT,W/WASHER |
| 28. | VG13231Z5505 | [12] | FOLLOWER-CAM, Start Year: 01-JAN-85 | |
| 28. | VG13231Z5501 | [12] | FOLLOWER-CAM, Start Year: 01-SEP-84 | |
| 28. | VG13241Z5000 | [12] | FOLLOWER-CAM | |
| 29. | VG13238Z5502 | [12] | PUSH ROD | KOBROD-PUSH, Start Year: 01-OCT-84 |
| 29. | VG13238Z5500 | [12] | PUSH ROD | KOBROD-PUSH Superseded by part number: VG13238Z5502 |
