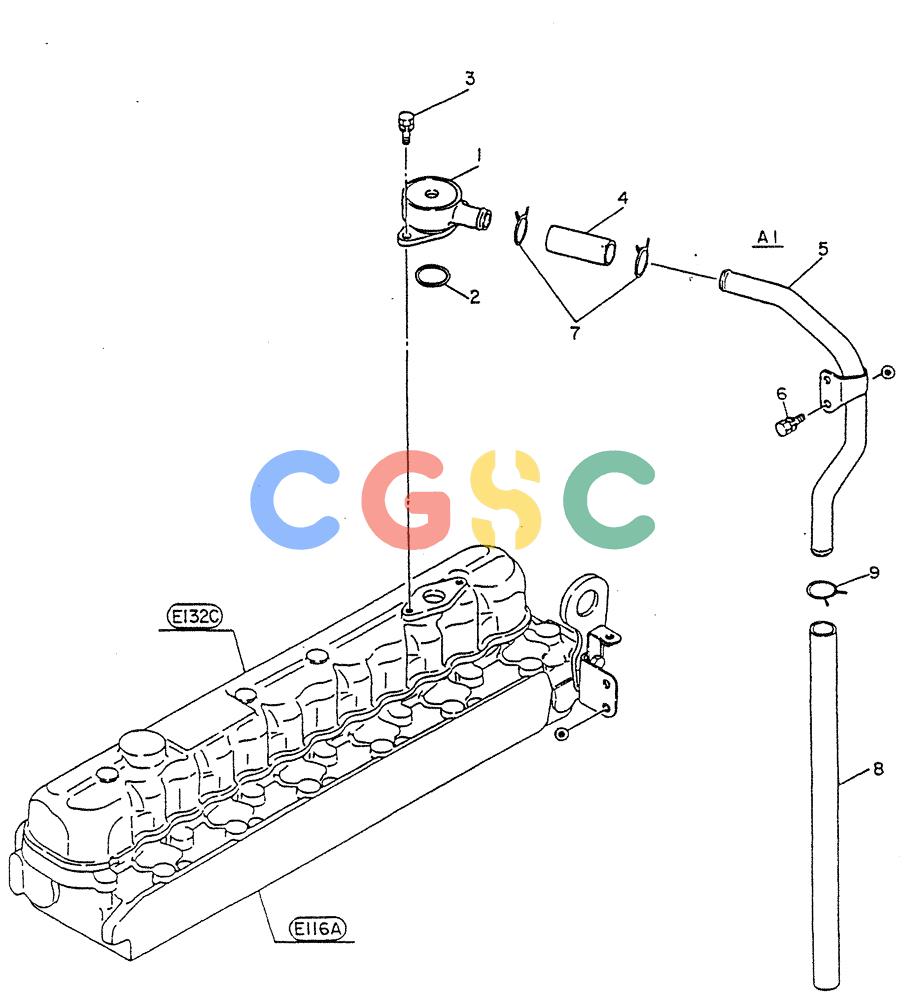

神钢零件查询(FD6(T)14) - NISSAN DIESEL ENGINE ASN 050001 - LK400 & LK500A (1/06-12/06) (02-006) - BREATHER Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
776 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | VG15262Z5506 | [1] | BREATHER | KOBBREATHER ASSY |
| 2. | VG3669590000 | [1] | O-RING | |
| 3. | VG0811082062 | [2] | BOLT | KOBBOLT,W/WASHER |
| 4. | VG15267Z5500 | [1] | HOSE HOSE BREATHER | HOSE HOSE BREATHER |
| 5. | VG15266Z5508 | [1] | PIPE PIPE ASSY-BREATHER,FOR A1 ONLY, Start Year: 01-JUN-84 | PIPE PIPE ASSY-BREATHER,FOR A1 ONLY, Start Year: 01-JUN-84 |
| 5. | VG15266Z5507 | [1] | PIPE ASSY-BREATHER,FOR A1 ONLY | |
| 5. | VG15266L9200 | [1] | PIPE-BREATHER,FOR A2 ONLY | |
| 6. | VG0811081662 | [2] | BOLT BOLT,W/WASHER | BOLT BOLT,W/WASHER |
| 7. | VG21383Z5501 | [2] | CLIP | |
| 8. | VG15263Z5504 | [1] | HOSE HOSE-BREATHER,FOR A1 ONLY | HOSE HOSE-BREATHER,FOR A1 ONLY |
| 9. | VG21383Z5501 | [1] | CLIP,FOR A1 ONLY | |
