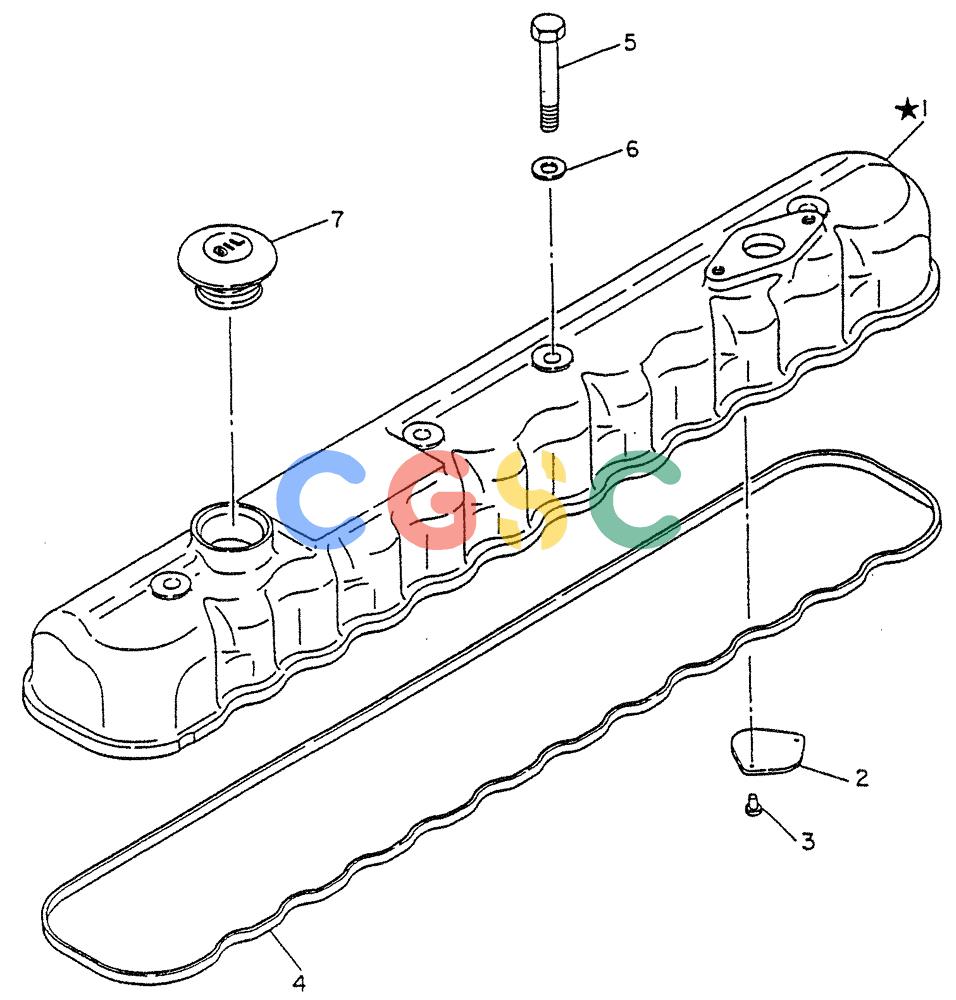

神钢零件查询(FD6(T)14) - NISSAN DIESEL ENGINE ASN 050001 - LK400 & LK500A (1/06-12/06) (02-005) - COVER VALVE KNOCKER Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
988 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-3. | VG13264Z5502 | [1] | COVER ROCKER COVER-ROCKER | COVER ROCKER COVER-ROCKER |
| 2. | VG13269Z5500 | [1] | PLATE-COVER | |
| 3. | VG1105390000 | [2] | RIVET | |
| 4. | VG13270Z5001 | [1] | GASKET-ROCKER GASKET | GASKET-ROCKER GASKET |
| 5. | VG0801109510 | [4] | BOLT BOLT | BOLT BOLT |
| 6. | VG9102090005 | [4] | OIL SEAL | KOBWASHER-SEAL |
| 7. | VG15255Z5512 | [1] | CAP | KOBCAP-OIL FILLER |
