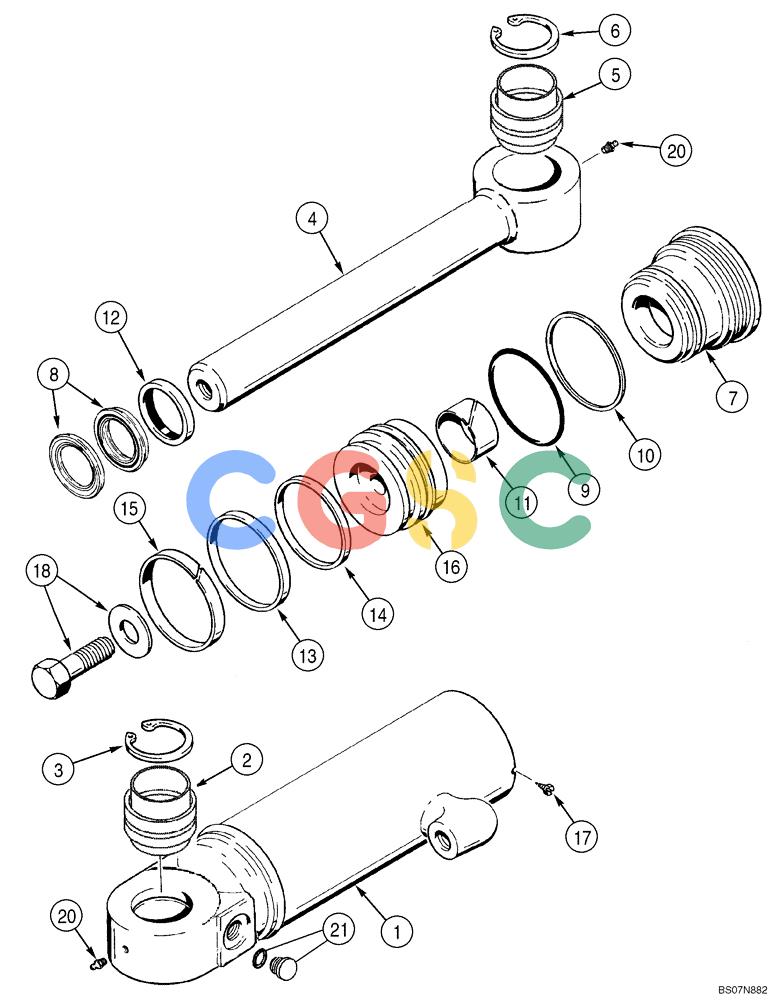

| . . | 87432203 | [1] | CYLINDER ASSY.,Double Acting, 44.4mm Rod, 147.8mm Stroke | BUR89 ID x 148 mm Stroke; Tilt; Incl. Ref 1 - 21 |
| 1. | 430288A1 | [1] | TUBE | BUR |
| 2. | 407538A1 | [1] | SPHERICAL BEARING,44.45mm ID x 71.44mm OD x 77.4mm W | CAS |
| 3. | 103-21281 | [2] | SNAP RING,66.92mm ID x 2.36mm W, Int | CAS |
| 4. | 430292A1 | [1] | ROD ASSY. | BUR45 mm (1-3/4 inch) dia |
| 7. | 355529A1 | [1] | GLAND | CAS |
| . . | 87433620 | [1] | SEAL KIT | IHIncl. Ref 8 - 15 |
| 8. | NSS | [1] | NOT SERVICED SEPARATELY | CONKit, Seal; Order 1543266C1 |
| 9. | 238-5235 | [1] | O-RING,0.139" Thk x 3.109" ID, -235, Cl 5, 75 Duro | CAS Superseded by part number: 87421144 |
| 10. | D38858 | [1] | BACK-UP RING,82.17mm ID x 88.27mm OD x 1.4mm Thk | CAS |
| 11. | G102425 | [1] | BUSHING,44.45mm ID x 47.45mm OD x 25.1mm Thk | CAS |
| 12. | D95143 | [1] | WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk | CAS |
| . . | 1986981C1 | [1] | Incl. Ref 13 - 16; Not Serviced; Order Component Parts | PISTON ASSY. |
| 13. | G102286 | [1] | SEAL,Locking, 85.47mm ID x 90.19mm OD x 6.96mm Thk | CAS |
| 14. | G100710 | [1] | RING,Square, 5.28mm Thk x 75.31mm ID | CAS |
| 15. | G100711 | [1] | SEAL,Split, 82.55mm ID x 88.9mm OD x 9.52mm Thk | CAS |
| 16. | 1986982C1 | [1] | PISTON | IH |
| 17. | 86642312 | [1] | SELF-TAP SCREW,Hex, #8 - 32 x 3/8" | IMO |
| 18. | 86982437 | [1] | BOLT,Sems, Hex, 1" - 14 x 2.50" | BUR |
| 20. | 219-1 | [2] | LUBE NIPPLE,1/8"-27 x .66 lg | CAS Superseded by part number: 80710 |
| 21. | 353-780 | [2] | PLUG,Sltd Hd, 7/8"-14, w/O-Ring | CASIncludes O-Ring Superseded by part number: 86625121 |
