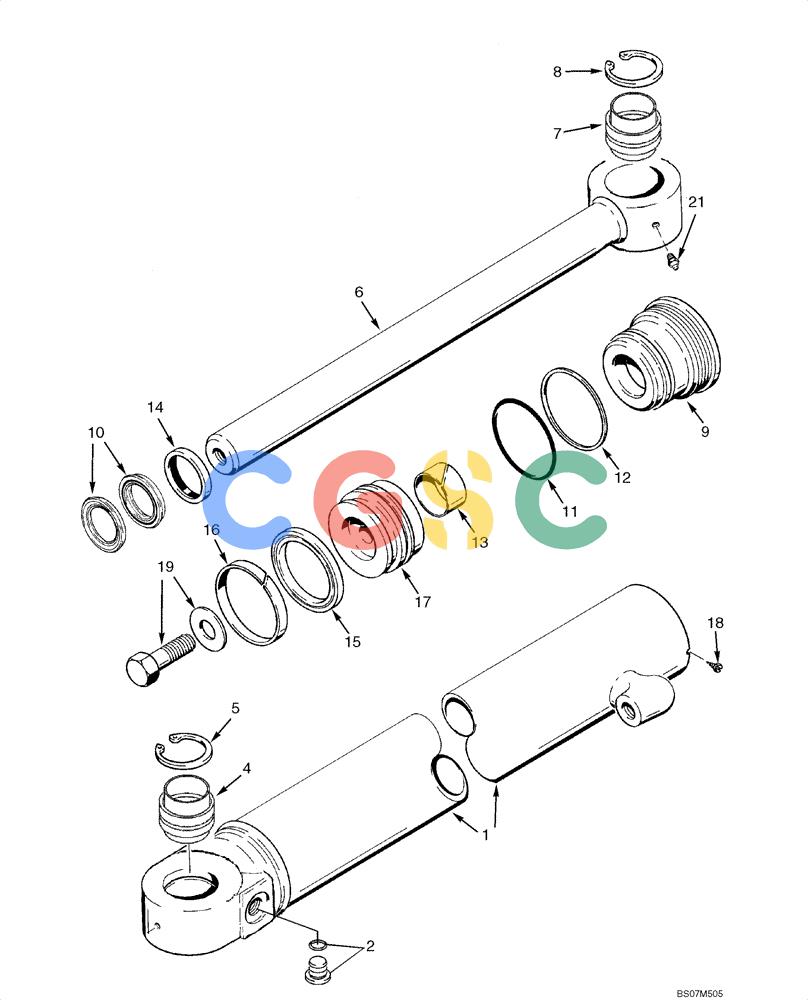

| . . | 87615547 | [2] | CYLINDER ASSY. | BUR89 ID x 396 mm Stroke; Angle; Incl. Ref 1 - 21; No Longer Available Order 84135898, See Figure 08-13A Superseded by part number: 84135900 |
| . . | 84135900R | [2] | REMAN-HYD CYLINDER | BURReman for New PN 87615547 |
| . . | 84135900C | [2] | CORE-HYD CYLINDER | BURReturn Number |
| 1. | 87610732 | [1] | TUBE,88.67mm Bore Dia | BURIncl. Ref 2, 3 |
| 2. | 353-780 | [2] | PLUG,Sltd Hd, 7/8"-14, w/O-Ring | CASIncludes O-Ring Superseded by part number: 86625121 |
| 4. | 407539A1 | [1] | SPHERICAL BEARING,44.45mm ID x 71.44mm OD x 62.5mm W | CAS |
| 5. | 103-21281 | [2] | SNAP RING,66.92mm ID x 2.36mm W, Int | CAS |
| 6. | 430296A1 | [1] | PISTON ROD | BUR45 mm (1-3/4 inch) dia Superseded by part number: 86982439, 84135902 |
| 9. | 87610734 | [1] | GLAND | |
| 10. | 1542875C1 | [1] | SEAL KIT | IHRod & Buffer Seal |
| 11. | 238-5235 | [1] | O-RING,0.139" Thk x 3.109" ID, -235, Cl 5, 75 Duro | CAS Superseded by part number: 87421144 |
| 12. | D38858 | [1] | BACK-UP RING,82.17mm ID x 88.27mm OD x 1.4mm Thk | CAS |
| 13. | G102425 | [1] | BUSHING,44.45mm ID x 47.45mm OD x 25.1mm Thk | CAS |
| 14. | D95143 | [1] | WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk | CAS |
| . . | 190395A1 | [1] | PISTON ASSY. | CASIncl. 15 - 17 |
| 15. | 190332A1 | [1] | SEAL,74.5mm ID x 88.77mm OD x 7.16mm Thk | CAS |
| 16. | G100711 | [1] | SEAL,Split, 82.55mm ID x 88.9mm OD x 9.52mm Thk | CAS |
| 17. | 1986982C1 | [1] | PISTON | IH |
| 18. | G109395 | [1] | SELF-TAP SCREW,Hex, #8 - 32 x 3/8" | CAS Superseded by part number: 86642312 |
| 19. | 86982437 | [1] | BOLT,Sems, Hex, 1" - 14 x 2.50" | BUR |
| 21. | 219-1 | [1] | LUBE NIPPLE,1/8"-27 x .66 lg | CAS Superseded by part number: 80710 |
| . . | 250741A1 | [1] | SEAL KIT | CASIncl. 10 - 16 |
