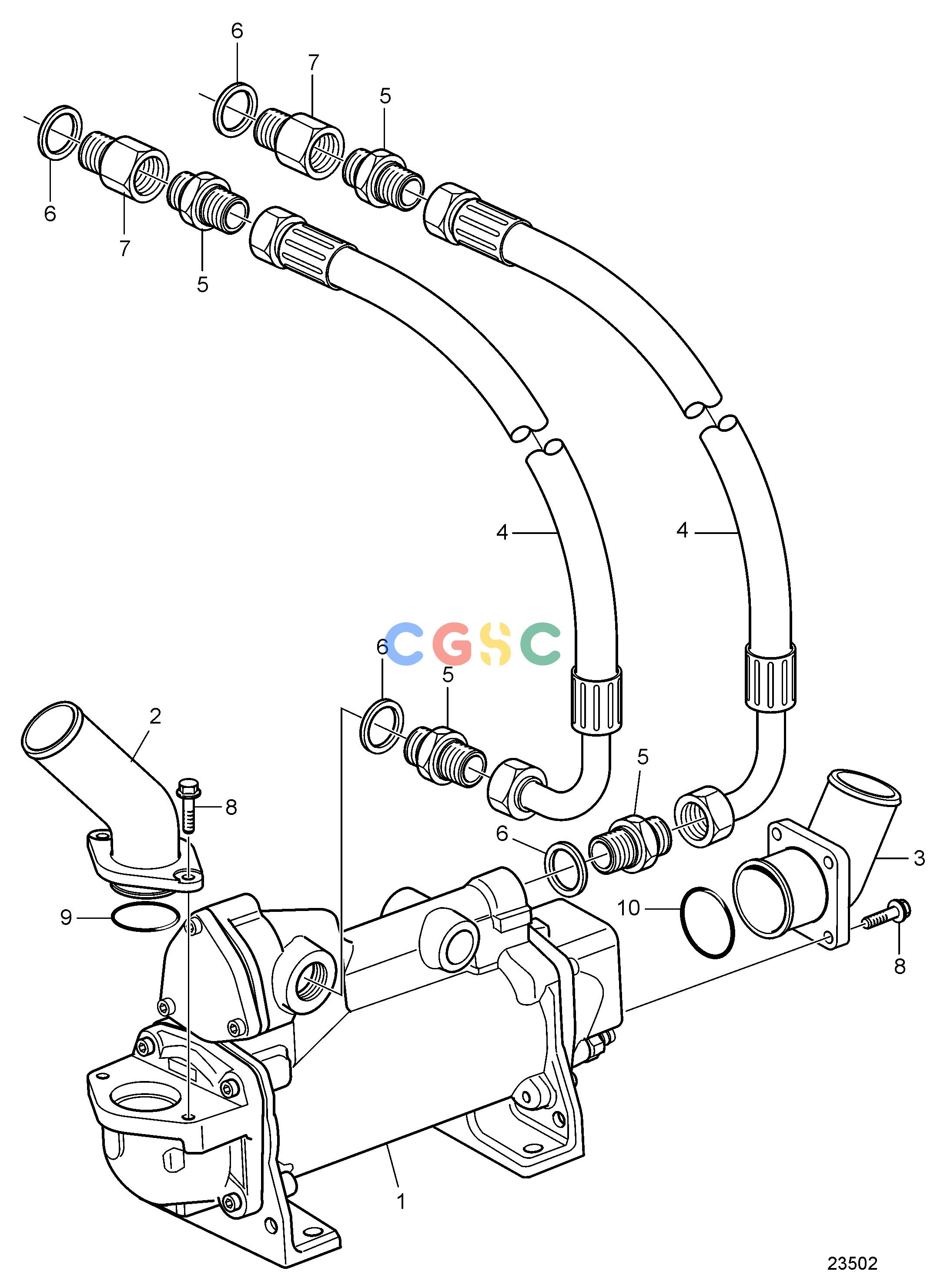

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 3843997 | [1] | Heat exchanger | Replaced by next part number |
| 1. | 22108637 | [1] | Heat exchanger | |
| 1. | ||||
| 2. | 3842588 | [1] | Sea-water pipe | |
| 3. | 3830257 | [1] | Pipe elbow | |
| 4. | 3588028 | [2] | Hose | |
| 5. | 984670 | [4] | Nipple | |
| 6. | 977937 | [4] | Gasket | |
| 7. | 949707 | [2] | Reduction nipple | |
| 8. | 984734 | [6] | Flange screw | |
| 9. | 925092 | [1] | O-ring | |
| 10. | 843584 | [1] | Gasket |
