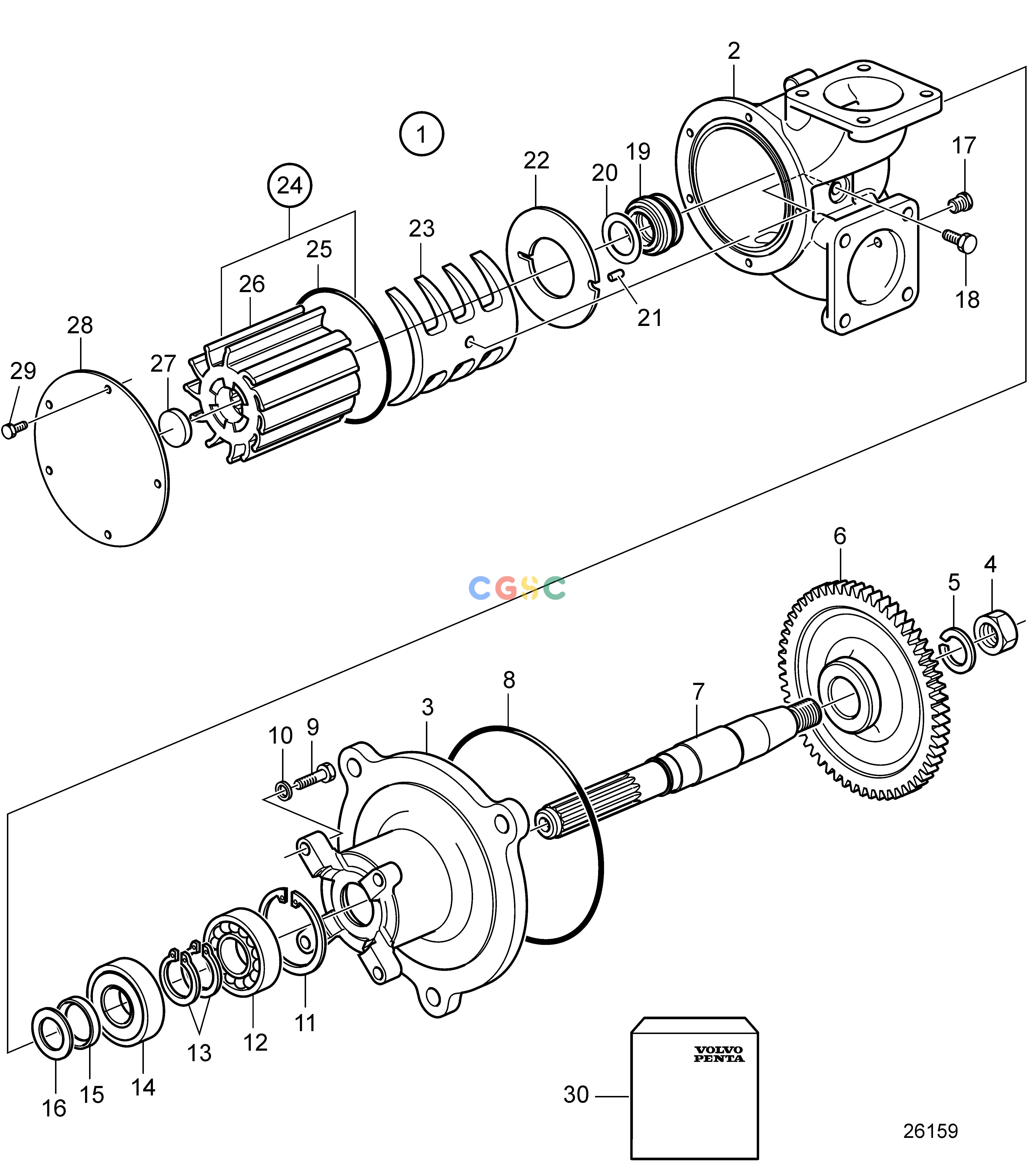

沃尔沃零件查询D16C-A MH; D16C-B MH; D16C-C MHCooling SystemSea Water Pump for Heat Exchanger, ComponentsEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
978 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3589104
|
[1] |
Sea water pump
|
Replaced by 22905155
|
| 1. |
22905155
|
[1] |
Sea water pump
|
|
| 2. |
|
|
|
|
| 3. |
|
|
|
|
| 4. |
3587886
|
[1] |
Hexagon nut
|
|
| 5. |
941914
|
[1] |
Spring washer
|
|
| 6. |
8131848
|
[1] |
Gear
|
|
| 7. |
3817940
|
[1] |
Shaft
|
|
| 8. |
948977
|
[1] |
O-ring
|
|
| 9. |
940135
|
[4] |
Hexagon screw
|
|
| 10. |
941907
|
[4] |
Spring washer
|
|
| 11. |
825735
|
[1] |
Lock ring
|
|
| 12. |
11013
|
[1] |
Ball bearing
|
|
| 13. |
847230
|
[2] |
Lock ring
|
|
| 14. |
1544092
|
[1] |
Ball bearing
|
|
| 15. |
845795
|
[1] |
Sealing ring
|
|
| 16. |
812964
|
[1] |
Deflector ring
|
|
| 17. |
981749
|
[1] |
Plug
|
|
| 18. |
3830665
|
[1] |
Hexagon screw
|
|
| 19. |
3829315
|
[1] |
Sealing ring
|
|
| 20. |
3829449
|
[1] |
Washer
|
|
| 21. |
3817937
|
[1] |
Pivot pin
|
|
| 22. |
826230
|
[1] |
Wear washer
|
|
| 23. |
3830661
|
[1] |
Cam
|
|
| 24. |
3886760
|
[1] |
Impeller kit
|
Replaced by 3830459
|
| 25. |
925259
|
[1] |
O-ring
|
|
| 26. |
|
|
|
|
| 27. |
827020
|
[1] |
Washer
|
|
| 28. |
3817938
|
[1] |
Cover
|
|
| 29. |
3583605
|
[5] |
Hexagon screw
|
|
| 30. |
7746510_116
|
|
Repsats
|
|
