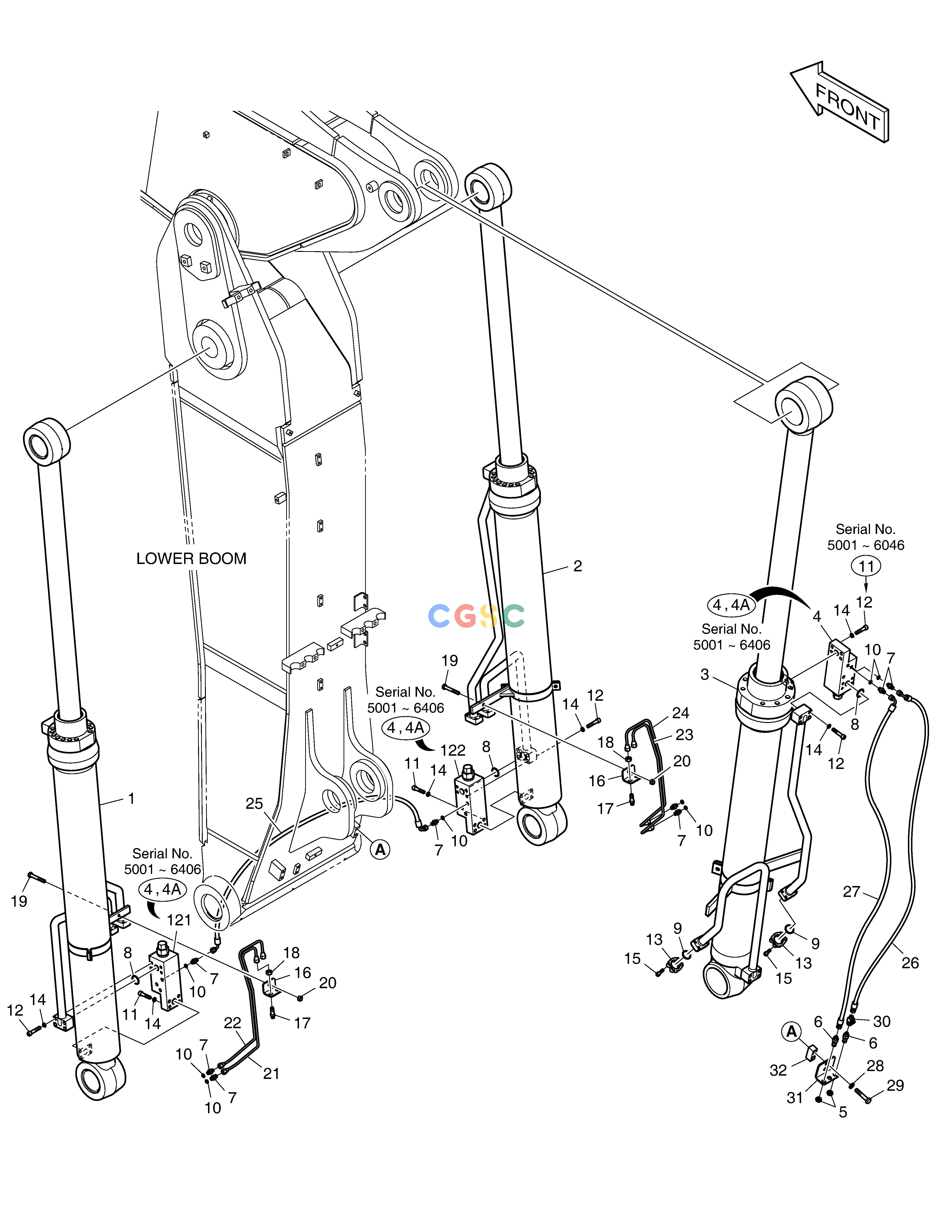

斗山零件查询ARTI. BOOM PIPING - LOCK VALVE DX350LC Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
952 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1037534
|
[-] |
LOCK VALVE PIPING
|
|
| -. |
420212-00379
|
[-] |
|
|
| 1. |
K1006234
|
[1] |
CYLINDER;BOOM(L.H)
|
400309-00086
|
| 1. |
400309-00086
|
[1] |
|
|
| 10. |
S8000111
|
[8] |
O-RING
|
|
| 11. |
S2215766
|
[12] |
BOLT
|
|
| 11. |
S2215766
|
[8] |
BOLT
|
|
| 12. |
S2215866
|
[12] |
BOLT;SOCKET M12X1.75X60
|
|
| 12. |
S2215866
|
[16] |
BOLT;SOCKET M12X1.75X60
|
|
| 121. |
410114-00050
|
[1] |
|
|
| 122. |
410114-00049
|
[1] |
|
|
| 13. |
2181-9078
|
[4] |
FLANGE;SPLIT
|
|
| 14. |
S5110703
|
[24] |
WASHER
|
|
| 15. |
S2212466
|
[8] |
BOLT
|
|
| 16. |
195-01535A
|
[2] |
BRACKET
|
|
| 17. |
2181-1923D12
|
[4] |
ADAPTER
|
|
| 18. |
S4032833
|
[4] |
NUT
|
|
| 19. |
S0561466
|
[2] |
BOLT
|
|
| 2. |
K1006235
|
[1] |
CYLINDER;BOOM(R.H)
|
400309-00087
|
| 2. |
400309-00087
|
[1] |
|
|
| 20. |
S4012733
|
[2] |
NUT
|
|
| 21. |
140-01092A
|
[1] |
PIPE
|
|
| 22. |
140-01093A
|
[1] |
PIPE
|
|
| 23. |
140-01094A
|
[1] |
PIPE
|
|
| 24. |
140-01095A
|
[1] |
PIPE
|
|
| 25. |
DS2059383
|
[1] |
HOSE PF1/4-800L
|
|
| 26. |
DS2055935
|
[1] |
HOSE
|
|
| 27. |
2184-1046D176
|
[1] |
HOSE PF1/4-2350L
|
|
| 28. |
120804-00080
|
[2] |
WASHER
|
|
| 29. |
S0563466
|
[2] |
BOLT
|
|
| 3. |
400306-00020
|
[1] |
|
|
| 30. |
181-00673D1
|
[1] |
TEE;UNION
|
|
| 31. |
K1036414
|
[1] |
BRACKET
|
|
| 32. |
K1004006
|
[1] |
PLATE
|
|
| 4. |
420-00004A
|
[3] |
VALVE;LOCK
|
|
| 4. |
410114-00050
|
[1] |
|
|
| 4A. |
K9000999
|
[1] |
SEAL KIT
|
|
| 5. |
121-00010D1
|
[2] |
NUT
|
|
| 6. |
181-00078D5
|
[2] |
ADAPTER
|
|
| 7. |
2181-1126D14
|
[8] |
ADAPTER
|
|
| 8. |
S8000341
|
[3] |
O-RING
|
|
| 9. |
2180-1026D19
|
[2] |
O-RING
|
|
