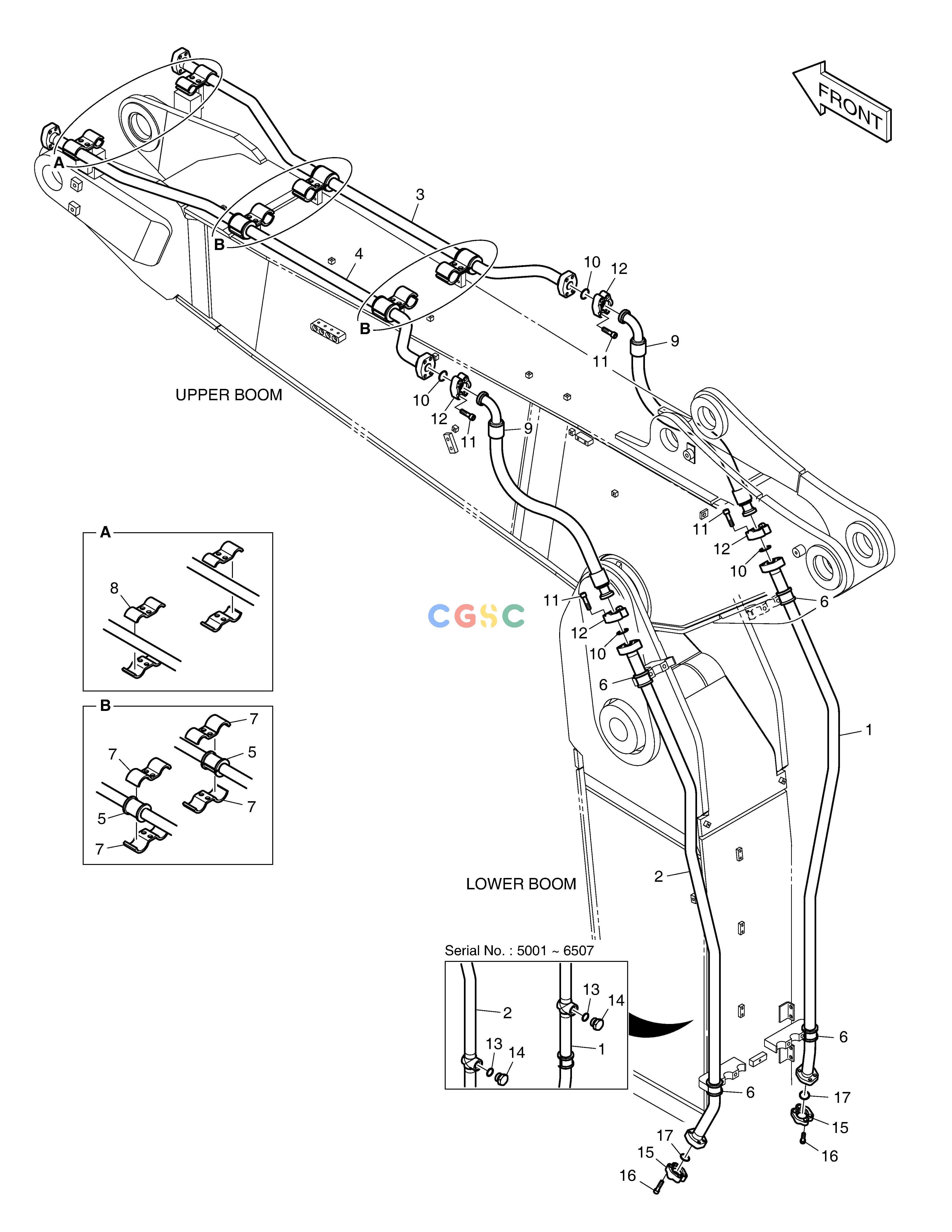

斗山零件查询ARTI. BOOM PIPING - ONE & TWO WAY DX350LC Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
516 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1037529
|
[-] |
ONE & TWO WAY PIPING
|
|
| -. |
420212-10388
|
[-] |
|
|
| 1. |
K1036343
|
[1] |
PIPE
|
420207-02578
|
| 1. |
420207-02578
|
[1] |
|
|
| 10. |
2180-1026D23
|
[4] |
O-RING
|
DS2856004
|
| 10. |
DS2856004
|
[4] |
O-RING
|
|
| 11. |
S2218766
|
[16] |
BOLT;SOCKET
|
|
| 12. |
2181-9086
|
[8] |
FLANGE;SPLIT
|
|
| 13. |
S8000291
|
[2] |
O-RING
|
|
| 14. |
2181-1950D9
|
[2] |
PLUG
|
|
| 15. |
2181-9081
|
[4] |
FLANGE;SPLIT
|
|
| 16. |
S2215666
|
[8] |
BOLT;SOCKET
|
|
| 17. |
2180-1026D19
|
[2] |
O-RING
|
DS2856003
|
| 17. |
DS2856003
|
[2] |
O-RING
|
|
| 2. |
K1036344
|
[1] |
PIPE
|
420207-02579
|
| 2. |
420207-02579
|
[1] |
|
|
| 3. |
K1036345
|
[1] |
PIPE
|
|
| 4. |
K1036346
|
[1] |
PIPE
|
|
| 5. |
161-00280
|
[4] |
RUBBER
|
180308-00236
|
| 5. |
180308-00236
|
[4] |
|
|
| 6. |
K1010531
|
[4] |
RUBBER
|
|
| 7. |
K1004059
|
[8] |
CLAMP
|
|
| 8. |
K1004060
|
[4] |
CLAMP
|
|
| 9. |
DS2040629
|
[2] |
HOSE
|
|
