纽荷兰零件查询(D95B) - CRAWLER DOZER TIER 3 (3/08-) (08-22) - VALVE ASSY, CHECK - VALVE ASSY, ANTI-CAVITATION New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
512 次

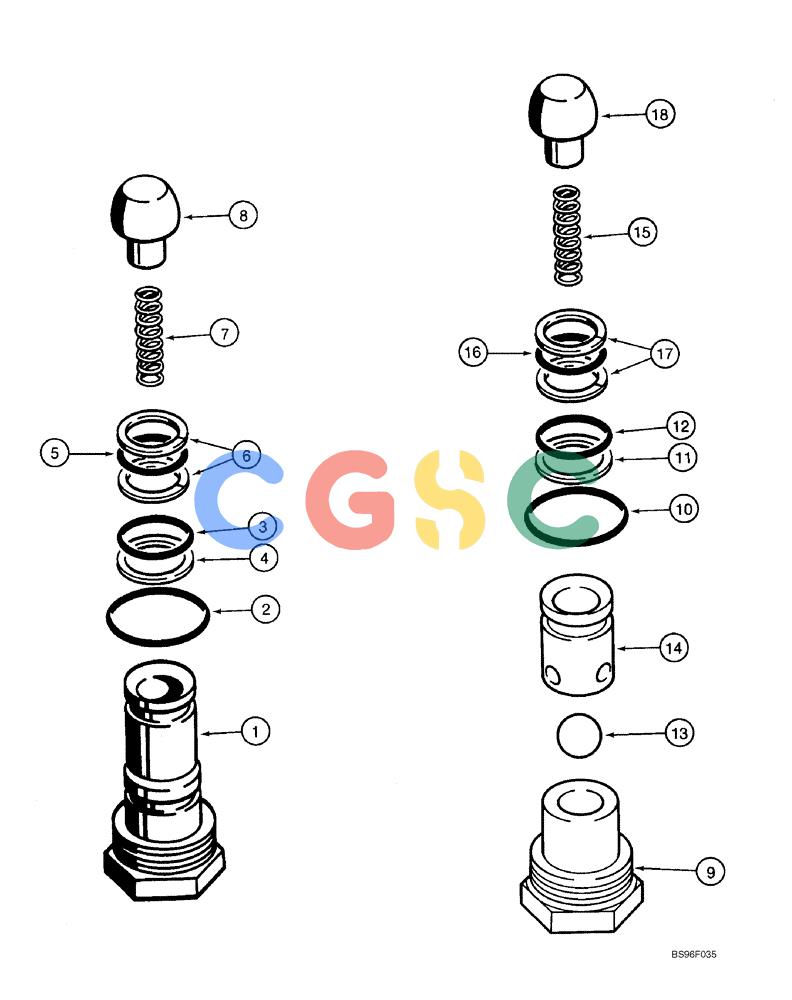

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | D87307 | [3] | VALVE | CASLoad Check Valve; Incl. Ref 1 - 8; Lift Section Lower Port; Tilt Section Upper and Lower Ports Superseded by part number: 274858 |
| 1. | NSS | [1] | NOT SERVICED SEPARATELY | CONBody |
| 2. | 237-6010 | [1] | O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro | CAS Superseded by part number: 72186125, 167269 |
| 3. | 238-6016 | [1] | O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro | CAS Superseded by part number: 9992069 |
| 4. | L35297 | [1] | RING,16.18mm ID x 19.07mm OD x 1.42mm Thk | CASBackup Superseded by part number: D0NNH947A |
| 5. | 238-5015 | [1] | O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro | CAS Superseded by part number: 14453280 |
| 6. | D88725 | [2] | BACK-UP RING | CAS |
| 7. | H268730 | [1] | SPRING | CAS Superseded by part number: 527283 |
| 8. | D28576 | [1] | VALVE POPPET | CAS |
| . . | 122119A1 | [3] | KIT | CASAnti-Cavitation Valve; Incl. Ref 9 - 18; Lift Section Upper Port; Angle Section Upper and Lower Ports |
| 13. | 211-1014 | [1] | BALL,7/16" Dia | CASGr 24; Chrome Alloy Steel Superseded by part number: 86624945 |
| 14. | N7902 | [1] | RETAINER | CAS |
