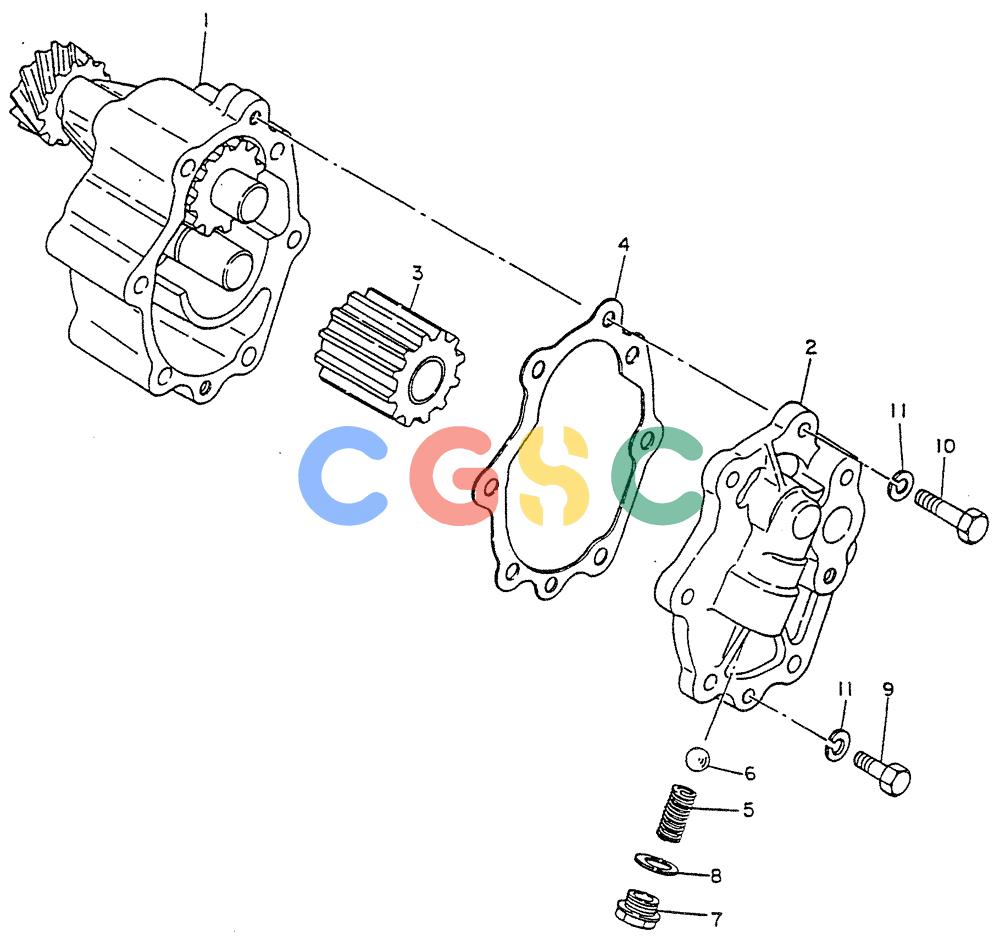

神钢零件查询(FD6(T)14) - NISSAN DIESEL ENGINE ASN 050001 - LK400 & LK500A (1/06-12/06) (04-002) - PUMP-OIL (INNER PARTS) Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
978 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-11. | VG15010Z5501 | [1] | ENGINE OIL PUMP | KOBPUMP-OIL |
| 1. | VG15023Z9001 | [1] | GEAR ASSY-PUMP | |
| 2. | VG15036Z9000 | [1] | COVER | |
| 3. | VG15023Z9002 | [1] | GEAR ASSY-DRIVE | |
| 4. | VG15031Z9000 | [1] | GASKET GASKET | GASKET GASKET |
| 5. | VG3564999001 | [1] | SPRING | |
| 6. | VG3265099001 | [1] | BALL | |
| 7. | VG15046Z9000 | [1] | NUT | |
| 8. | VG15031Z9001 | [1] | GASKET | |
| 9. | VG0812082010 | [1] | BOLT | |
| 10. | VG0812083010 | [1] | BOLT BOLT | BOLT BOLT |
| 11. | VG0891513810 | [2] | WASHER SPRING WASHER-SPRING | WASHER SPRING WASHER-SPRING |
