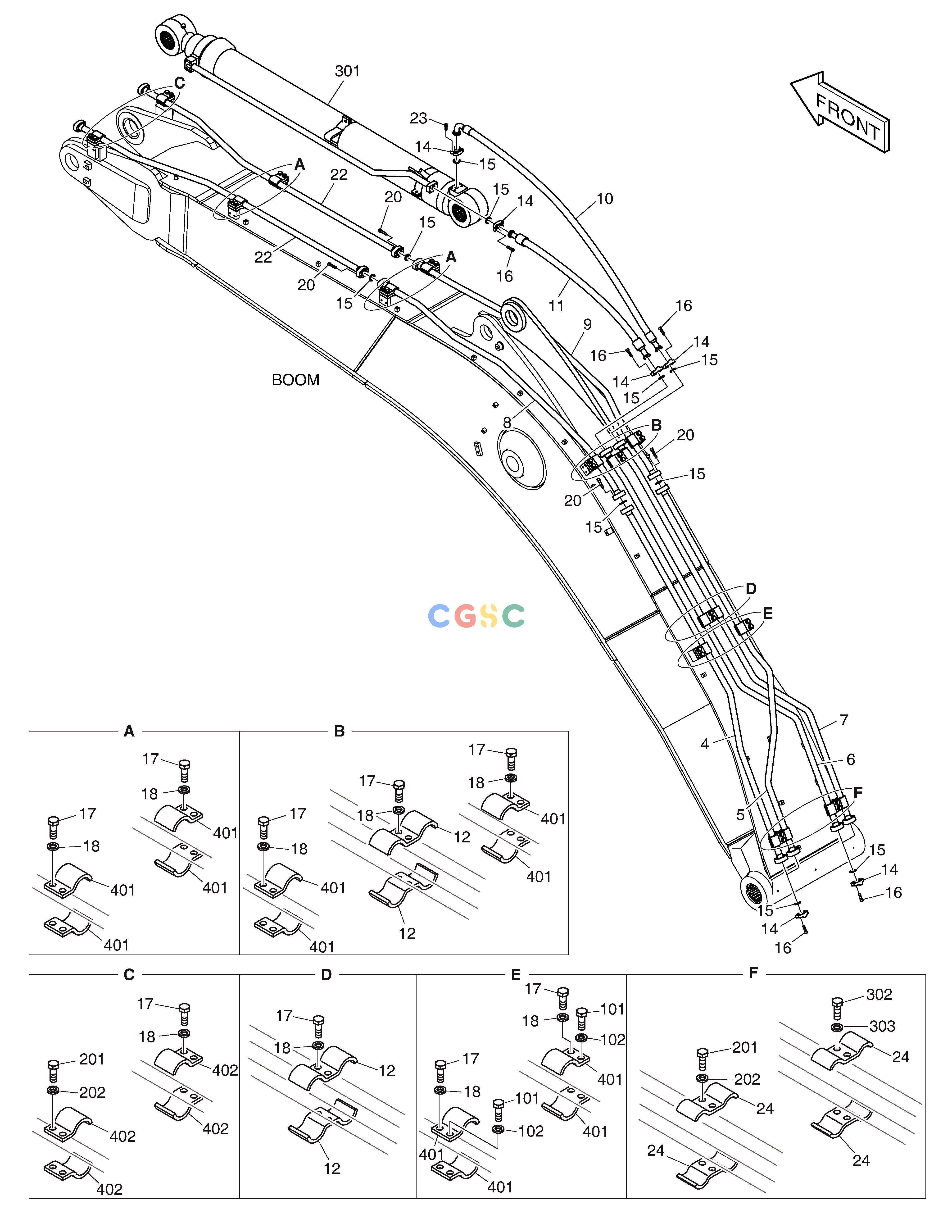

斗山零件查询BOOM PIPING - 6.2m DX350LC Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
715 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-06170
|
[-] |
|
|
| 10. |
DS2040641
|
[1] |
|
|
| 101. |
S0563166
|
[2] |
BOLT M14X2.0X60
|
|
| 102. |
120804-00080
|
[2] |
WASHER
|
|
| 11. |
DS2038162
|
[1] |
HOSE PF1-1250L
|
|
| 12. |
120208-00319
|
[4] |
|
|
| 14. |
2181-9078
|
[16] |
FLANGE;SPLIT
|
|
| 15. |
DS2856003
|
[12] |
O-RING
|
|
| 16. |
S2212466
|
[28] |
BOLT
|
|
| 17. |
S0563166
|
[20] |
BOLT M14X2.0X60
|
|
| 18. |
120804-00080
|
[20] |
WASHER
|
|
| 20. |
S2212666
|
[16] |
BOLT;SOCKET M10X1.5X50
|
|
| 201. |
S0563166
|
[4] |
BOLT M14X2.0X60
|
|
| 202. |
120804-00080
|
[4] |
WASHER
|
|
| 22. |
420207-01736A
|
[2] |
|
|
| 23. |
S2212266
|
[4] |
BOLT
|
|
| 24. |
120208-00318
|
[4] |
|
|
| 301. |
400305-00055E
|
[1] |
|
|
| 302. |
S0563166
|
[2] |
BOLT M14X2.0X60
|
|
| 303. |
120804-00080
|
[2] |
WASHER
|
|
| 4. |
420207-00274B
|
[1] |
|
|
| 401. |
120208-00320
|
[16] |
|
|
| 402. |
120208-00333
|
[4] |
|
|
| 5. |
420207-00275B
|
[1] |
|
|
| 6. |
420207-01732A
|
[1] |
|
|
| 7. |
420207-01733A
|
[1] |
|
|
| 8. |
420207-01734A
|
[1] |
|
|
| 9. |
420207-01735A
|
[1] |
|
|
