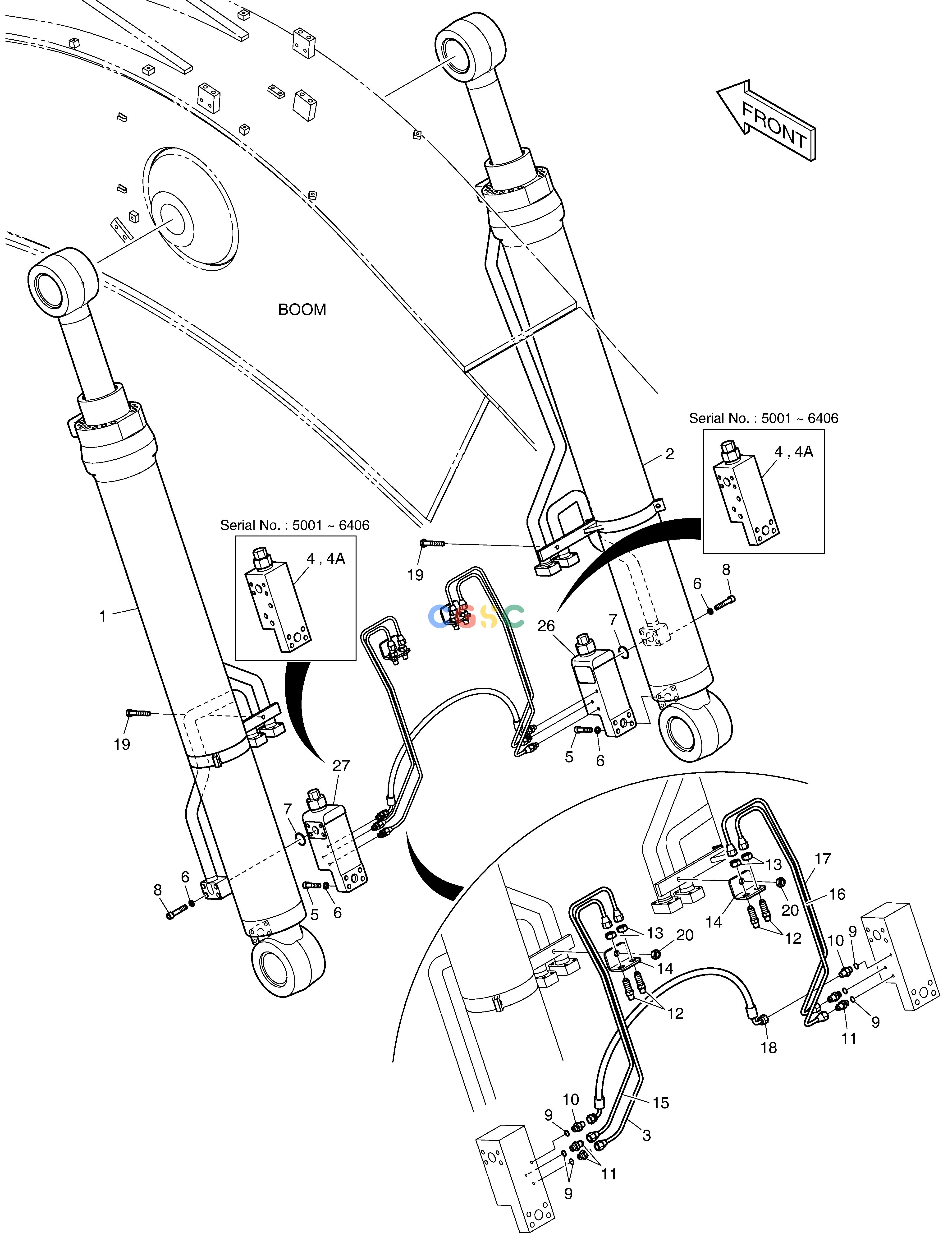

斗山零件查询BOOM PIPING - LOCK VALVE DX350LC Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
389 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1006233
|
[-] |
BOOM PIPING-LOCK VALVE
|
|
| -. |
420212-02138
|
[-] |
|
|
| 1. |
K1006234
|
[1] |
CYLINDER;BOOM(L.H)
|
400309-00086
|
| 1. |
400309-00086
|
[1] |
|
|
| 10. |
2181-1126D14
|
[2] |
ADAPTER
|
|
| 11. |
2181-1916D5
|
[4] |
ADAPTER
|
|
| 12. |
2181-1923D12
|
[4] |
ADAPTER
|
|
| 13. |
S4032833
|
[4] |
NUT
|
|
| 14. |
195-01535A
|
[2] |
BRACKET
|
|
| 15. |
140-01093A
|
[1] |
PIPE
|
|
| 16. |
140-01094A
|
[1] |
PIPE
|
|
| 17. |
140-01095A
|
[1] |
PIPE
|
|
| 18. |
DS2059383
|
[1] |
HOSE PF1/4-800L
|
|
| 19. |
S0561466
|
[2] |
BOLT
|
|
| 2. |
K1006235
|
[1] |
CYLINDER;BOOM(R.H)
|
400309-00087
|
| 2. |
400309-00087
|
[1] |
|
|
| 20. |
S4012733
|
[2] |
NUT
|
|
| 26. |
410114-00049
|
[1] |
|
|
| 27. |
410114-00050
|
[1] |
|
|
| 3. |
140-01092A
|
[1] |
PIPE
|
|
| 4. |
420-00004A
|
[2] |
VALVE;LOCK
|
|
| 4A. |
K9000999
|
[1] |
SEAL KIT
|
|
| 5. |
S2215766
|
[8] |
BOLT
|
|
| 6. |
S5110703
|
[16] |
WASHER
|
|
| 7. |
S8000341
|
[2] |
O-RING
|
|
| 8. |
S2215866
|
[8] |
BOLT;SOCKET M12X1.75X60
|
|
| 9. |
S8000111
|
[6] |
O-RING
|
|
