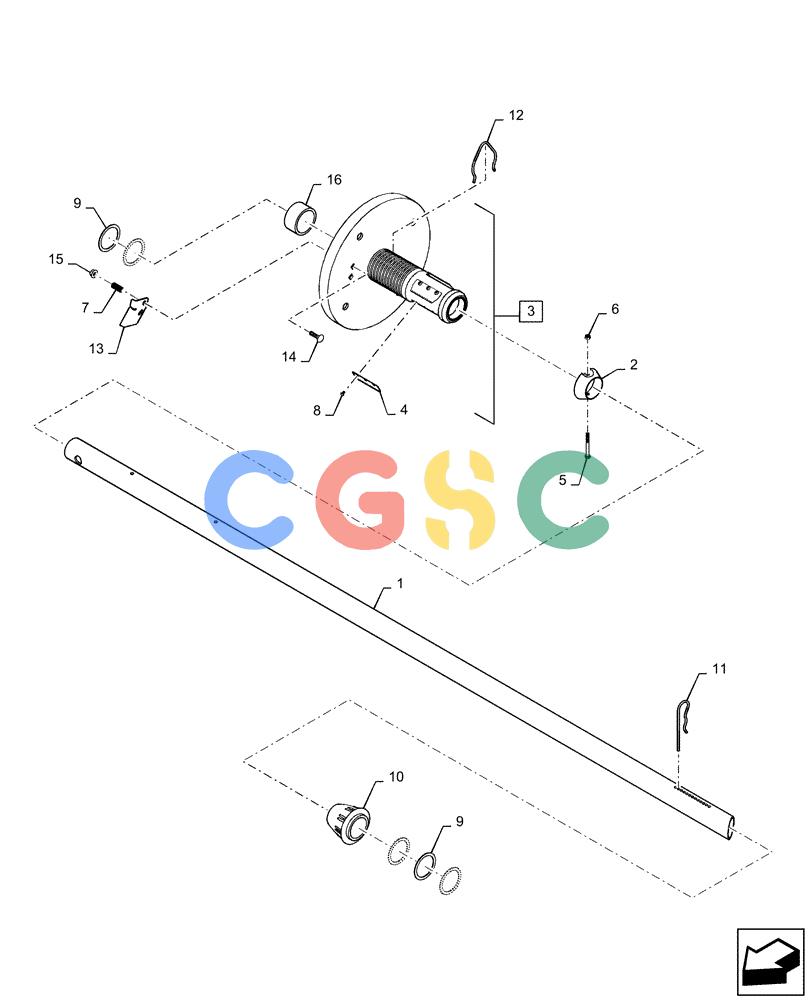

凯斯零件查询(RB565) - CASE IH ROUND BALER (3/14-12/15) (68.170.AF[02]) - NET WRAP ROLL Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
704 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
84568704
|
[1] |
RIGID TUBE
|
NH
|
| 2. |
87016039
|
[1] |
CONE
|
PA
|
| 3. |
47936342
|
[1] |
BRAKE DRUM
|
NH
Incl 16
|
| 4. |
86627923
|
[4] |
STRIP
|
NH
|
| 5. |
338413
|
[2] |
BOLT,Hex, M6 x 60mm, Cl 8.8
|
NH
|
| 6. |
353308
|
[2] |
NUT,M6 x 1.0, Cl 8
|
NH
|
| 7. |
29840
|
[1] |
SPRING,Compression, 11.91mm OD x 25.4mm L
|
NH
|
| 8. |
87684280
|
[12] |
SELF-TAP SCREW,Pan, #8 - 18 x 1/4"
|
NH
|
| 9. |
87016189
|
[4] |
WASHER,51.18mm ID x 63.5mm OD x 1.65mm Thk
|
PA
|
| 10. |
86540330
|
[1] |
GUIDE
|
NH
|
| 11. |
86601285
|
[1] |
COTTER PIN,26mm OD x 118.5mm L
|
NH
|
| 12. |
86613336
|
[1] |
COTTER PIN
|
NH
|
| 13. |
47401690
|
[1] |
STOP
|
PLO
|
| 14. |
120038
|
[2] |
CARRIAGE BOLT,Rnd Head, M8 x 1.25 x 30mm, Cl 8.8, Full Thd
|
NH
Superseded by part number: 811-8030
|
| 15. |
86619801
|
[2] |
FLANGE NUT,M8 x 1.25, Cl 8
|
PA
Superseded by part number: 87681210
|
| 16. |
86617942
|
[1] |
BUSHING,48.96mm ID x 57.23mm OD x 19.1mm L
|
NH
|
