斗山零件查询BOOM PIPING - ONE & TWO WAY DX350LC Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
681 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-05345
|
[-] |
|
|
| -. |
K1006212B
|
[-] |

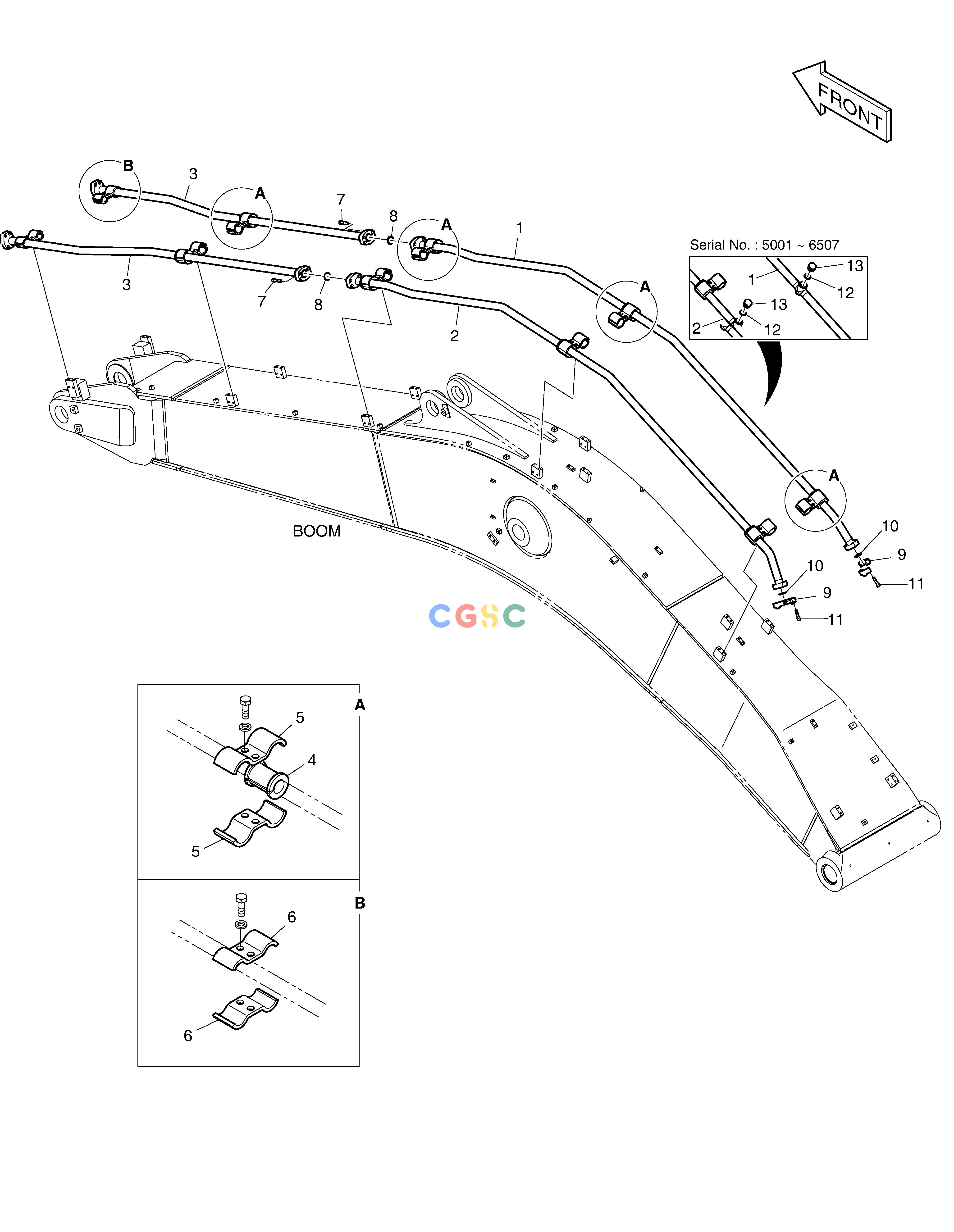

BOOM PIPING (ONE&TWO WAY)
|
|
| 1. |
420207-01486
|
[1] |
|
420207-01486A
|
| 1. |
420207-01486A
|
[1] |
|
|
| 1. |
K1006213A
|
[1] |
PIPE
|
|
| 10. |
2180-1026D19
|
[2] |
O-RING
|
|
| 11. |
S2215666
|
[8] |
BOLT;SOCKET
|
|
| 12. |
S8000291
|
[2] |
O-RING
|
|
| 13. |
2181-1950D9
|
[2] |
PLUG
|
|
| 2. |
420207-01487
|
[1] |
|
420207-01487A
|
| 2. |
420207-01487A
|
[1] |
|
|
| 2. |
K1006214A
|
[1] |
PIPE
|
|
| 3. |
420207-01488
|
[2] |
|
|
| 3. |
K1006215
|
[2] |
PIPE
|
|
| 4. |
180308-00236
|
[8] |
|
|
| 4. |
161-00280
|
[8] |
RUBBER
|
180308-00236
|
| 5. |
K1004059
|
[16] |
CLAMP
|
|
| 6. |
K1004060
|
[4] |
CLAMP
|
|
| 7. |
S2218766
|
[8] |
BOLT;SOCKET
|
|
| 8. |
2180-1026D23
|
[2] |
O-RING
|
|
| 9. |
2181-9081
|
[4] |
FLANGE;SPLIT
|
|
