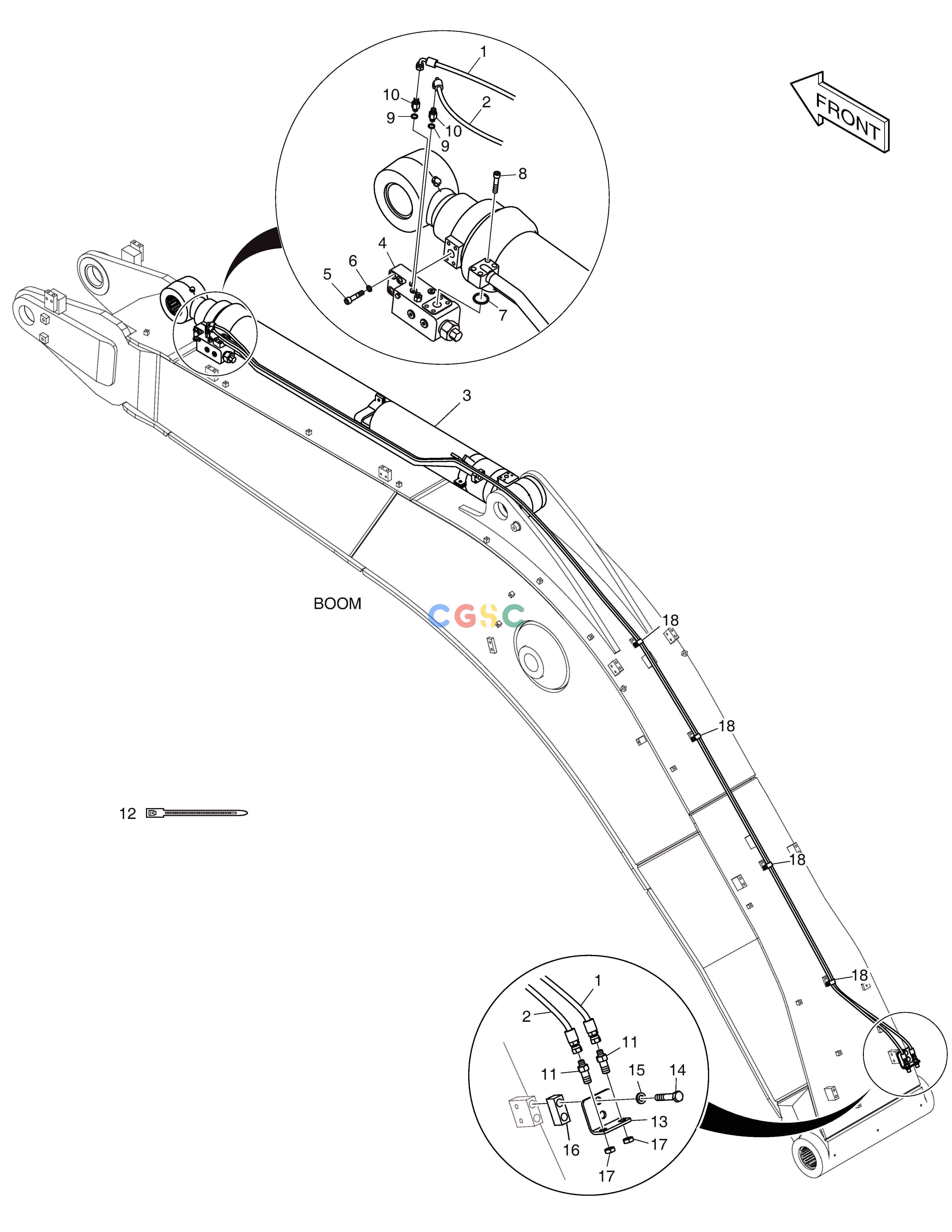

斗山零件查询BOOM PIPING - LOCK VALVE(BOOM 6.2m) DX350LC Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
241 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-06178
|
[-] |
|
|
| 1. |
2184-1046D268
|
[1] |
HOSE
|
|
| 10. |
2181-1126D75
|
[2] |
ADAPTER
|
|
| 11. |
181-00078D5
|
[2] |
ADAPTER
|
|
| 12. |
2124-1084D2
|
[30] |
CLIP;BAND
|
|
| 13. |
195-00163
|
[1] |
BRACKET
|
|
| 14. |
S0563666
|
[2] |
BOLT
|
|
| 15. |
120804-00080
|
[2] |
WASHER
|
|
| 16. |
250107-00486
|
[1] |
|
|
| 17. |
121-00010D1
|
[2] |
NUT
|
|
| 18. |
124-00199D5
|
[4] |
CLIP
|
|
| 2. |
2184-1046D268
|
[1] |
HOSE
|
|
| 3. |
400305-00056G
|
[1] |
|
|
| 4. |
410114-00201A
|
[1] |
|
|
| 5. |
S2215766
|
[4] |
BOLT
|
|
| 6. |
S5110703
|
[4] |
WASHER
|
|
| 7. |
DS2856003
|
[1] |
O-RING
|
|
| 8. |
S2215566
|
[4] |
BOLT;SOCKET
|
|
| 9. |
S8000111
|
[2] |
O-RING
|
|
