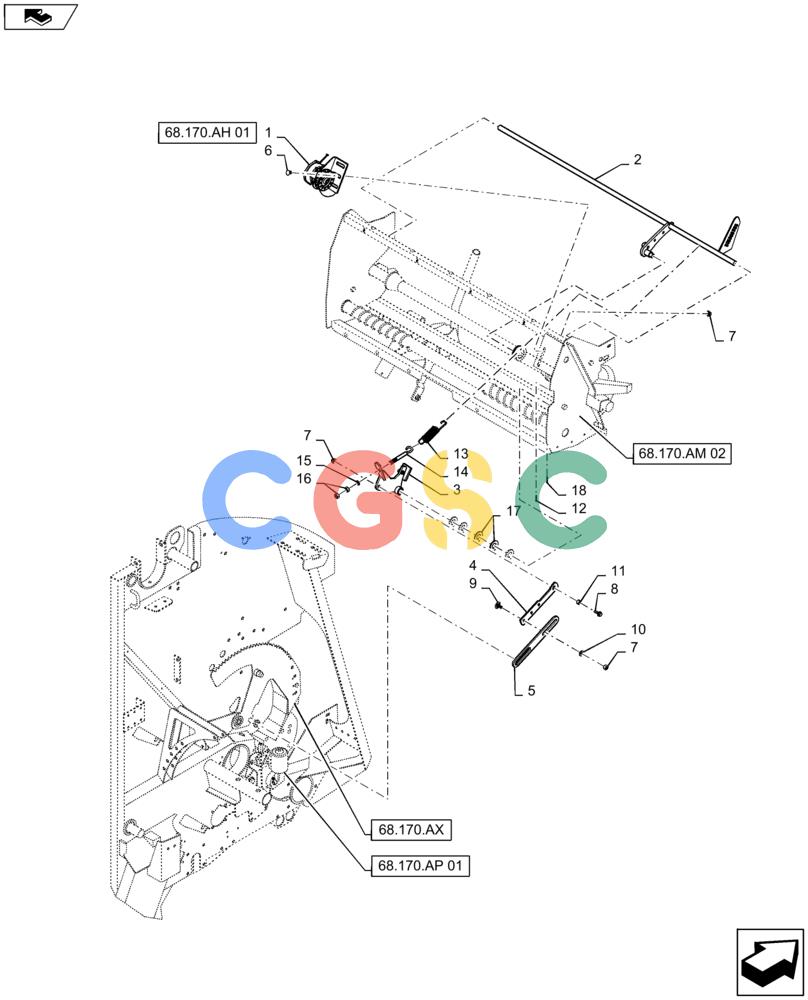

凯斯零件查询(RB565) - CASE IH ROUND BALER (3/14-12/15) (68.170.AH[02]) - DUCKBILL DRIVE MOUNTING PARTS Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
345 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
0C
|
[1] |
ORDER COMPONENTS
|
NH
Duckbill Drive
|
| 2. |
47447547
|
[1] |
SHAFT
|
NH
|
| 4. |
84568800
|
[1] |
PLATE
|
PLO
|
| 5. |
84568797
|
[1] |
ANGLE
|
PLO
|
| 6. |
120041
|
[2] |
CARRIAGE BOLT,M10 x 20mm, Cl 8.8
|
NH
|
| 7. |
9804278
|
[5] |
FLANGE NUT,M10 x 1.5, Cl 8
|
NH
|
| 8. |
9804262
|
[2] |
BOLT,M10 x 39.2mm, Cl 8.8
|
NH
Superseded by part number: 9840672
|
| 9. |
86633356
|
[2] |
CARRIAGE BOLT,M10 x 34.8mm, Cl 8.8
|
ZED
|
| 10. |
140045
|
[2] |
BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk
|
NH
|
| 11. |
698748
|
[1] |
BUSHING,10.3mm ID x 15.88mm OD x 9.53mm L
|
NH
Superseded by part number: 626698
|
| 12. |
280251
|
[1] |
COTTER PIN,3/32" OD x 1" OAL
|
BHB
|
| 13. |
87605373
|
[1] |
SPRING,Extension, 1-3/8" OD x 13-1/4" L
|
NH
|
| 14. |
144403
|
[1] |
EYEBOLT
|
NH
|
| 15. |
83918746
|
[1] |
WASHER,0.34" ID x 0.69" OD x 0.07" Thk
|
FOR
Superseded by part number: 44722S36
|
| 16. |
9635082
|
[2] |
NUT,5/16" - 18, Gr 5
|
NH
|
| 17. |
86624166
|
[5] |
WASHER,0.91" ID x 1.5" OD x 0.06" Thk
|
FOR
|
