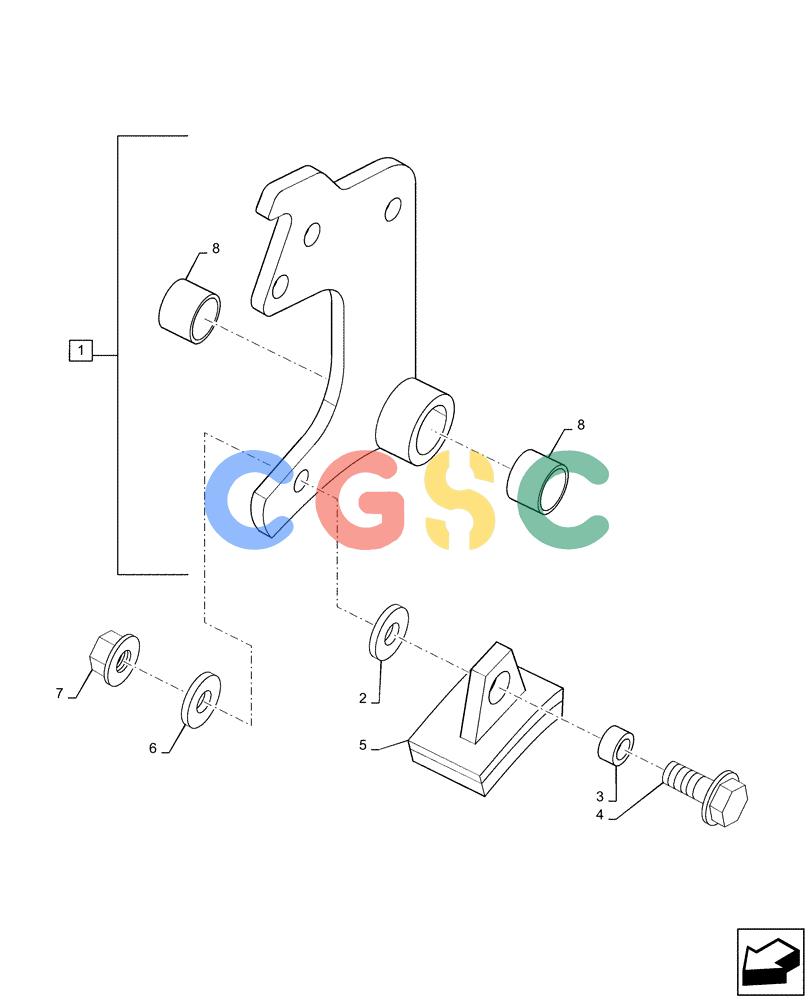

凯斯零件查询(RB565) - CASE IH ROUND BALER (3/14-12/15) (68.170.AM[01]) - NET WRAP BRAKE Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
890 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
47521205
|
[1] |
SUPPORT
|
NH
Inc 8
|
| 2. |
9827956
|
[1] |
WASHER,10.3mm ID x 25.4mm OD x 2.67mm Thk
|
NH
|
| 3. |
84024749
|
[1] |
SPACER,10.5mm ID x 16mm OD x 8.5mm L
|
PA
|
| 4. |
9804262
|
[1] |
BOLT,M10 x 39.2mm, Cl 8.8
|
NH
Superseded by part number: 9840672
|
| 5. |
86641342
|
[1] |
BRAKE PAD,17.37mm Thk
|
NH
|
| 6. |
140045
|
[1] |
BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk
|
NH
|
| 7. |
9804278
|
[1] |
FLANGE NUT,M10 x 1.5, Cl 8
|
NH
|
| 8. |
84024585
|
[2] |
BUSHING,20mm ID x 23mm OD x 15mm Thk
|
PA
Incl in 1
|
