纽荷兰零件查询(D95B) - CRAWLER DOZER TIER 3 (3/08-) (09-05A) - RIPPER (IF USED) New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
911 次

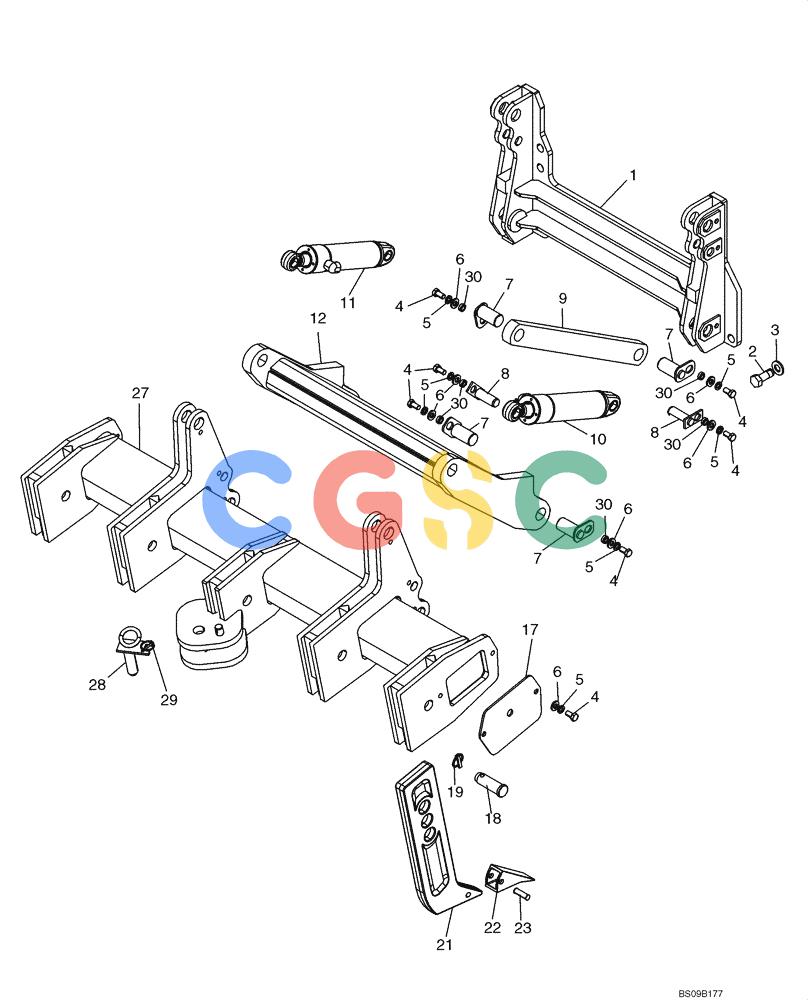

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 87483171 | [1] | MOUNTING PARTS | BURBracket |
| 2. | 410-91640 | [10] | BOLT,Hex, 1" - 8 x 2 1/2", Gr 8 | CAS |
| 3. | 496-31106 | [10] | WASHER,1 1/16" x 2" x .219", HDN | CAS Superseded by part number: 87024780 |
| 4. | 614-16030 | [16] | BOLT,Hex, M16 x 2 x 30mm, Cl 8.8, Full Thd | CAS Superseded by part number: 43167 |
| 5. | 892-11016 | [16] | LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk | CAS Superseded by part number: 87016618 |
| 6. | 896-15016 | [16] | WASHER,17.5mm ID x 34mm OD x 5mm Thk | CAS Superseded by part number: 82848079, 86639326 |
| 7. | 87407973 | [8] | PIN, LOCKING | BUR |
| 8. | 87407974 | [4] | PIN, LOCKING | BUR |
| . . | 87436760 | [1] | RIPPER | BURRipper Kit; Includes Shanks, Cylinders, Tool Bar, and Upper and Lower Arms; Incl. Ref 9 - 12; 87436762, Ref 21 - 23; Ref 27 |
| 9. | 87436764 | [2] | ARM ASSY. | BURUpper |
| 10. | 87436768 | [1] | CYLINDER ASSY.,Double Acting, 44.5mm Rod, 213.3mm Stroke | CAS83 ID x 206 mm strk; Right-Hand; Ripper; See Figure 08-14 |
| 10. | 87436768R | [1] | REMAN-HYD CYLINDER | CASD95B TIER 3 (3/08-) |
| 10. | 87436768C | [1] | CORE-HYD CYLINDER | CASReturn Number |
| 11. | 87436767 | [1] | CYLINDER ASSY.,Double Acting, 44.5mm Rod, 213.3mm Stroke | CAS83 ID x 206 mm strk; Left-Hand; Ripper; Not Illustrated; See Figure 08-14 |
| 11. | 87436767R | [1] | REMAN-HYD CYLINDER | CASD95B TIER 3 (3/08-) |
| 11. | 87436767C | [1] | CORE-HYD CYLINDER | CASReturn Number |
| 12. | 87436765 | [1] | ARM ASSY. | BURLower |
| 17. | 87436761 | [2] | COVER ASSY | BUR |
| 18. | 87408425 | [3] | PIN,38.05mm OD x 120mm L | BURShank Mounting |
| 19. | 378704A1 | [3] | LOCK PIN | CAS |
| . . | 87436762 | [3] | BUCKET TOOTH SHANK | BURIncl. Ref 21 - 23 |
| 21. | 87436763 | [1] | BUCKET TOOTH SHANK | BUR Superseded by part number: 87406388 |
| 22. | L55608 | [1] | POINT | CAS Superseded by part number: 87411607 |
| 23. | D39448 | [1] | PIN | CAS |
| 27. | 87436766 | [1] | BAR ASSY. | BURTool Bar |
| 28. | 431997A1 | [1] | TOWBAR PIN | BUR |
| 29. | A30338 | [1] | PIN | CAS Superseded by part number: 270184 |
| 30. | 86993730 | [12] | SPACER | BURUsed As A Spacer |
