凯斯零件查询(RB565) - CASE IH ROUND BALER (3/14-12/15) (68.170.AM[02]) - VAR - 726666, 726964 - NET WRAP STATIONARY ROLL BRAKE TENSIONER, YFN188619 AND AFTER Case Agriculture_凯斯Case_工程机械

凯斯零件查询(RB565) - CASE IH ROUND BALER (3/14-12/15) (68.170.AM[02]) - VAR - 726666, 726964 - NET WRAP STATIONARY ROLL BRAKE TENSIONER, YFN188619 AND AFTER Case Agriculture

广数供应链运营团队, 14 02月, 2025，浏览： 202 次

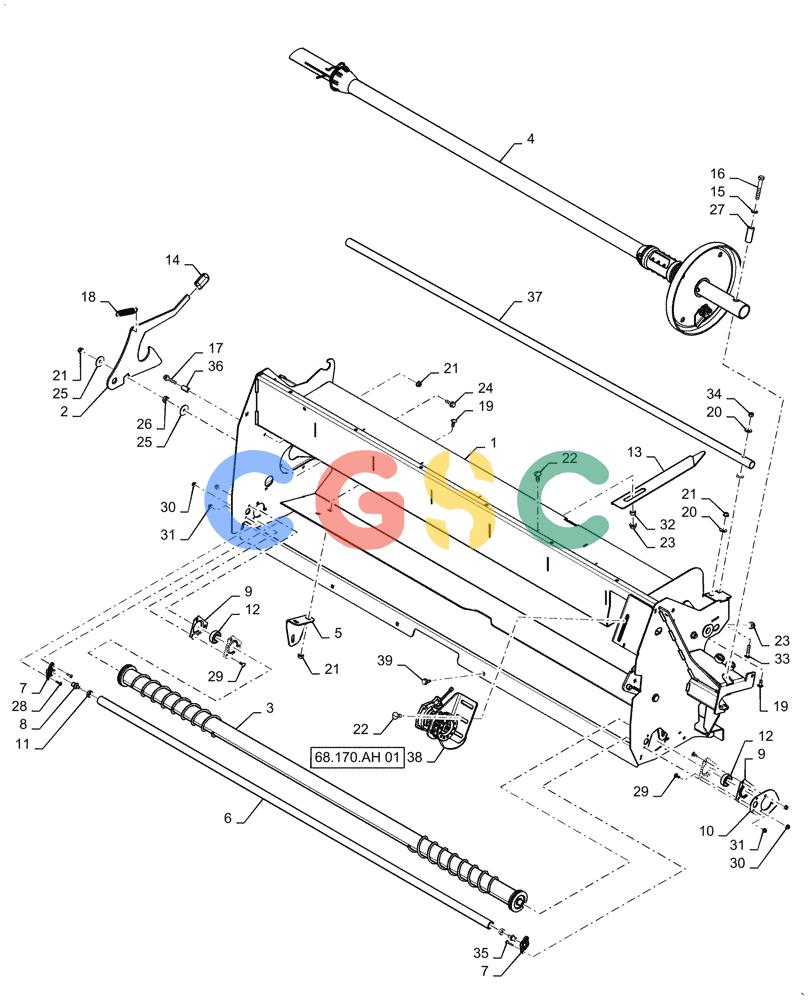

Pos.	Part No	Qty	Parts name	Comments
1.	47708453	[1]	SUPPORT	NH
2.	47754342	[1]	LATCH	NH
3.	47709290	[1]	ROLL	NH Spreader
4.	0C	[1]	ORDER COMPONENTS	NH Net Roll Tube
5.	47783704	[1]	MOUNT	NH
6.	47709218	[1]	SHAFT,25.4mm OD x 1746.6mm L	NH Smooth
7.	47747997	[2]	BUSHING	NH
8.	47709227	[2]	SUPPORT	NH
9.	47751063	[4]	FLANGE	NH
10.	47709248	[1]	PLATE	NH
11.	47751055	[2]	BALL BEARING	NH
12.	47751060	[2]	BALL BEARING	NH
13.	47463692	[1]	SUPPORT	NH
14.	86516827	[1]	HANDLE	NH
15.	140017	[1]	WASHER,M10 x 20mm OD x 2mm Thk	PA Superseded by part number: 9820489
16.	43144	[1]	BOLT,Hex, M10 x 70mm, Cl 8.8	NH Superseded by part number: 87015537
17.	86511842	[1]	BOLT,M8 x 1.25 x 48.1mm OAL, Cl 8.8	NH
18.	87109697	[1]	SPRING	GI
19.	86507486	[3]	CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8	NH
20.	80664	[3]	WASHER,0.38" ID x 0.88" OD x 0.08" Thk	NH
21.	9804277	[5]	FLANGE NUT,Hex, M8 x 1.25, Cl 8	NH Superseded by part number: 86505868
22.	86633356	[1]	CARRIAGE BOLT,M10 x 34.8mm, Cl 8.8	ZED
23.	9804278	[1]	FLANGE NUT,M10 x 1.5, Cl 8	NH
24.	9671714	[1]	FLANGE BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8	NH
25.	80577826	[2]	WASHER,8.7mm ID x 34.93mm OD x 1.94mm Thk	NH
26.	859896	[1]	SPACER	NH
27.	47420685	[1]	SPACER	NH Net Tube
28.	60485	[2]	SCREW,Slotted Truss Hd, #10-24 x 3/4"	NH
29.	86512439	[3]	CARRIAGE BOLT,M6 x 16mm, Cl 8.8	NH
30.	9804276	[7]	FLANGE NUT,Hex, M6 x 1, Cl 8	NH
31.	523310	[4]	SERRATED NUT,Flng, #10 - 24, Gr 5	BEL
32.	133095	[1]	SPACER,10.32mm ID x 15.85mm OD x 7.9mm L	NH
33.	86512444	[1]	CARRIAGE BOLT,M8 x 1.25 x 40mm, Full Thd, Cl 8.8	NH
34.	86629542	[1]	NUT,M8 x 1.25, Cl 8.8	ZED
35.	84464	[2]	SCREW,Slotted Truss Hd, #10 - 24 x 1"	GI
36.	27695	[1]	BUSHING,9.53mm ID x 12.83mm OD x 25.4mm L	GI
37.	47465287	[1]	SHAFT,25mm OD x 1798mm L	NH
39.	87034817	[4]	SELF-TAP SCREW,HWH, 5/16" - 18 x 3/4"	CAS
