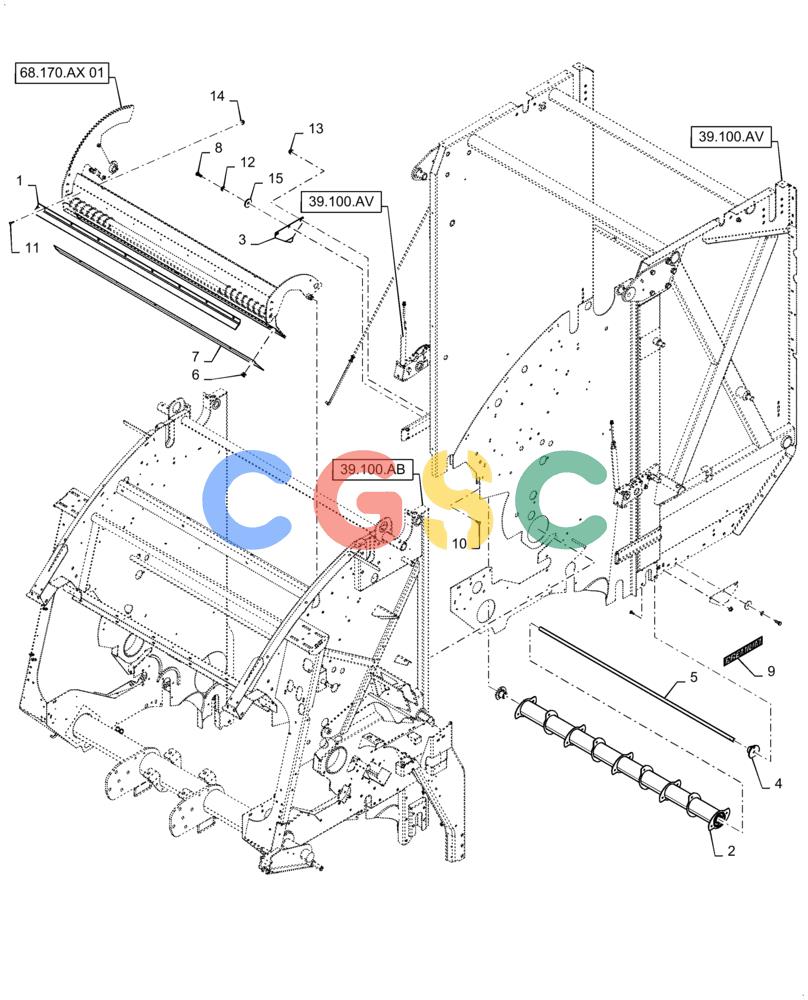

凯斯零件查询(RB565) - CASE IH ROUND BALER (3/14-12/15) (68.170.AX[02]) - NET WRAP, DUCKBILL, PREMIUM PACKAGE Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
470 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
47420563
|
[1] |
BRUSH
|
NH
Wrapper
|
| 2. |
47510516
|
[1] |
ROLL
|
NH
Expeller
|
| 3. |
47464796
|
[2] |
SHIELD
|
PLO
|
| 4. |
86521602
|
[2] |
SUPPORT
|
NH
Superseded by part number: 87023400
|
| 5. |
9608117
|
[1] |
SHAFT
|
NH
Expeller Roll Superseded by part number: 87023401
|
| 6. |
86637656
|
[7] |
RIVET,Pop, 1/8" x .337"
|
FAR
|
| 7. |
47492758
|
[1] |
PLATE
|
NH
|
| 8. |
9706687
|
[2] |
BOLT,M12 x 1.75 x 30mm, Cl 8.8
|
NH
|
| 9. |
47452763
|
[2] |
DECAL
|
NH
Premium
|
| 10. |
86507486
|
[4] |
CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8
|
NH
|
| 11. |
86512439
|
[8] |
CARRIAGE BOLT,M6 x 16mm, Cl 8.8
|
NH
|
| 12. |
29684
|
[2] |
WASHER,13.5mm ID x 50.8mm OD x 5.52mm Thk
|
NH
|
| 13. |
9804277
|
[4] |
FLANGE NUT,Hex, M8 x 1.25, Cl 8
|
NH
Superseded by part number: 86505868
|
| 14. |
9804276
|
[8] |
FLANGE NUT,Hex, M6 x 1, Cl 8
|
NH
|
| 15. |
65319
|
[2] |
WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk
|
NH
|
