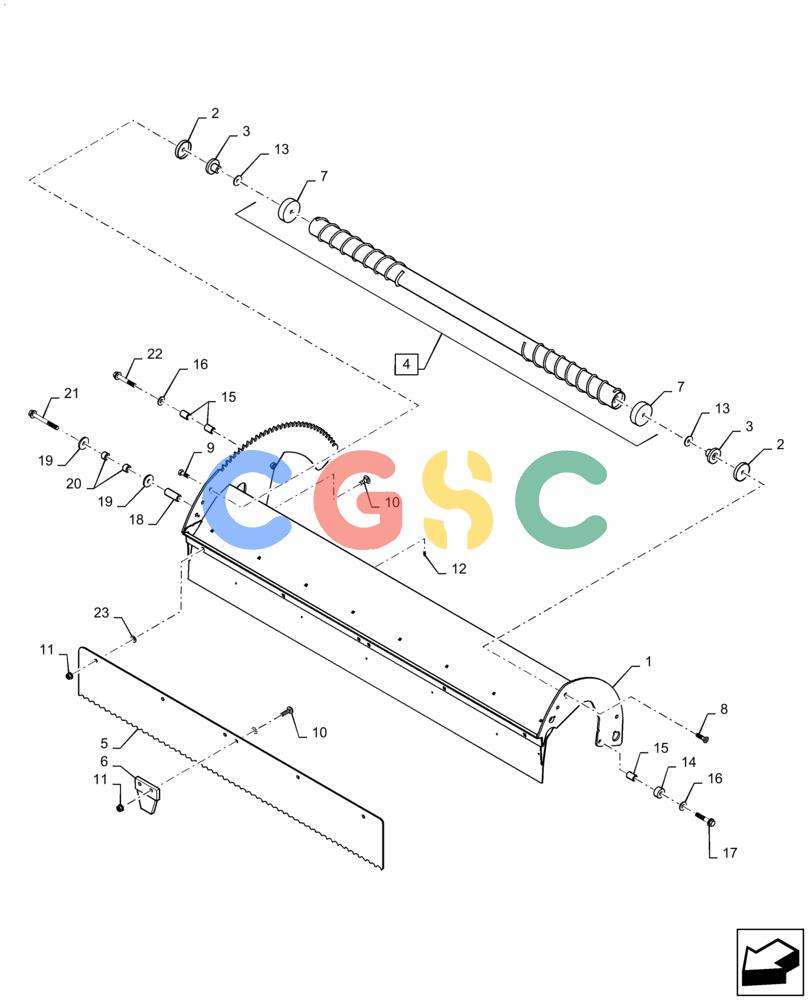

| 1. |
47516513
|
[1] |
FRAME
|
NH
Duckbill
|
| 2. |
86622552
|
[4] |
SHIELD
|
PA
|
| 3. |
87643130
|
[4] |
SUPPORT
|
NH
|
| 4. |
87397765
|
[2] |
ROLL
|
PA
Spreader, Incl 7
|
| 5. |
47942308
|
[1] |
BAFFLE
|
NH
1.5mm Thk.
|
| 5. |
47781433
|
[1] |
BAFFLE
|
NH
1.2mm Thk., Optional
|
| 6. |
84600537
|
[1] |
PLATE
|
NH
|
| 7. |
27291
|
[4] |
BALL BEARING,20mm ID x 47mm OD x 14mm W
|
NH
Superseded by part number: 84330054
|
| 8. |
280760
|
[1] |
HEX SOC SCREW,FLAT, 3/8" - 16 x 1-1/2"
|
NH
|
| 9. |
88206
|
[3] |
BOLT,Hex, 3/8" - 16 x 1", Gr 5
|
NH
|
| 10. |
86619060
|
[4] |
CARRIAGE BOLT,M8 x 1.25 x 16mm, Cl 8.8
|
NH
|
| 11. |
9804277
|
[4] |
FLANGE NUT,Hex, M8 x 1.25, Cl 8
|
NH
Superseded by part number: 86505868
|
| 12. |
87414
|
[1] |
LUBE NIPPLE,1/4" - 28
|
NH
|
| 13. |
794034
|
[4] |
WASHER,20.96mm ID x 28.7mm OD x 1.7mm Thk
|
NH
|
| 14. |
87642987
|
[1] |
BUSHING,18.23mm ID x 28.61mm OD x 15.75mm L
|
NH
|
| 15. |
87643020
|
[3] |
BUSHING,12.7mm ID x 17.5mm OD x 27.69mm L
|
NH
|
| 16. |
86511324
|
[2] |
WASHER,13mm ID x 24mm OD x 2.5mm Thk
|
NH
Superseded by part number: 87364
|
| 17. |
9804264
|
[1] |
FLANGE BOLT,M10 x 50mm, 26mm Thd, Cl 8.8
|
NH
Superseded by part number: 16587625
|
| 18. |
84588555
|
[1] |
BUSHING,10.3mm ID x 15.85mm OD x 68mm L
|
NH
|
| 19. |
86625253
|
[2] |
WASHER,11mm ID x 24mm OD x 2mm Thk
|
FAR
|
| 20. |
698748
|
[2] |
BUSHING,10.3mm ID x 15.88mm OD x 9.53mm L
|
NH
Superseded by part number: 626698
|
| 21. |
86508573
|
[1] |
BOLT,Hex, M10 x 110mm, Cl 8.8
|
NH
|
| 22. |
86507311
|
[1] |
BOLT,Hex, M10 x 80mm, Cl 8.8
|
NH
|
| 23. |
47942270
|
[8] |
WASHER,7.5mm ID x 20mm OD x 1.5mm Thk
|
NH
Rubber
|
