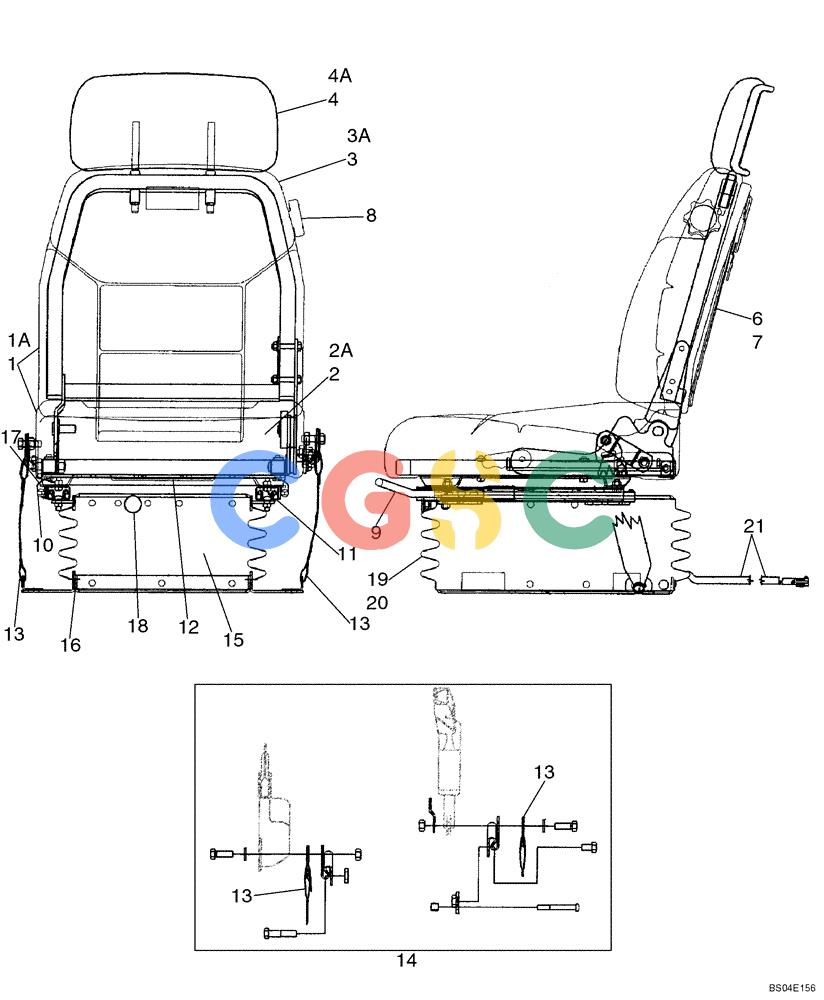

| . . | 87450940 | [1] | SEAT ASSY. | BURAir Suspension; Black Vinyl; Incl. Ref 1, 2, 3, 4, 5 - 21 |
| . . | 87450939 | [1] | SEAT ASSY. | BURAir Suspension; Gray Cloth; Incl. Ref 1A, 2A, 3A, 4A, 5 - 21 |
| 1. | 87454143 | [1] | SEAT ACCESSORY | BURSeat; Black Vinyl; Includes Seat and Backrest Cushion |
| 1A. | 87454147 | [1] | SEAT ACCESSORY | BURSeat; Gray Cloth; Includes Seat and Backrest Cushion |
| 2. | 87454144 | [1] | SEAT ACCESSORY | BURCushion, Seat, Black Vinyl |
| 2A. | 87454148 | [1] | SEAT ACCESSORY | BURCushion, Seat, Gray Cloth |
| 3. | 87454145 | [1] | SEAT ACCESSORY | BURBackrest Cushion, Black Vinyl |
| 3A. | 87454149 | [1] | SEAT ACCESSORY | BURBackrest Cushion, Gray Cloth |
| 4. | 87454146 | [1] | SEAT ACCESSORY | BURBackrest, Upper, Black Vinyl |
| 4A. | 87454150 | [1] | SEAT ACCESSORY | BURBackrest, Upper, Gray Cloth |
| 5. | 176091A1 | [1] | PACKAGE,SERVICE | CASKit, Hog Ring; Cushion Retainer; Package Of 50; Not Illustrated |
| . . | 87405470 | [1] | SEAT ACCESSORY | BURCover, Back; Includes Manual Holder; Incl. 6, 7 Superseded by part number: 86639817 |
| 6. | NSS | [1] | NOT SERVICED SEPARATELY | CONCover, Back; Includes Manual Holder |
| 7. | 1999693C1 | [1] | KIT | IHClip; Package Of 12 |
| 8. | 1987212C1 | [1] | PACKAGE | IHBack Tilt Knob; Includes Knob, Handle, Screw |
| 9. | 87405471 | [1] | SEAT ACCESSORY | BURLever, Slide Release |
| 10. | 86990111 | [1] | SEAT ACCESSORY | BURSlide; 6 in. Travel |
| 11. | 86990112 | [1] | SEAT ACCESSORY | BURSlide; 6 in. Travel |
| 12. | 182991A1 | [1] | LARGE PLATE | CASPLATE, LARGE Adapter Superseded by part number: 86641127 |
| 13. | 86990113 | [2] | BELT | BURTether |
| 14. | 389085A1 | [1] | KIT | CASSeat Belt Mounting; Includes (2) Brackets, (3) Spacers, (1) Plate, (6) Bolts, (2) Nuts |
| 15. | 86990128 | [1] | SEAT ACCESSORY | BURSuspension Assembly, Air; Boxed |
| . . | 1344249C1 | [1] | KIT | IHKit, Roller Tube Bearing; Includes (4) Tube Bearings, (6) Rollers, (2) Suspension Shock Bearings, (1) 131-425 Push Nuts, (1) A45519 Plastic Washer Superseded by part number: 9845762 |
| . . | 197793A1 | [1] | SPRING | CASKit, Air Spring; Includes (1) Spring, (1) J-Clamp, (3) L18337 Tie Straps |
| . . | 86990132 | [2] | SEAT ACCESSORY | BURShaft; Bearing Superseded by part number: 84129542 |
| . . | 86990131 | [1] | SEAT ACCESSORY | BURArm, Suspension |
| 16. | 86990129 | [1] | SEAT ACCESSORY | BURHousing; Lower; Boxed |
| 17. | 86990130 | [1] | SEAT ACCESSORY | BURHousing; Upper; Boxed |
| . . | 389282A1 | [1] | KIT | CASShock Absorber; Includes (1) Shock, (2) Bearings, (1) Push Nut |
| . . | 86990133 | [1] | SEAT ACCESSORY | BURKit, Air Compressor Superseded by part number: 84483563 |
| . . | 1981852C3 | [1] | SWITCH | IHValve, Air Control; Incl. Ref 18 Superseded by part number: 9845783 |
| 18. | 1987186C2 | [1] | KNOB | IHKnob, Air Control Valve; Includes Set Screw |
| . . | 133422A1 | [2] | BUMPER | CAS1 inch Diameter; Round |
| . . | A45054 | [1] | BUMPER | CAS1 x 1 in.; Square Superseded by part number: 276467 |
| . . | 180593A1 | [1] | KIT | CASKit, Bumper; Includes (2) Bumpers, (2) Spacers, (2) 340-12520 Screws, (2) 231-1444 Nuts |
| . . | 1990647C2 | [1] | KIT | IHKit, Boot; Incl. Ref 19, 20 Superseded by part number: 9845758 |
| 20. | 132872A1 | [1] | KIT | CASBoot Retainer; Includes (20) Retainers, (3) Push Nuts, (3) Clips Superseded by part number: 87347976 |
| 21. | 389281A1 | [1] | HARNESS | CAS |
