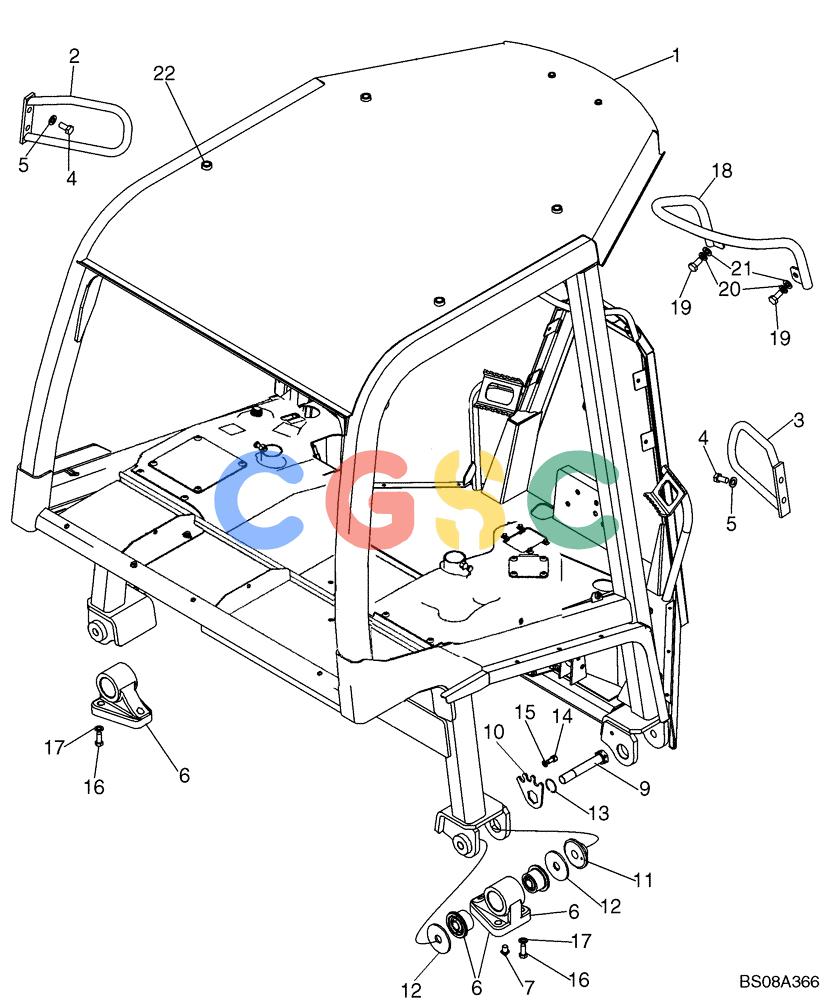

纽荷兰零件查询(D95B) - CRAWLER DOZER TIER 3 (3/08-) (09-18) - CANOPY, ROPS - FRAME, MOUNTING AND GRAB HANDLES New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
1009 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 87615109 | [1] | ROPS, Frame, ROPS Canopy | |
| 2. | 87444743 | [1] | HANDLE | BURGrab Handle, Left-Hand |
| 3. | 87444747 | [1] | HANDLE | BURGrab Handle, Right-Hand |
| 4. | 627-10020 | [4] | BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd | CAS Superseded by part number: 11106031 |
| 5. | 895-11010 | [4] | WASHER,11mm ID x 20mm OD x 2mm Thk | CAS Superseded by part number: 14496621 |
| 6. | 86983061 | [4] | SUPPORT ASSY. | BURIncludes (2) 79060730 Bushings; With Hole For Alignment Pin, Ref 7 |
| . . | 79060730 | [2] | BUSHING | LEC |
| 7. | 87311743 | [2] | SPECIAL PIN | BURAlignment |
| 9. | 79093830 | [4] | SCREW,Hex, M24 x 2 x 150mm | LEC |
| 10. | 79093828 | [4] | PLATE | LEC |
| 11. | 79084966 | [4] | BUSHING | LEC |
| 12. | 79085441 | [8] | WASHER,24.6mm ID x 90mm OD x 5mm Thk | LEC |
| 13. | 13398976 | [4] | SNAP RING,M40, Int | JES |
| 14. | 864-10020 | [4] | HEX SOC SCREW,M10 x 20mm, Cl 8.8 | CAS Superseded by part number: 86632600 |
| 15. | 892-11010 | [4] | LOCK WASHER,M10 | CAS Superseded by part number: 140028 |
| 16. | 11383631 | [12] | BOLT,Hex, M20 x 1.5 x 50, 10.9, Full Thd | LEC |
| 17. | 896-11020 | [12] | WASHER,22mm ID x 37mm OD x 4mm Thk | CAS Superseded by part number: 86625260 |
| 18. | 448838A1 | [1] | HANDLE | BURGrab Handle, Front |
| 22. | 353-429 | [4] | PLUG | CAS11/16 in Superseded by part number: 86625134 |
