纽荷兰零件查询(D95B) - CRAWLER DOZER TIER 3 (3/08-) (09-22) - CANOPY, ROPS - SCREENS New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
531 次

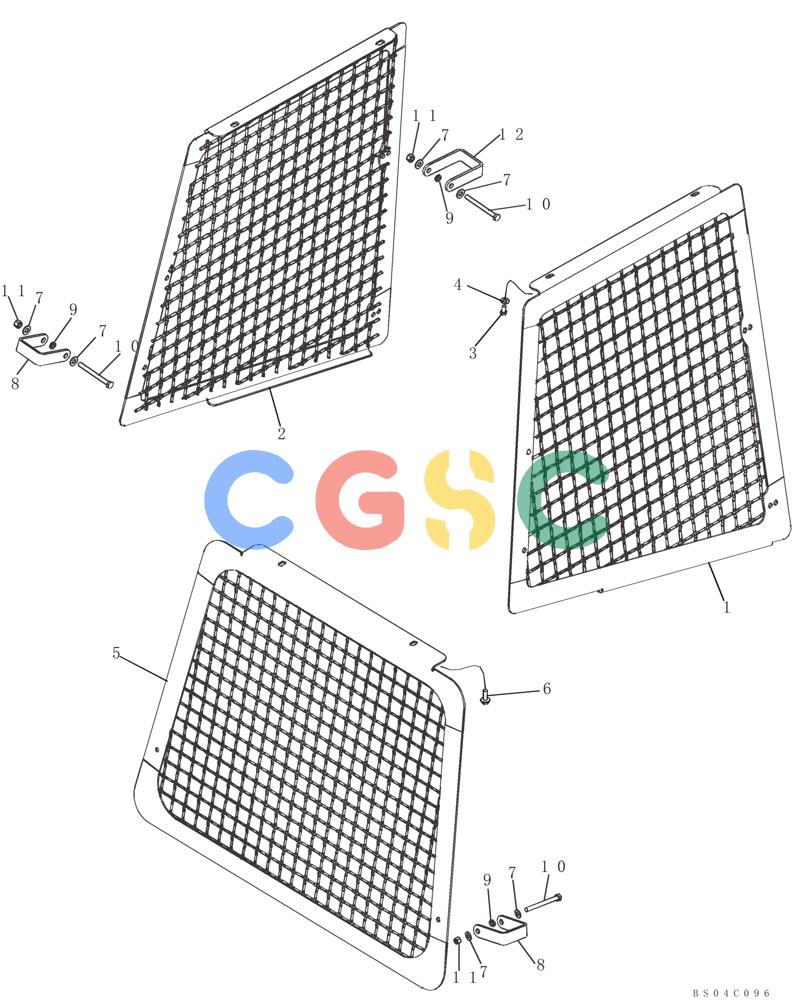

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 87440531 | [1] | SCREEN | BURRight-Hand Side |
| 2. | 87440511 | [1] | SCREEN | BURLeft-Hand Side |
| 3. | 614-10020 | [4] | BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd | CAS Superseded by part number: 43138 |
| 4. | 895-15010 | [4] | WASHER,M11 x 24 x 2 | CAS Superseded by part number: 86625253 |
| 5. | 87439520 | [1] | SCREEN | RACRear |
| 6. | 844-10035 | [2] | BOLT,Hex, M10 x 35mm, Cl 8.8 | CAS Superseded by part number: 86511845 |
| 8. | 87426206 | [8] | CLAMP | BUR2 For Rear Screen, 6 For Side Screen |
| 9. | 829-4410 | [10] | THIN NUT,Thin, M10 x 1.5, Cl 05 | CAS Superseded by part number: 934300R1 |
| 10. | 814-10110 | [10] | BOLT,Hex, M10 x 1.5 x 110mm, Cl 8.8 | CAS Superseded by part number: 86508573 |
| 11. | 832-10410 | [10] | NUT,M10 x 1.5, Cl 8 | CAS Superseded by part number: 190003888452 |
| 12. | 87426207 | [2] | CLAMP | BURSide Screen, Upper Front |
