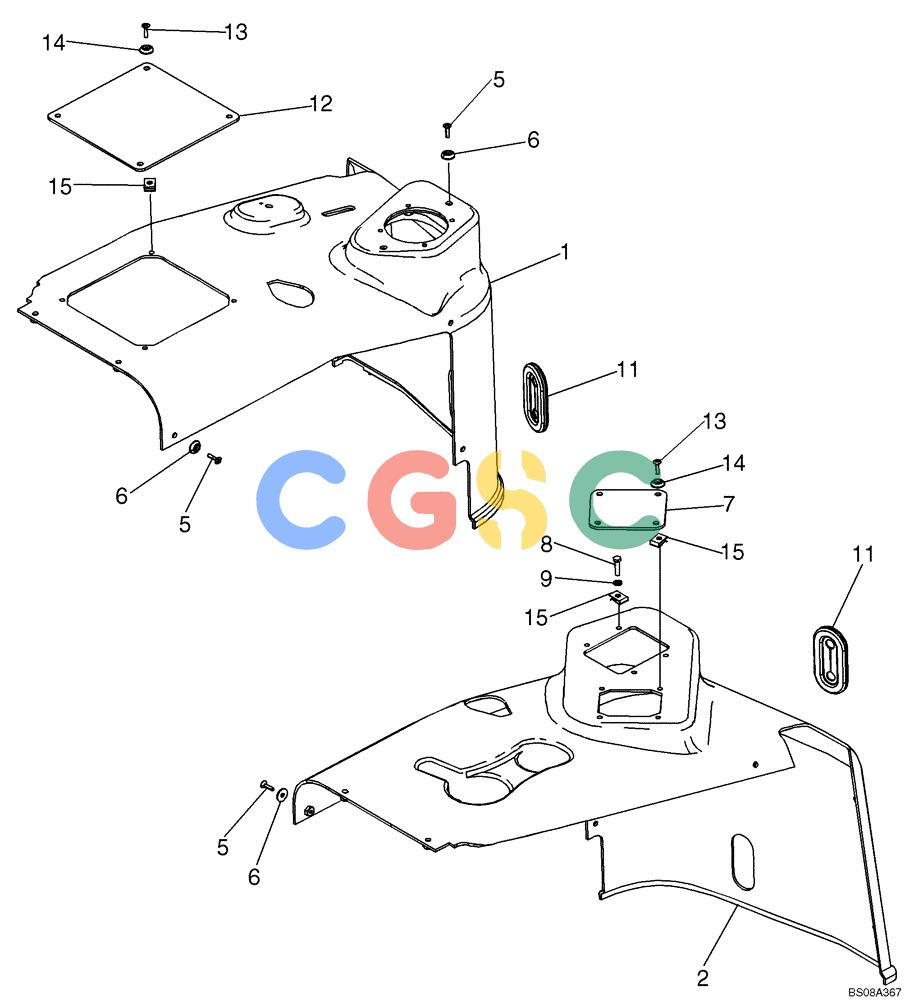

纽荷兰零件查询(D95B) - CRAWLER DOZER TIER 3 (3/08-) (09-21) - CANOPY, ROPS - CONSOLES, SIDE New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
655 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 87550972 | [1] | CONSOLE | BURLeft-Hand Side Console |
| 2. | 87541457 | [1] | CONSOLE | BURRight-Hand Side Console |
| 5. | 87341593 | [16] | SCREW,Oval Hd, Csk, M6 x 20mm, Cl 4.8 | BURM6 x 20 Oval Countersunk, Phillips Head, Black |
| 6. | 79076208 | [17] | WASHER | LECNylon |
| 7. | 87541459 | [1] | PROTECTIVE COVER | BURProtective Auxillary Control Cover |
| 8. | 614-6025 | [4] | BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd | CAS Superseded by part number: 86977786 |
| 9. | 892-11006 | [4] | LOCK WASHER,M6 | CAS Superseded by part number: 86517328 |
| 11. | 76067249 | [2] | SHIELD | LECSeal, Lockout Lever |
| 12. | 87530541 | [1] | COVER PLATE | BURPlate, Cover Diagnostic |
| 15. | 76047274 | [12] | NUT,M6 x 1 | LEC |
